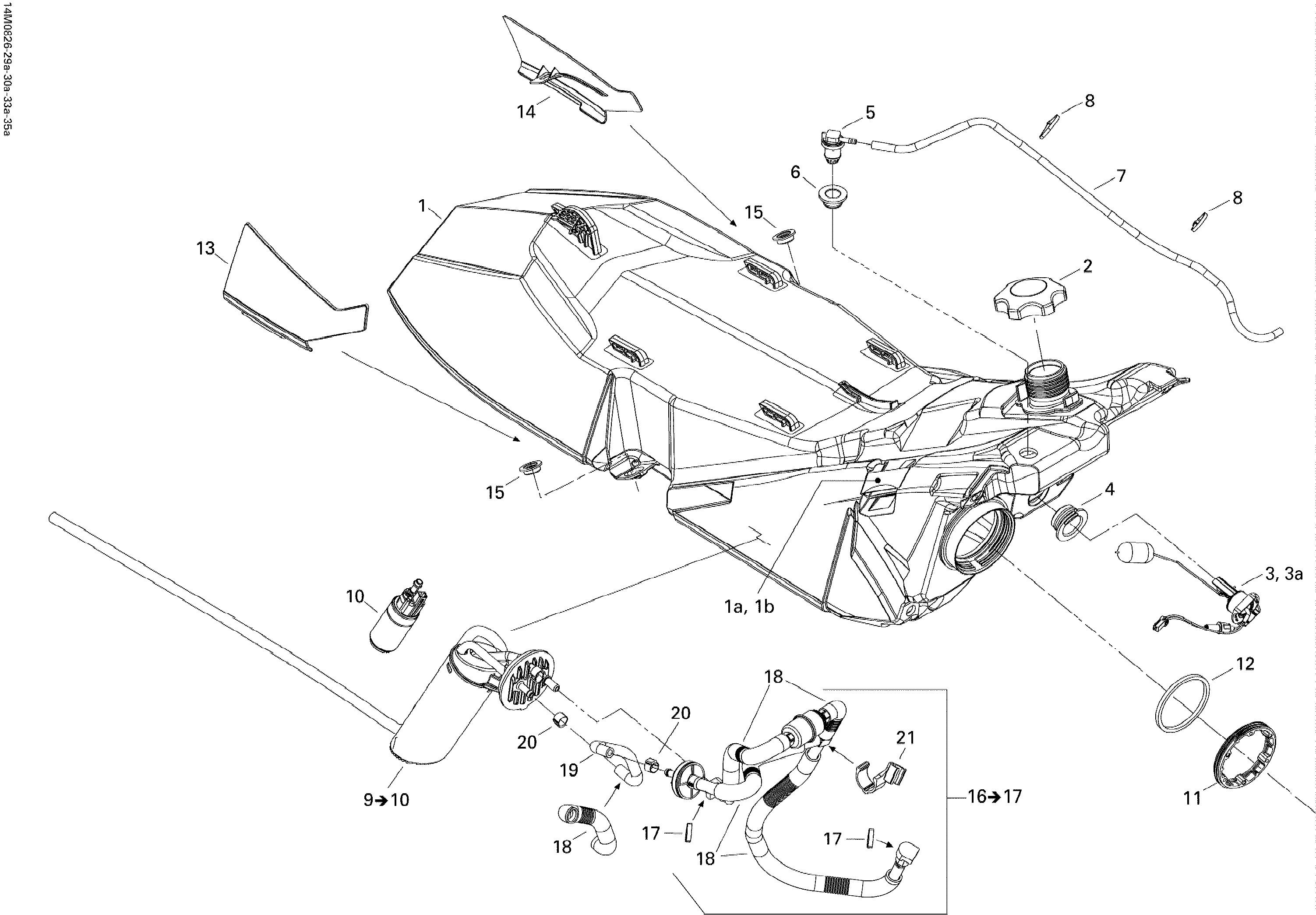

02- Fuel System 600HO SDI для BRP Ski-Doo MX Z ADRENALINE 600 HO SDI - 2008
-
№АртикулНазвание
-
1513033514 Fuel TankFuel Tank
-
1a513033307 RH Hand ClipRH Hand Clip
-
1b513033308 LH Hand ClipLH Hand Clip
-
2513033025 CapCap
-
3513033168 Fuel SensorFuel Sensor
-
3a710001995 Fuel Sensor FuseFuel Sensor Fuse
-
4513033193 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033189 GrommetGrommet
-
7415080200 Polyurethane HosePolyurethane Hose
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9513033152 Fuel Pump Ass'y. Includes 9 to 10Fuel Pump Ass'y. Includes 9 to 10
-
11513033180 RingRing
-
12513033334 GasketGasket
-
13513033418 RH CapRH Cap
-
14513033419 LH CapLH Cap
-
15513033326 Shoulder BushingShoulder Bushing
-
16513033430 Hose. Includes 16 to 17Hose. Includes 16 to 17
-
17513033135 Locking ClipLocking Clip
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033166 HoseHose
-
20293650047 Oetiker ClampOetiker Clamp
-
21513033336 Filter ClipFilter Clip
