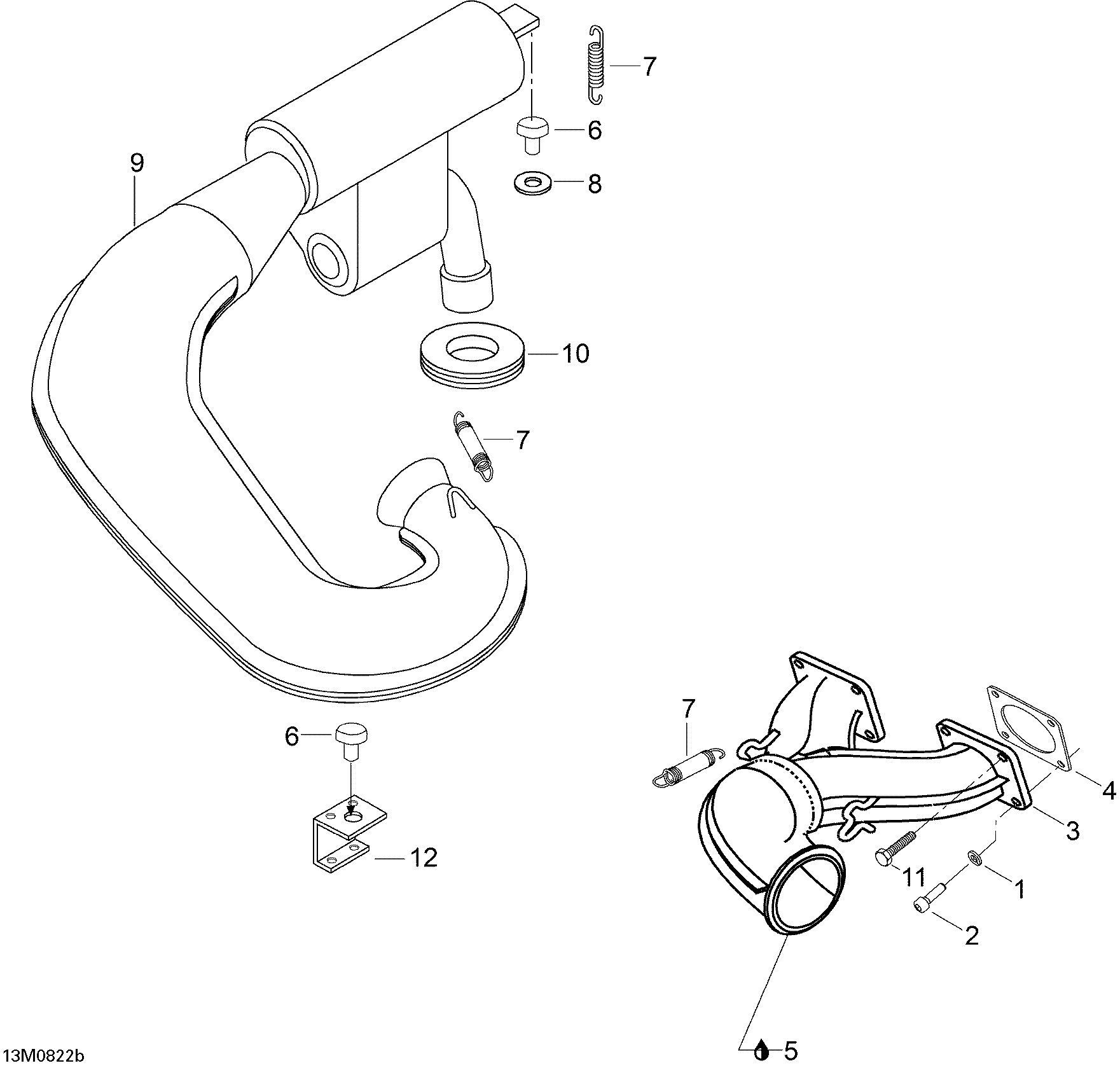

01- Exhaust System WT 600 для BRP Ski-Doo Skandic WT 600 - 2008
-
№АртикулНазвание
-
1234181401 Lock Washer 8 mmLock Washer 8 mm
-
2M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
3M5245177 Exhaust ManifoldExhaust Manifold
-
4420931610 GasketGasket
-
5293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
6514053654 Rubber BumperRubber Bumper
-
7420938795 SpringSpring
-
8M20087 WasherWasher
-
9605155511 Tuned PipeTuned Pipe
-
10570039000 Exhaust GrommetExhaust Grommet
-
11207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
12M5442681 SupportSupport
