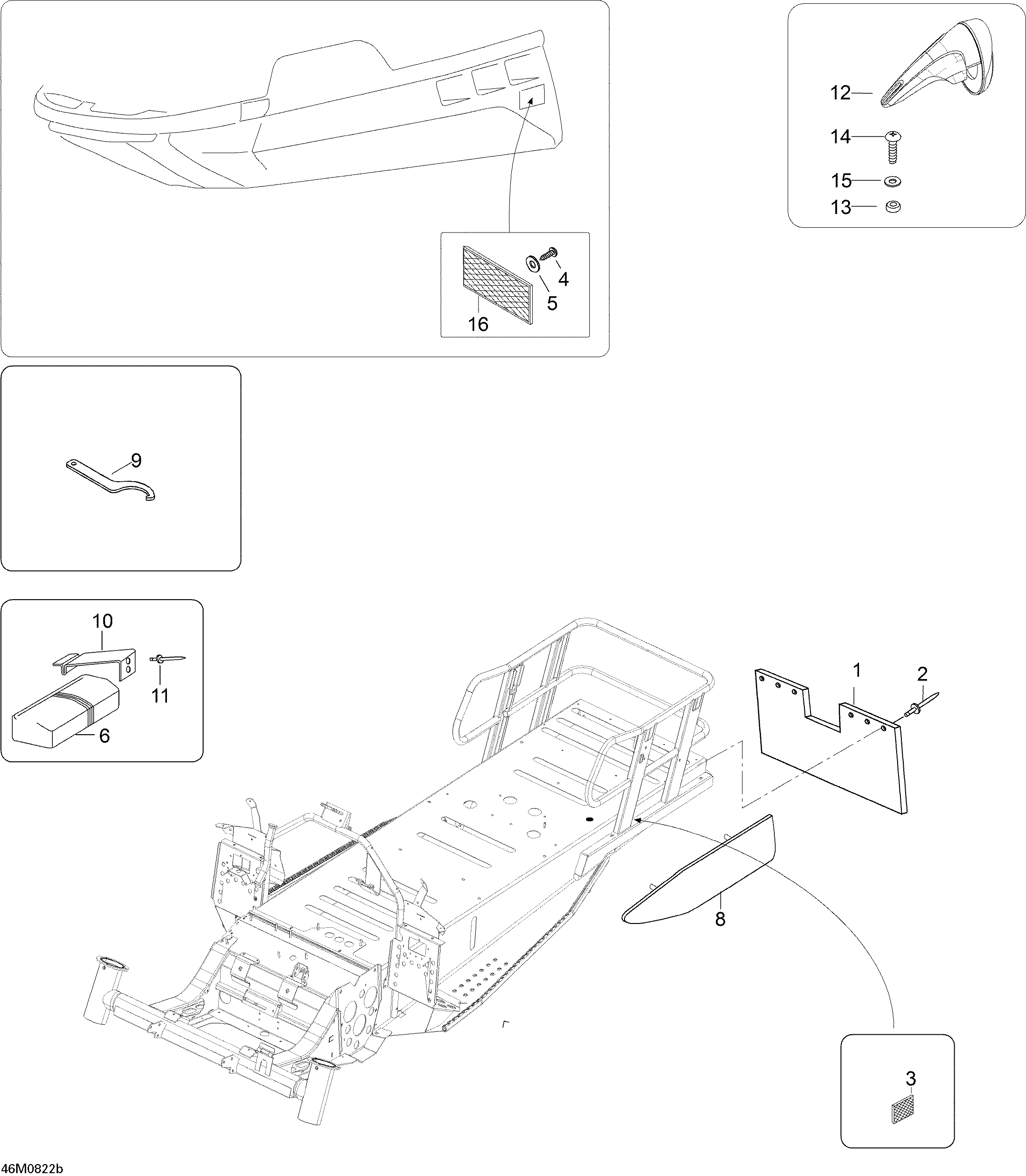

09- Utilities WT 600 для BRP Ski-Doo Skandic WT 600 - 2008
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2M36036 Rivet-BlackRivet-Black
-
3414510100 Reflector, RedReflector, Red
-
4M40070 ScrewScrew
-
5234451418 Lock Serrated Washer 5 mmLock Serrated Washer 5 mm
-
6605350525 Tool KitTool Kit
-
8605354746 LH Side Snow GuardLH Side Snow Guard
-
8605354747 RH Side Snow GuardRH Side Snow Guard
-
9529035582 Adjustment WrenchAdjustment Wrench
-
10M5346728 Spring PlateSpring Plate
-
11M36108 RivetRivet
-
12517303955 Mirror KitMirror Kit
-
13250200025 Washer M5Washer M5
-
14250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
15250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
16414510200 Reflector, AmberReflector, Amber
