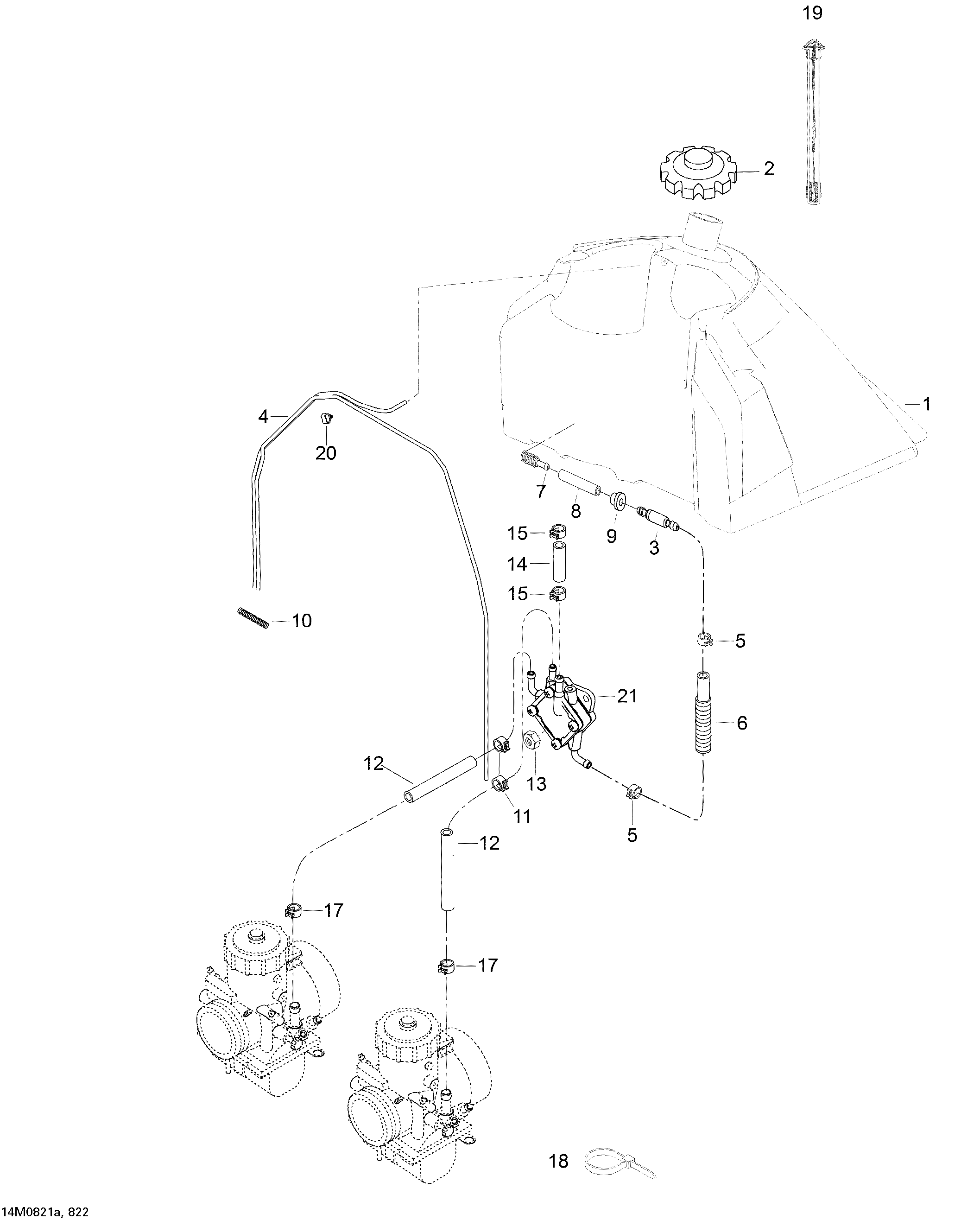

02- Fuel System WT 600 для BRP Ski-Doo Skandic WT 600 - 2008
-
№АртикулНазвание
-
1605154804 Fuel TankFuel Tank
-
2580259400 CapCap
-
3414872700 Male ConnectorMale Connector
-
4M39035 HoseHose
-
5513032923 Tube ClampTube Clamp
-
6M27127 TubingTubing
-
7414872100 Fuel FilterFuel Filter
-
8415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
9570273900 GrommetGrommet
-
10M25003 SpringSpring
-
11414420700 Spring ClipSpring Clip
-
12415080200 Polyurethane HosePolyurethane Hose
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14605355647 Hose 1/4, 350 mmHose 1/4, 350 mm
-
15513032979 Spring ClampSpring Clamp
-
17414415200 Universal Spring ClampUniversal Spring Clamp
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19605351982 Fuel GaugeFuel Gauge
-
20570273900 GrommetGrommet
-
21M19113 Fuel PumpFuel Pump
