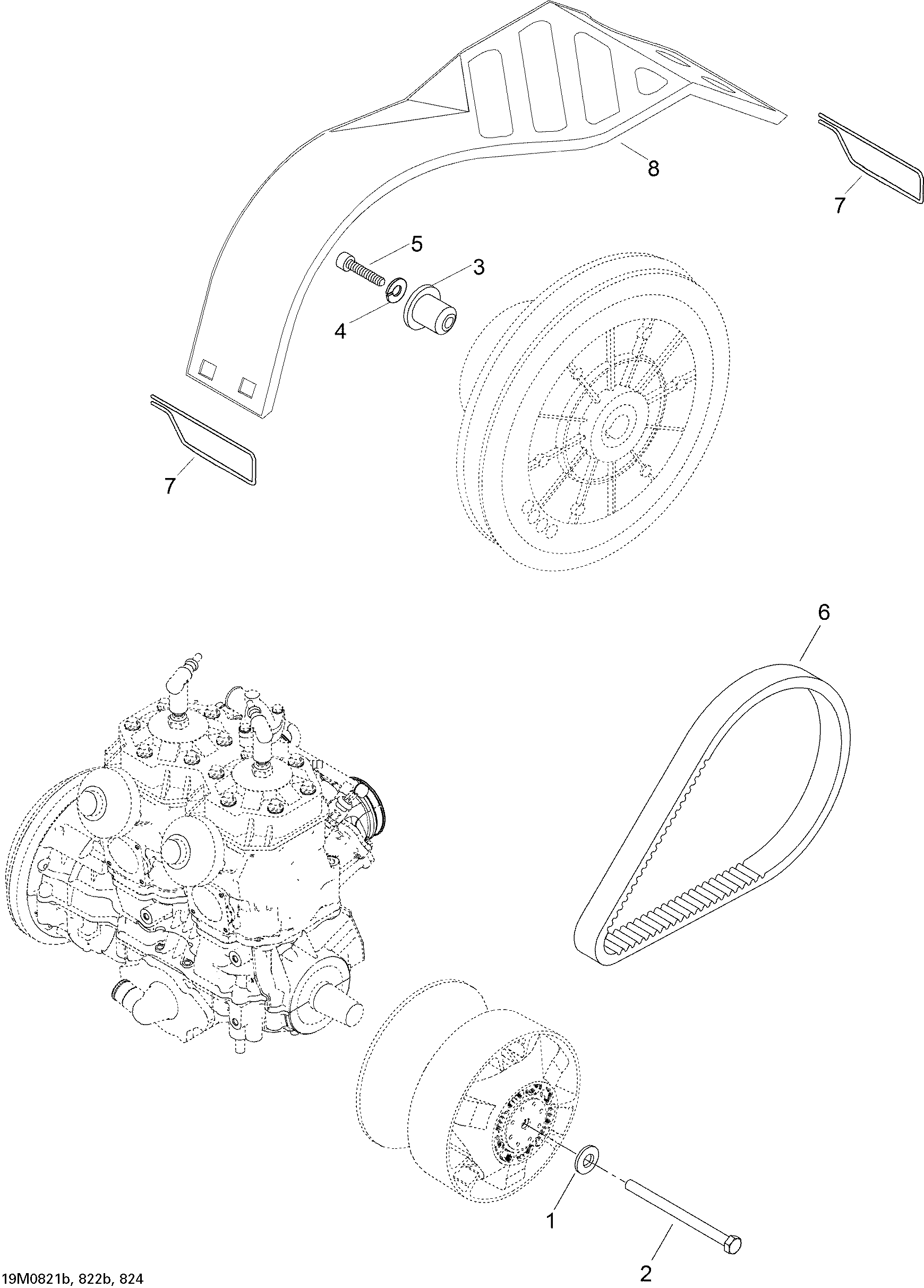

05- Pulley System WT 600 для BRP Ski-Doo Skandic WT 600 - 2008
-
№АртикулНазвание
-
1M20110 Conical Spring WasherConical Spring Washer
-
2417300296 Drive Pulley BoltDrive Pulley Bolt
-
3M5443201 Shaft ExtensionShaft Extension
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
6605348425 Drive BeltDrive Belt
-
7M5442726 PinPin
-
8M5142660 Belt GuardBelt Guard
