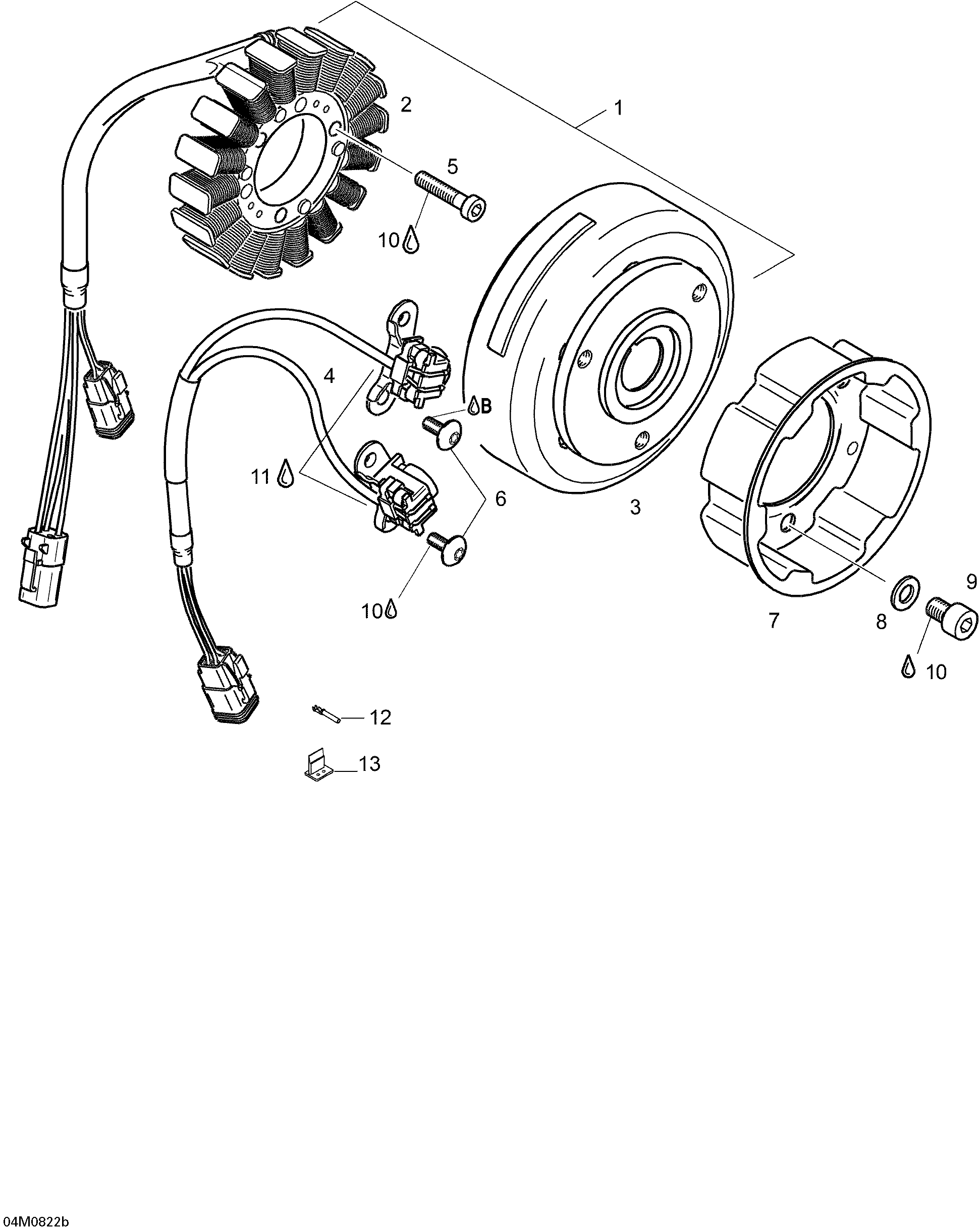

03- Magneto WT 600 для BRP Ski-Doo Skandic WT 600 - 2008
-
№АртикулНазвание
-
2410922993 Stator PlateStator Plate
-
3420889324 FlywheelFlywheel
-
4410922948 Pickup Ass'yPickup Ass'y
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640321 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12278000632 Female TerminalFemale Terminal
-
13409207100 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
