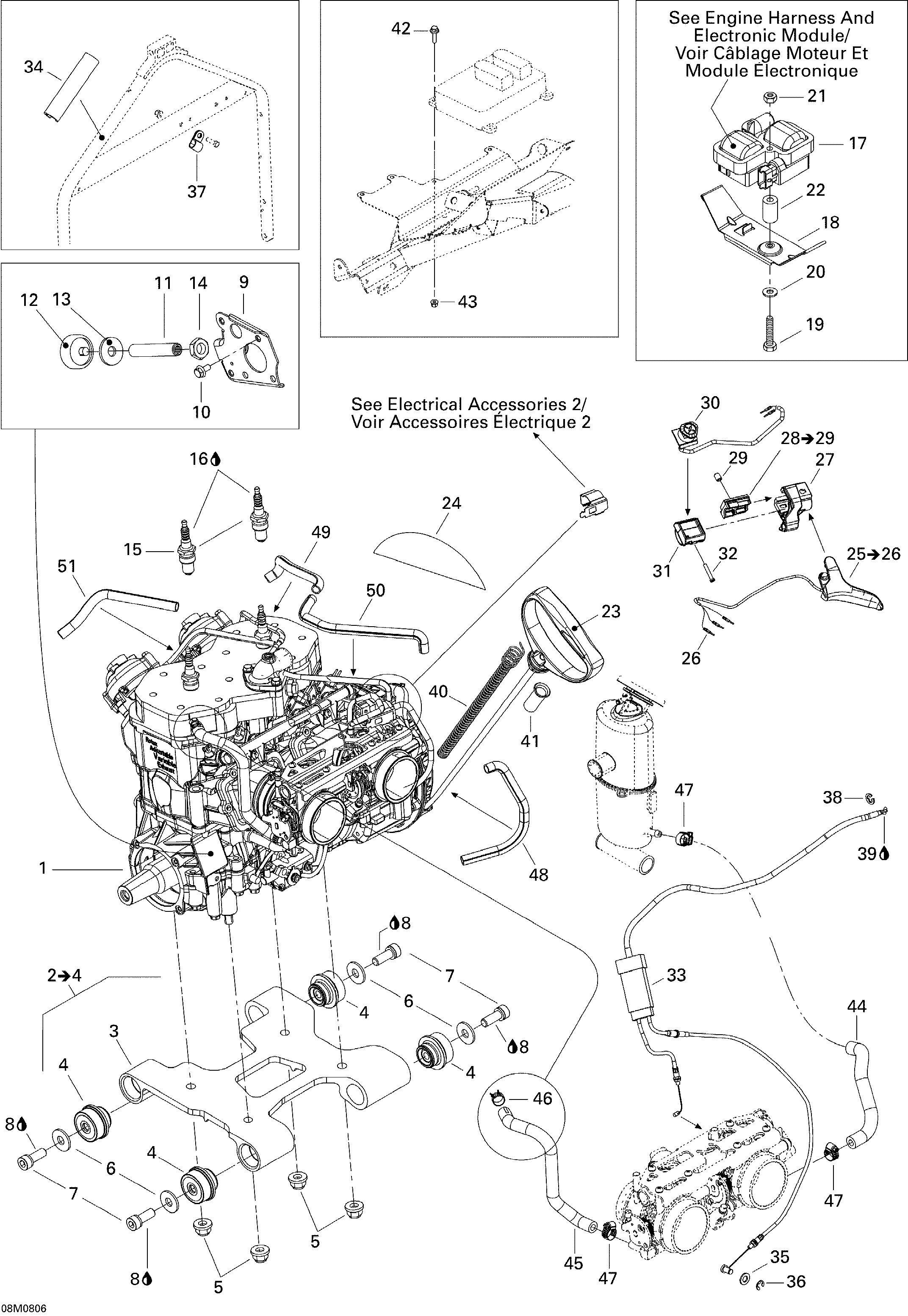

01- Engine для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2008
-
№АртикулНазвание
-
1400509781 Engine 593 H.O. SDI (593 SDI)Engine 593 H.O. SDI (593 SDI)
-
1400509782 Engine 593 H.O. SDI (593 SDI). EuropeEngine 593 H.O. SDI (593 SDI). Europe
-
2512060050 Engine Support Ass'y. Includes 2 to 4Engine Support Ass'y. Includes 2 to 4
-
3512060051 Engine SupportEngine Support
-
4512059691 Rubber MountRubber Mount
-
5233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
6506151251 WasherWasher
-
7235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
8413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
9512059840 PlatePlate
-
10207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
11250500007 Stopper ScrewStopper Screw
-
12512059610 StopperStopper
-
13512059057 WasherWasher
-
14232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
15512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17278001546 Ignition CoilIgnition Coil
-
18512059865 Coil SupportCoil Support
-
19207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
22512059812 SpacerSpacer
-
23572084400 Starter GripStarter Grip
-
24512059893 Reflective SheetReflective Sheet
-
25512060219 Throttle Handle Ass'y. Includes 25 to 26Throttle Handle Ass'y. Includes 25 to 26
-
26515175232 Male TerminalMale Terminal
-
27512060197 Lower HousingLower Housing
-
28512060198 Upper Housing. Includes 28 to 29Upper Housing. Includes 28 to 29
-
29414440800 Set Screw M8 X 10Set Screw M8 X 10
-
30515176690 Kill SwitchKill Switch
-
31515176418 Kill Switch SupportKill Switch Support
-
32250000263 Torx Screw #8-18Torx Screw #8-18
-
33512060086 Throttle CableThrottle Cable
-
34512059750 ProtectorProtector
-
35234081100 Flat Washer 8 mmFlat Washer 8 mm
-
36414753500 CirclipCirclip
-
37293750042 Tie ClampTie Clamp
-
38414274500 CirclipCirclip
-
39293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
40512059535 Rope GuideRope Guide
-
41512059536 TubeTube
-
42207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
43233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
44512059563 Formed HoseFormed Hose
-
45512059990 Formed HoseFormed Hose
-
46513033029 Spring ClampSpring Clamp
-
47293650170 Hose ClampHose Clamp
-
48409901700 Tubing 9 mmTubing 9 mm
-
49409901700 Tubing 9 mmTubing 9 mm
-
50409901700 Tubing 9 mmTubing 9 mm
-
51409901700 Tubing 9 mmTubing 9 mm
