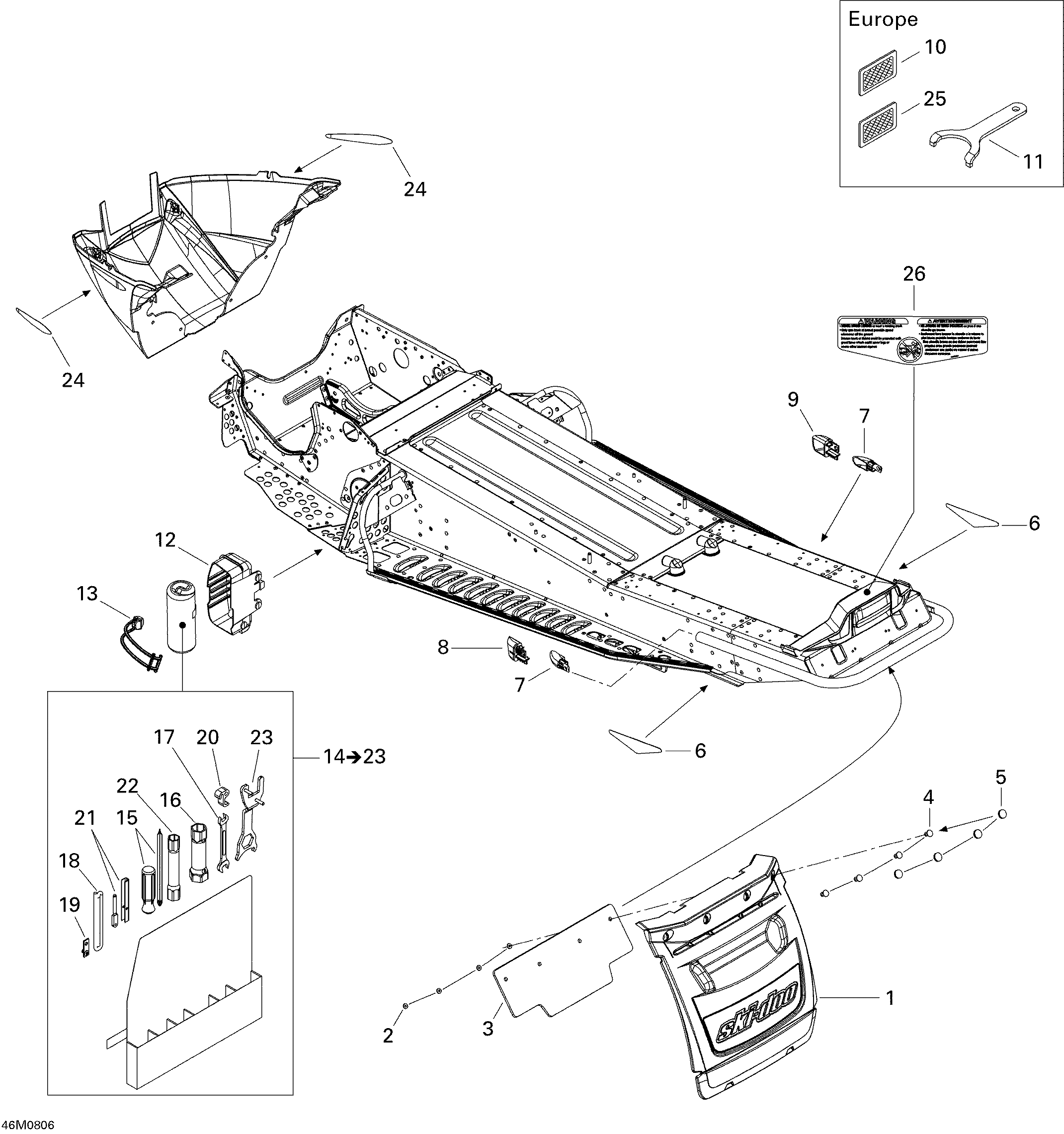

09- Utilities для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2008
-
№АртикулНазвание
-
1520000598 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000488 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000382 Rear ReflectorRear Reflector
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
7520000272 CapCap
-
8520000601 LH Cap. EuropeLH Cap. Europe
-
9520000602 RH Cap. EuropeRH Cap. Europe
-
10520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
11529035582 Adjustment Wrench. EuropeAdjustment Wrench. Europe
-
12520000322 TrunkTrunk
-
13520000528 LatchLatch
-
14529000036 Tool Kit. Includes 14 to 23Tool Kit. Includes 14 to 23
-
15529000004 Driver ScrewDriver Screw
-
16529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
17529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
18412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
19529024400 Rope AdaptorRope Adaptor
-
20529019400 Starter GripStarter Grip
-
21529035501 Spacing ToolSpacing Tool
-
22295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
23520000721 WrenchWrench
-
24415037900 Reflector, White. EuropeReflector, White. Europe
-
25516001336 Front ReflectorFront Reflector
-
26516003034 Warning Label, Track SecurityWarning Label, Track Security
