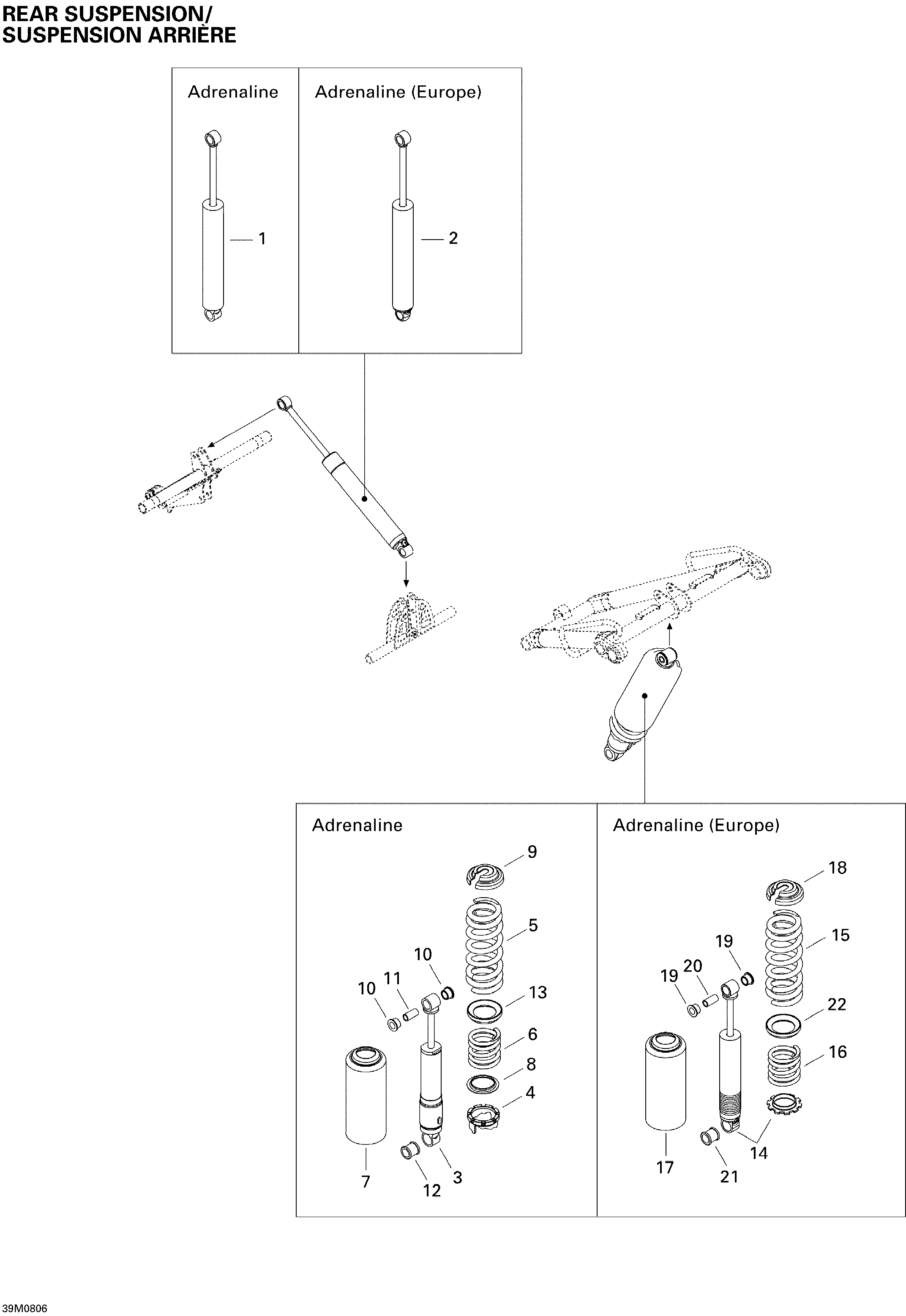

08- Rear Suspension Shocks для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2008
-
№АртикулНазвание
-
1503190977 Rear ShockRear Shock
-
2503191467 Rear Shock. EuropeRear Shock. Europe
-
3503190981 Center ShockCenter Shock
-
4505070150 Adjustment CamAdjustment Cam
-
5503191327 SpringSpring
-
6503191343 SpringSpring
-
7503188930 ProtectorProtector
-
8503191872 Spring GuideSpring Guide
-
9503191611 Spring StopperSpring Stopper
-
10503189117 CushionCushion
-
11503189282 BushingBushing
-
12503189271 CushionCushion
-
13503191281 Spring SpacerSpring Spacer
-
14503190662 Center Shock. EuropeCenter Shock. Europe
-
15503191327 Spring. EuropeSpring. Europe
-
16503191343 Spring. EuropeSpring. Europe
-
17503188930 Protector. EuropeProtector. Europe
-
18503191611 Spring Stopper. EuropeSpring Stopper. Europe
-
19503189117 Cushion. EuropeCushion. Europe
-
20503189282 Bushing. EuropeBushing. Europe
-
21503189271 Cushion. EuropeCushion. Europe
-
22503191281 Spring Spacer. EuropeSpring Spacer. Europe
