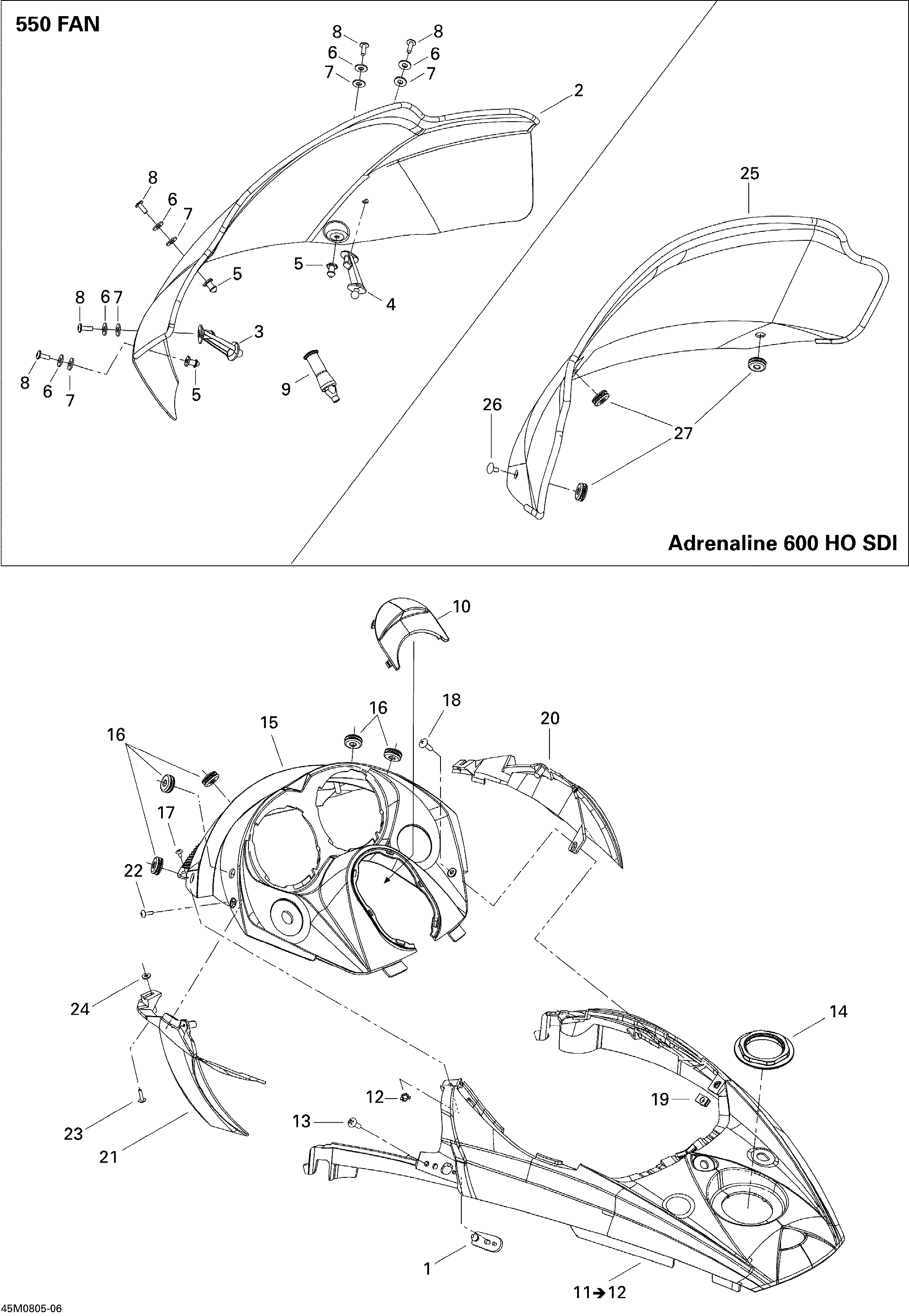

09- Windshield And Console для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2008
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
10517302592 Console CapConsole Cap
-
11517303066 Center Console. Includes 11 to 12Center Console. Includes 11 to 12
-
12250100030 T-Nut, M4T-Nut, M4
-
13250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
14517302575 Console NutConsole Nut
-
15517303538 Indicator SupportIndicator Support
-
17250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
20517302546 RH Air DeflectorRH Air Deflector
-
21517302547 LH Air DeflectorLH Air Deflector
-
22250000294 Torx ScrewTorx Screw
-
23250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
24234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
25517303738 Low WindshieldLow Windshield
-
26293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
27517302841 GrommetGrommet
