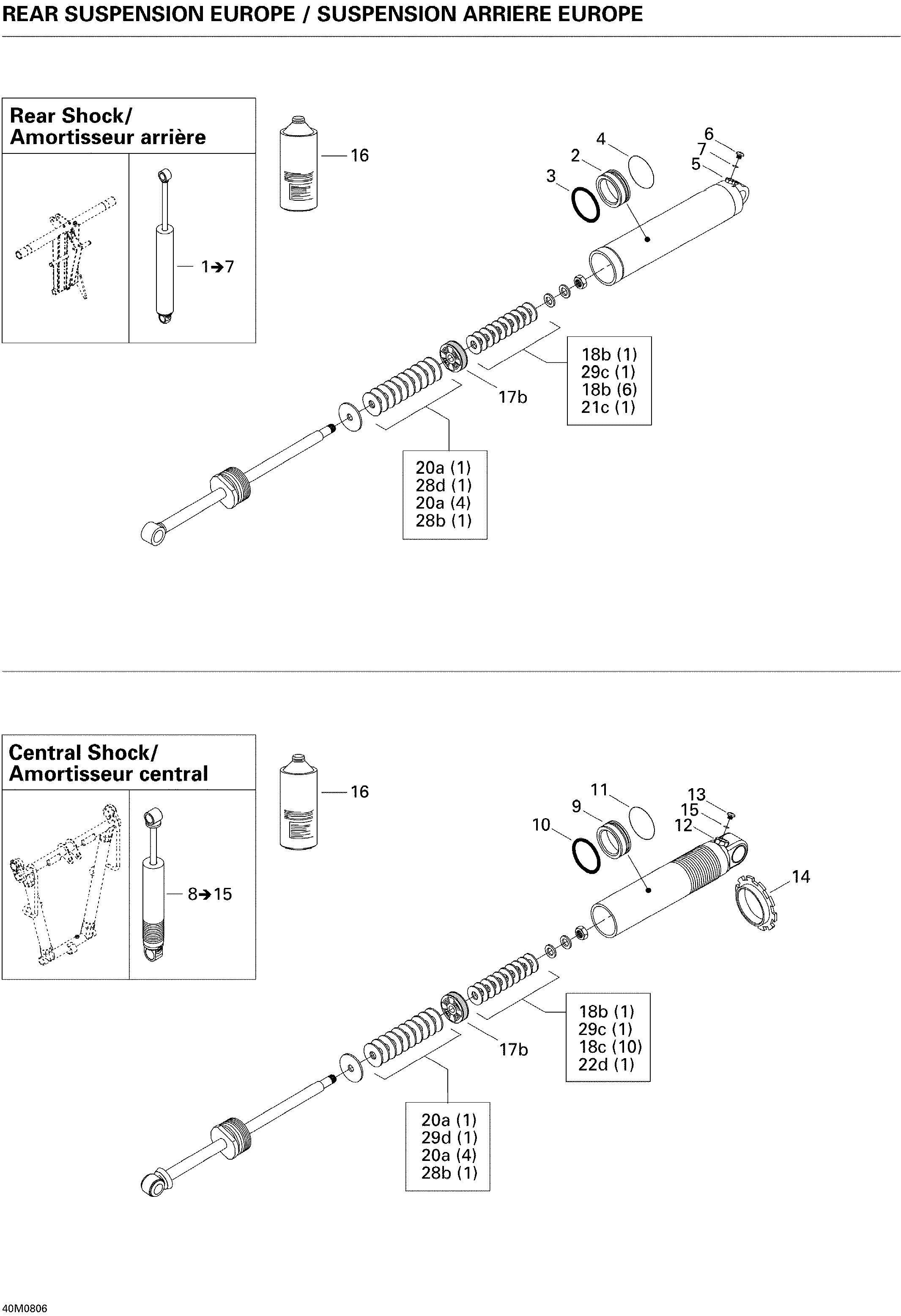

08- Take Apart Shock, Rear Europe для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2008
-
№АртикулНазвание
-
1503191467 Rear Shock. Includes 1 to 7Rear Shock. Includes 1 to 7
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8503190662 Center Shock. Includes 8 to 15Center Shock. Includes 8 to 15
-
9503189309 Free PistonFree Piston
-
10414888312 O-RingO-Ring
-
11503189308 Piston RingPiston Ring
-
12505070398 Air Valve RingAir Valve Ring
-
13505070399 ScrewScrew
-
14414888316 Spring CollarSpring Collar
-
15505070400 O-RingO-Ring
-
16293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
17c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
17g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
18a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
18b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
18c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
20a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
20b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
23D414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
24b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
24c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
26b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
26c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
28a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
28b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
28c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
28D415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
29b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
32a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
32b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
32d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
