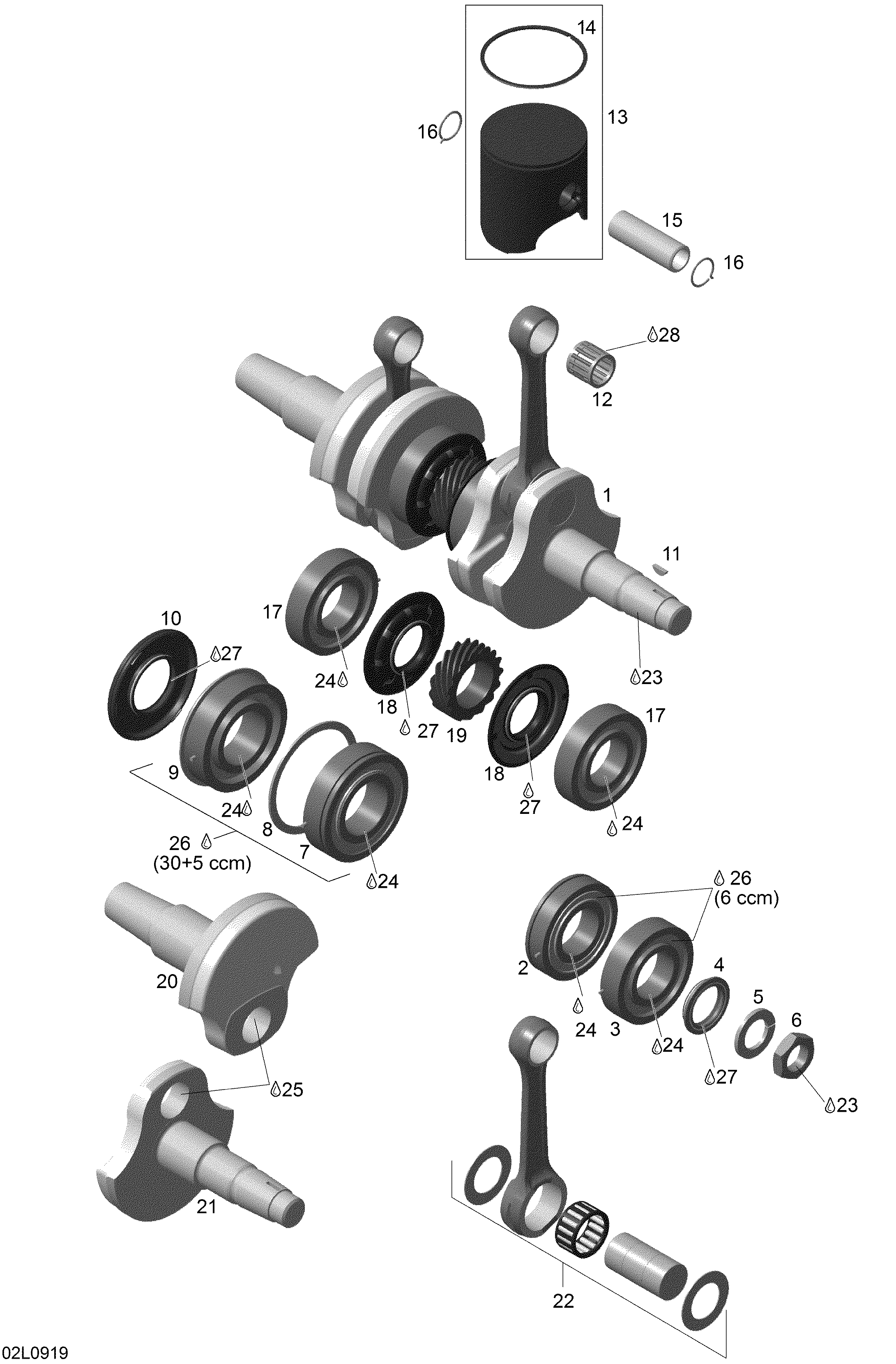

01- Crankshaft And Pistons для BRP Ski-Doo Expedition TUV 600 H.O. SDI REV-XU - 2009
-
№АртикулНазвание
-
1420890951 Crankshaft Ass'yCrankshaft Ass'y
-
2420832638 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931793 Oil SealOil Seal
-
5420945759 Lock WasherLock Washer
-
6420842239 Hex. Nut M22Hex. Nut M22
-
7420832608 Ball BearingBall Bearing
-
8420926190 WasherWasher
-
9420832700 Ball BearingBall Bearing
-
10420931285 Oil SealOil Seal
-
11420246015 Woodruff KeyWoodruff Key
-
12420832445 Needle BearingNeedle Bearing
-
13420892386 Piston Ass'y With Rings, 71.89 mmPiston Ass'y With Rings, 71.89 mm
-
14420815295 Semi-Trapez RingSemi-Trapez Ring
-
15420916411 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
20420818709 Crankshaft PTOCrankshaft PTO
-
21420819232 Crankshaft MAGCrankshaft MAG
-
22420684653 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420684654 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
26413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
-
27420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
28413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
