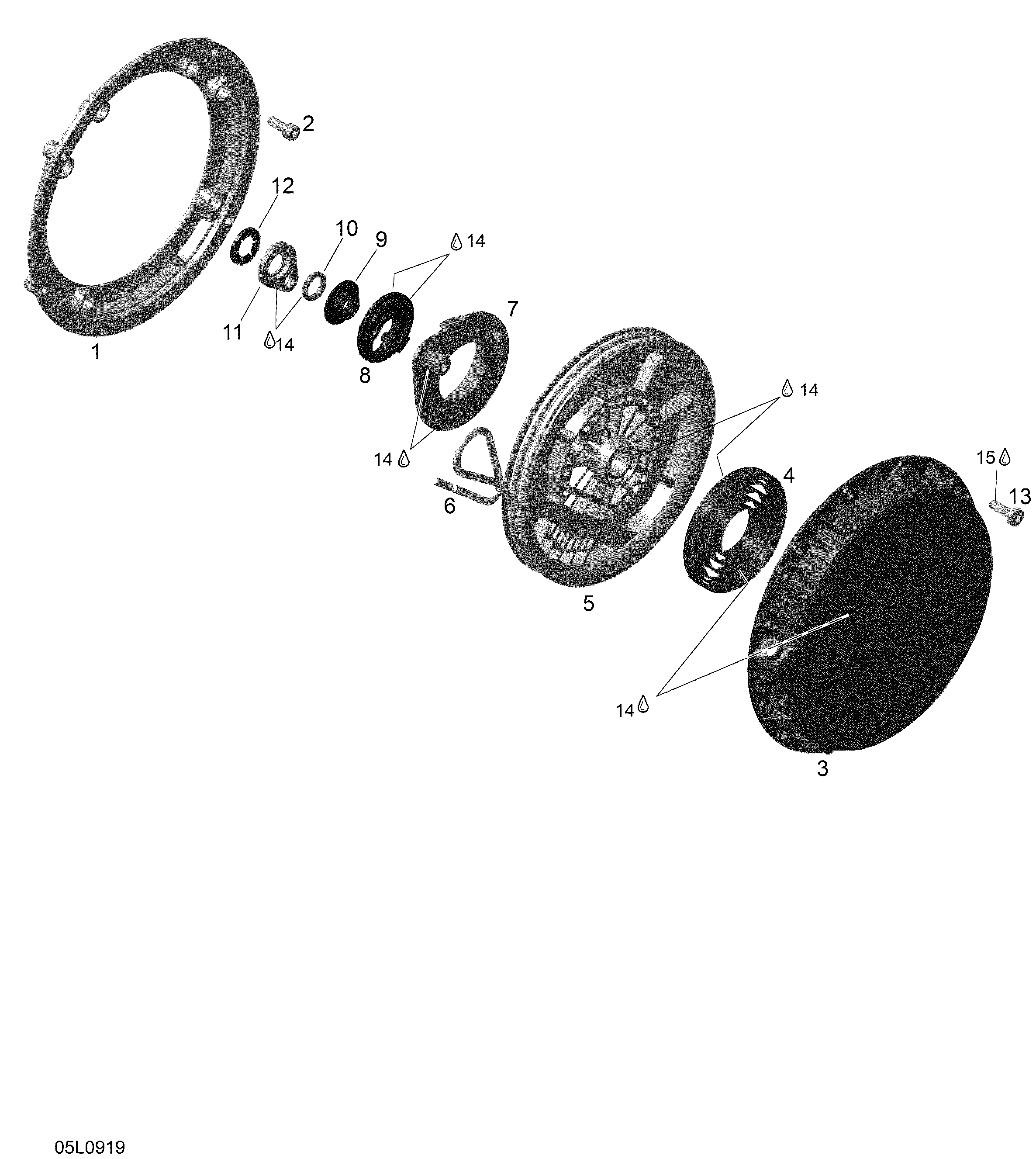

04- Rewind Starter для BRP Ski-Doo Expedition TUV 600 H.O. SDI REV-XU - 2009
-
№АртикулНазвание
-
1420810868 Flange ConnectorFlange Connector
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
3420889765 Rewind Starter Ass'yRewind Starter Ass'y
-
3420910252 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852288 Rope SheaveRope Sheave
-
6412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
7420852297 PawlPawl
-
8420852308 Pawl LockPawl Lock
-
9420847925 Stage SleeveStage Sleeve
-
10420250407 O-RingO-Ring
-
11420852520 Lock RingLock Ring
-
12420845560 Locking ElementLocking Element
-
13420941256 Hex. Collar ScrewHex. Collar Screw
-
14420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
