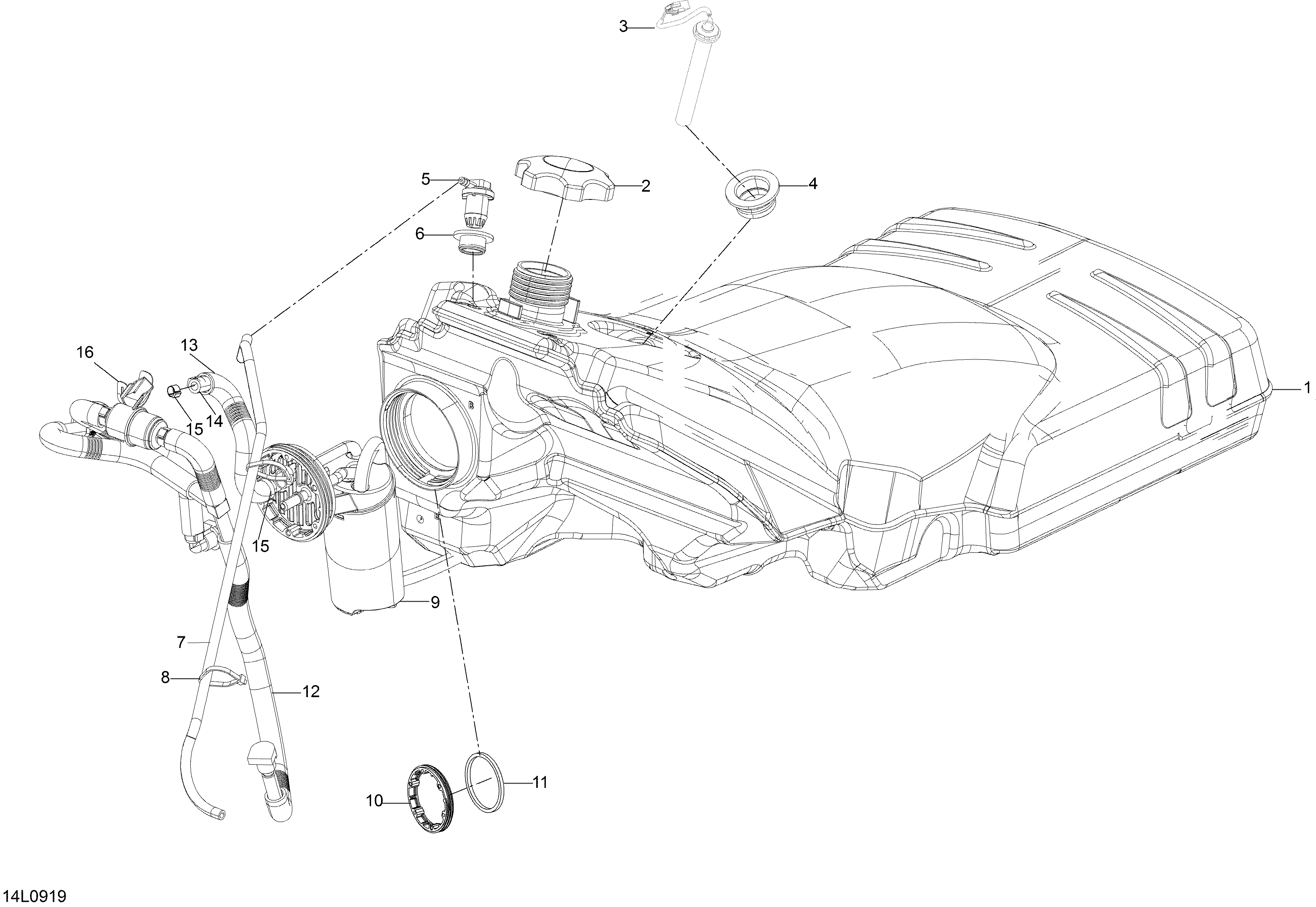

02- Fuel System для BRP Ski-Doo Expedition TUV 600 H.O. SDI REV-XU - 2009
-
№АртикулНазвание
-
1513033386 Fuel TankFuel Tank
-
2513033025 CapCap
-
3513033538 Fuel SensorFuel Sensor
-
4293720058 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033189 GrommetGrommet
-
7415080200 Polyurethane HosePolyurethane Hose
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9513033508 Fuel PumpFuel Pump
-
10513033180 RingRing
-
11513033334 GasketGasket
-
12513033430 HoseHose
-
13415080000 Tubing 16 mmTubing 16 mm
-
14513033544 HoseHose
-
15293650047 Oetiker ClampOetiker Clamp
-
16513033336 Filter ClipFilter Clip
