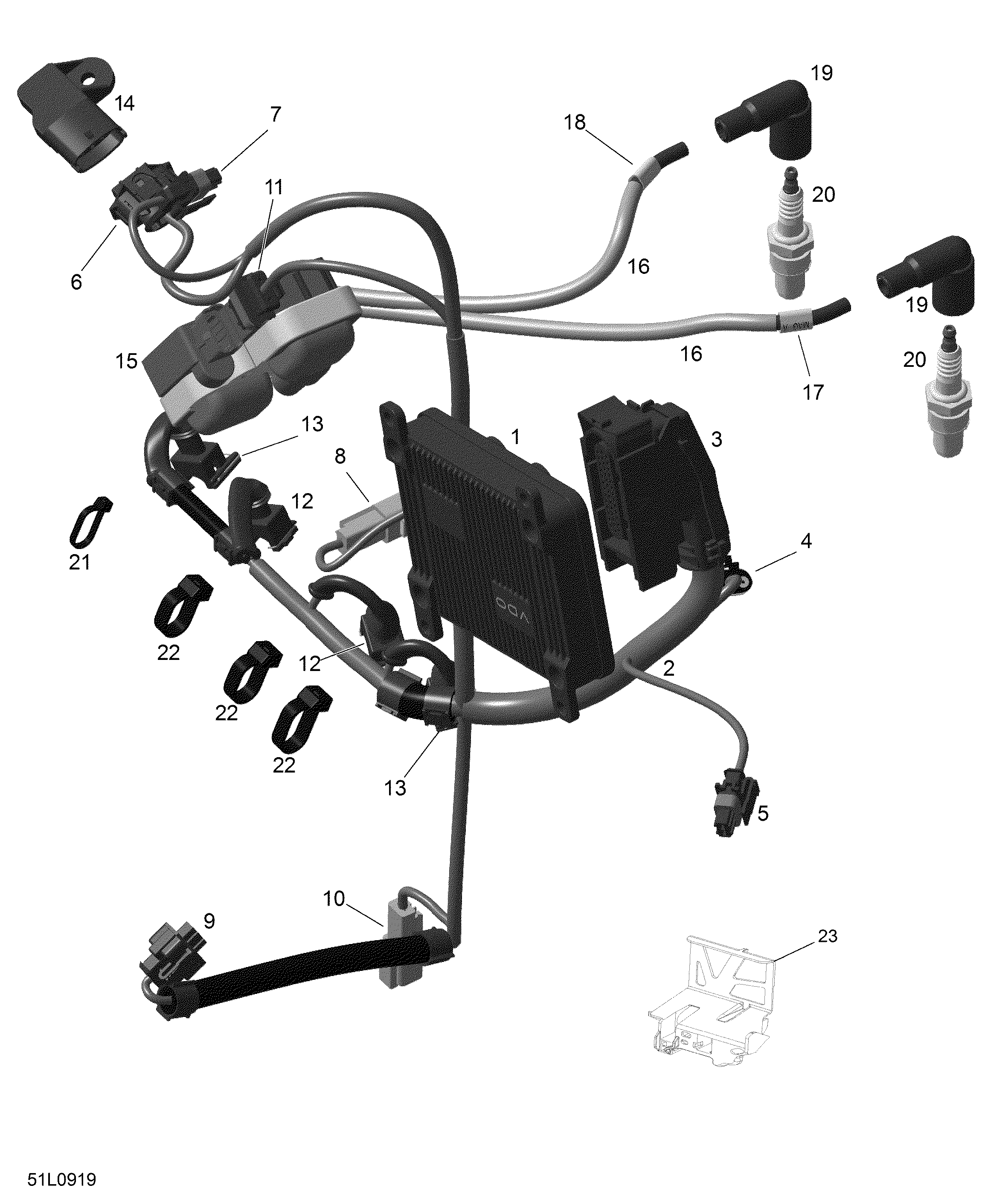

10- Engine Harness And Electronic Module для BRP Ski-Doo Expedition TUV 600 H.O. SDI REV-XU - 2009
-
№АртикулНазвание
-
1420665874 Electronic BoxElectronic Box
-
2420665450 Engine Wiring Harness Ass'yEngine Wiring Harness Ass'y
-
3420664450 ECM ConnectorECM Connector
-
14707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
15278001546 Ignition CoilIgnition Coil
-
16420664302 Spark Plug Cable, 190 mmSpark Plug Cable, 190 mm
-
17420660632 Sleeve, MAG SideSleeve, MAG Side
-
18420660630 Sleeve, PTO SideSleeve, PTO Side
-
19278000237 Spark Plug CapSpark Plug Cap
-
20512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
21420866714 Tie RapTie Rap
-
22420866716 Tie-RapTie-Rap
