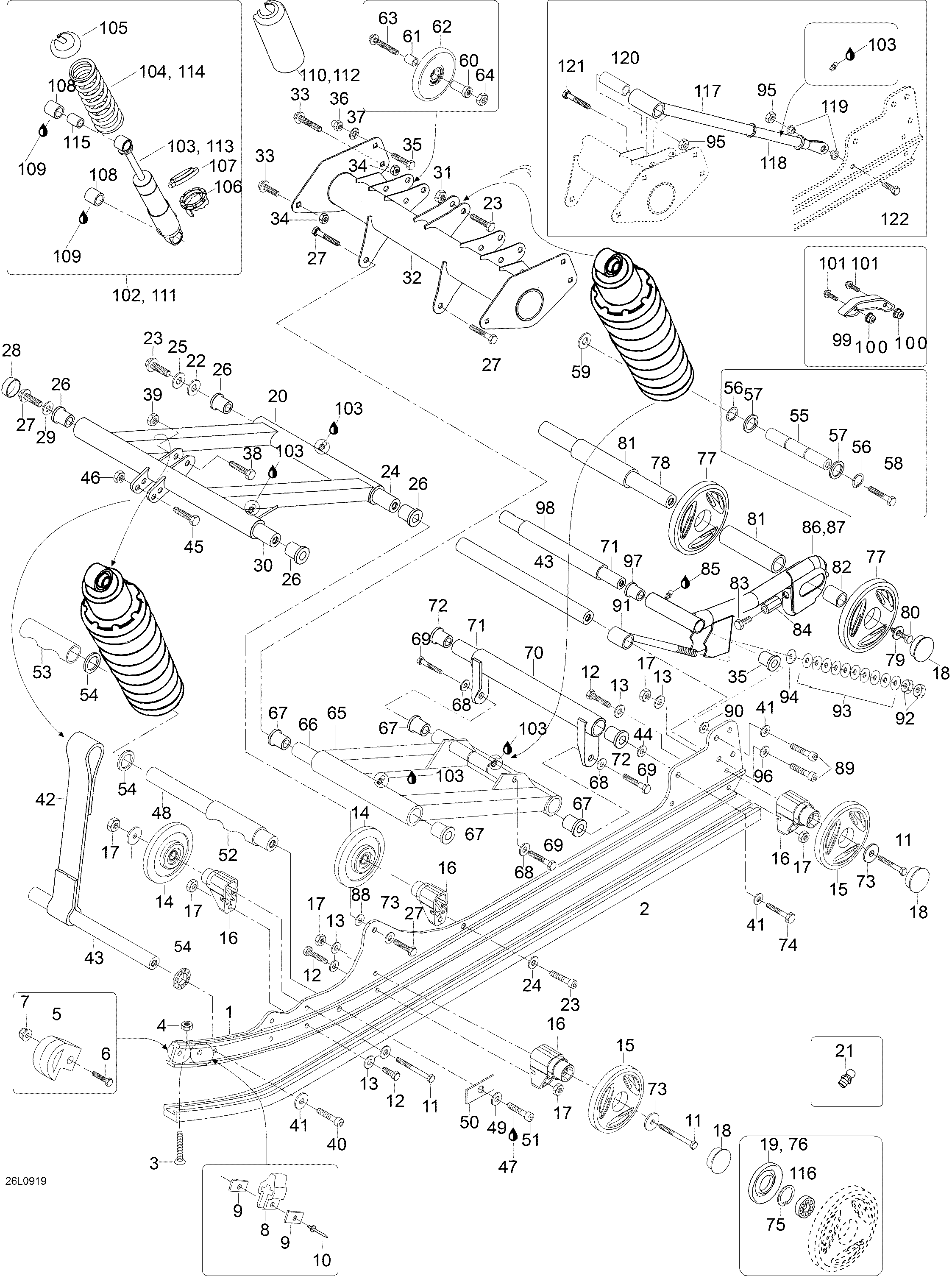

08- Rear Suspension для BRP Ski-Doo Expedition TUV 600 H.O. SDI REV-XU - 2009
-
№АртикулНазвание
-
1503191837 RunnerRunner
-
2503192021 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9503191273 WasherWasher
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
12207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
13503191820 Wheel Cup M6Wheel Cup M6
-
15503191312 Wheel 141 With Pattern Ass'y, YellowWheel 141 With Pattern Ass'y, Yellow
-
16503191833 SupportSupport
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18570063600 Wheel CapWheel Cap
-
19503190434 Labyrinth SealLabyrinth Seal
-
20M5147672 Front ArmFront Arm
-
21408200700 Grease FittingGrease Fitting
-
22512056700 Lock WasherLock Washer
-
23207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
24M5347713 ShaftShaft
-
25M20116 WasherWasher
-
26M31024 Slide BearingSlide Bearing
-
27207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
28M5448025 CapCap
-
29250200005 Conical Spring Washer M12Conical Spring Washer M12
-
30605348606 ShaftShaft
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32503191743 Rear BeamRear Beam
-
34232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
35207781644 Carriage Bolt M8 x 16Carriage Bolt M8 x 16
-
36232381413 Hex. Domed Nut DIN.1587Hex. Domed Nut DIN.1587
-
38207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
39232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
40205004544 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
41234001410 Flat Washer 10 mmFlat Washer 10 mm
-
42503192033 Strap StopperStrap Stopper
-
43M5347717 ShaftShaft
-
44M4181158 WasherWasher
-
45207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
46232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
47293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
48M5347726 ShaftShaft
-
49M20068 Lock WasherLock Washer
-
50M5447940 Support PlateSupport Plate
-
51205004547 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
52M5347718 LimiterLimiter
-
53M5346649 SleeveSleeve
-
54M31013 ShimShim
-
55605451897 Rearshock ShaftRearshock Shaft
-
56293370056 Circlip 20X1.75 DIN471Circlip 20X1.75 DIN471
-
57M31091 ShimShim
-
58207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
59M20068 Lock WasherLock Washer
-
60503192085 Idler Wheel SleeveIdler Wheel Sleeve
-
61503192086 Idler Wheel SleeveIdler Wheel Sleeve
-
62503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
63207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
64232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
65605349313 Rear Arm Weld LightRear Arm Weld Light
-
66M5346865 ShaftShaft
-
67M31027 Slide BearingSlide Bearing
-
68234001410 Flat Washer 10 mmFlat Washer 10 mm
-
69207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
70M5347668 Welded Rear ArmWelded Rear Arm
-
71M5347713 ShaftShaft
-
72M31024 Slide BearingSlide Bearing
-
73M20116 WasherWasher
-
74207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
75512056700 Lock WasherLock Washer
-
76570063600 Wheel CapWheel Cap
-
77503191109 Wheel 165 With Pattern Ass'y, YellowWheel 165 With Pattern Ass'y, Yellow
-
78503191408 Rear AxleRear Axle
-
79503190439 WasherWasher
-
80250000019 Hex. Screw With NylonHex. Screw With Nylon
-
81503192047 SpacerSpacer
-
82503192048 SpacerSpacer
-
83230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
84605633002 SpacerSpacer
-
86503192088 LH ExtensionLH Extension
-
87503192089 RH ExtensionRH Extension
-
88M20116 WasherWasher
-
89205004547 Socket Head Screw DIN 912Socket Head Screw DIN 912
-
90512056700 Lock WasherLock Washer
-
91M5447373 Adjuster Bolt EyeAdjuster Bolt Eye
-
92232006414 Hex. Nut M10Hex. Nut M10
-
93M25004 Spring PlateSpring Plate
-
94234002410 Flat Washer 10 mmFlat Washer 10 mm
-
95233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
96234001410 Flat Washer 10 mmFlat Washer 10 mm
-
97M31024 Slide BearingSlide Bearing
-
98605448429 SleeveSleeve
-
99M5343191 ProtectorProtector
-
100233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
101207764044 Bolt Carriage DIN.603Bolt Carriage DIN.603
-
102503191850 Shock Rear ArmShock Rear Arm
-
104503192111 Spring 255 MM-65 N/MMSpring 255 MM-65 N/MM
-
105M230076 Spring StopperSpring Stopper
-
106505070150 Adjustment CamAdjustment Cam
-
107503191872 Spring GuideSpring Guide
-
108M31094 SleeveSleeve
-
109M32161 Glue Loctite 641/ 50mlGlue Loctite 641/ 50ml
-
110M5346754 Shock ProtectorShock Protector
-
111503191897 Center ShockCenter Shock
-
114503191848 SpringSpring
-
115M5446652 SleeveSleeve
-
116293350055 Ball BearingBall Bearing
-
117M5347851 TubeTube
-
118M5347852 ShaftShaft
-
119M5447853 InsertInsert
-
120M5447848 SleeveSleeve
-
121207086044 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
122207103544 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
123233601416 Elastic Locking Nut M10Elastic Locking Nut M10
