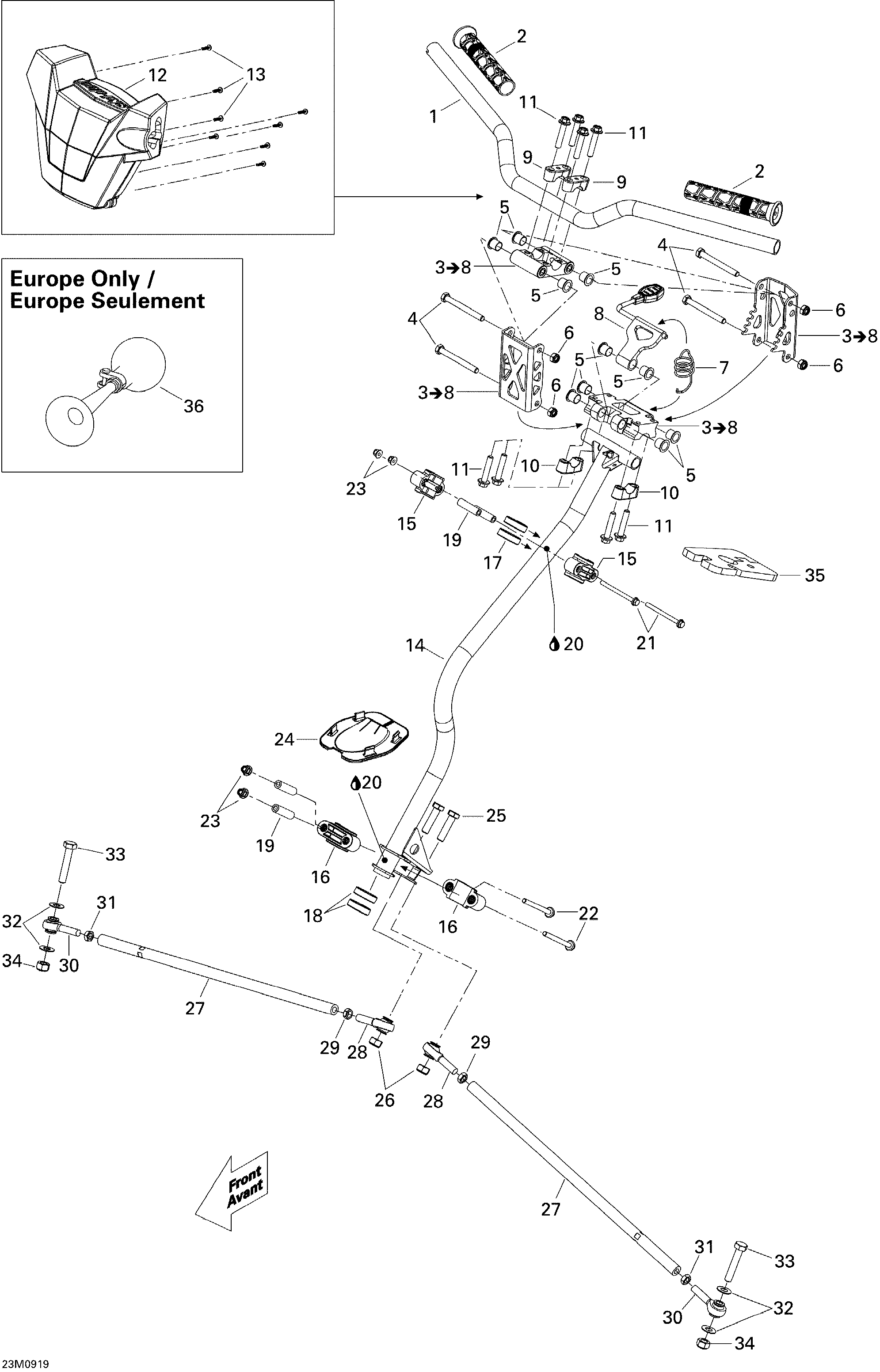

07- Steering для BRP Ski-Doo GTX SE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1506152304 Handle BarHandle Bar
-
2506152424 GripGrip
-
3506152197 Adjustable Handlebar. Includes 3 to 8Adjustable Handlebar. Includes 3 to 8
-
4207088544 Hex. Screw M8 X 85Hex. Screw M8 X 85
-
5506152434 CushionCushion
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7506152184 SpringSpring
-
8506152411 Handle Ass'yHandle Ass'y
-
9506152394 Upper Steering SupportUpper Steering Support
-
10506152395 Lower Steering SupportLower Steering Support
-
11250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
12506152330 Steering PaddingSteering Padding
-
13250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
14506152310 Main TubeMain Tube
-
15506152219 Upper Half HousingUpper Half Housing
-
16506152217 Lower Half HousingLower Half Housing
-
17506152292 Upper Vibration RingUpper Vibration Ring
-
18506152218 Lower Vibration RingLower Vibration Ring
-
19506152297 Housing BushingHousing Bushing
-
20219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
21207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
22207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
23233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
24506152163 PlatePlate
-
25207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
27506152095 Tie RodTie Rod
-
28506152081 LH Thread Ball JointLH Thread Ball Joint
-
29250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
30506152019 RH Thread Ball JointRH Thread Ball Joint
-
31732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
32506152194 WasherWasher
-
33207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35506152407 CushionCushion
-
36549011291 Horn. EuropeHorn. Europe
