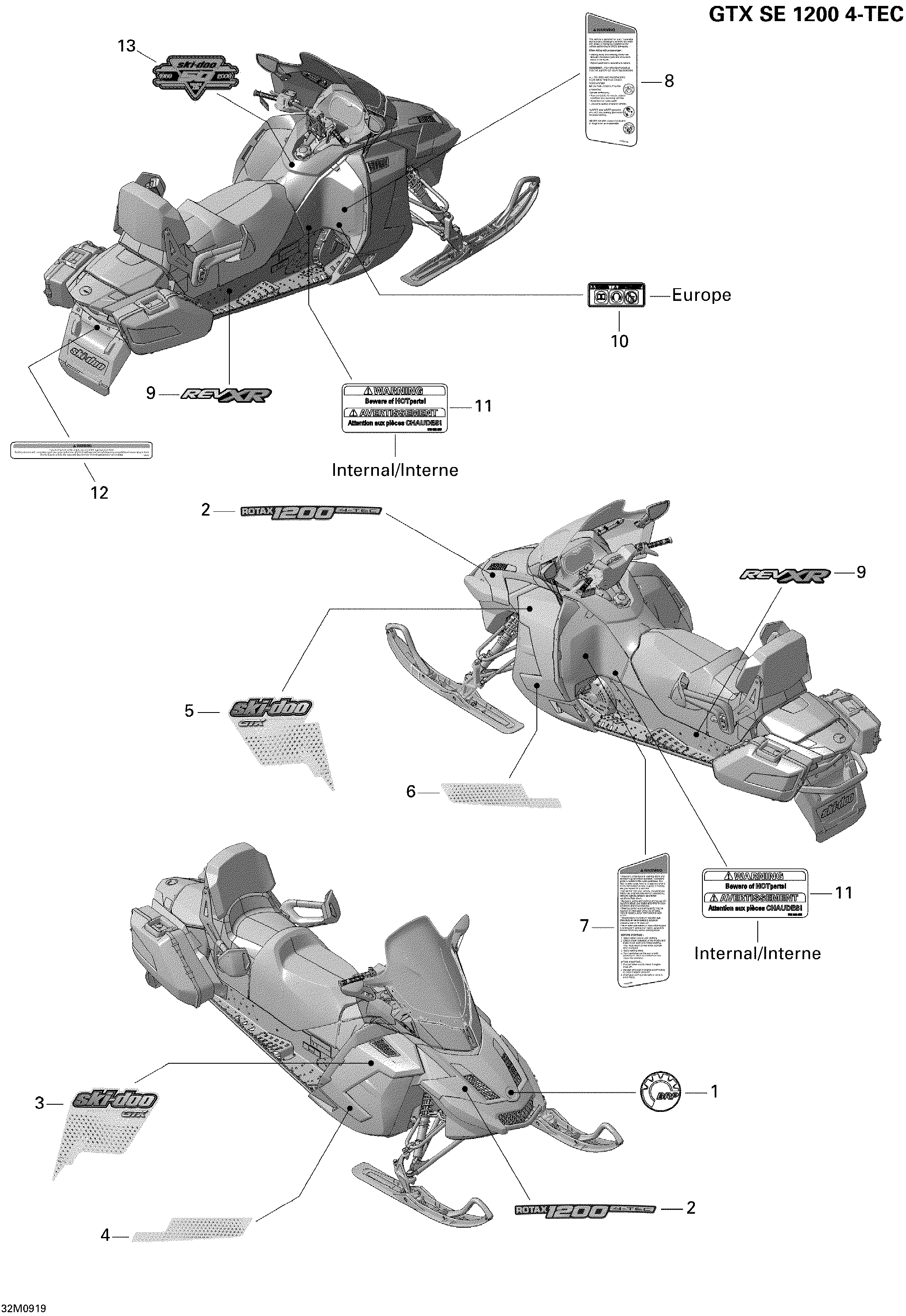

09- Decals для BRP Ski-Doo GTX SE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516003648 Hood Decal, Rotax 1200 4-TECHood Decal, Rotax 1200 4-TEC
-
3516003735 RH Side DecalRH Side Decal
-
4516003733 RH Lower Side DecalRH Lower Side Decal
-
5516003734 LH Side DecalLH Side Decal
-
6516003732 LH Lower Side DecalLH Lower Side Decal
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003784 Decal REV XRDecal REV XR
-
10516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
11516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
12516003578 Warning Decal, TrackWarning Decal, Track
-
13516003871 Console DecalConsole Decal
