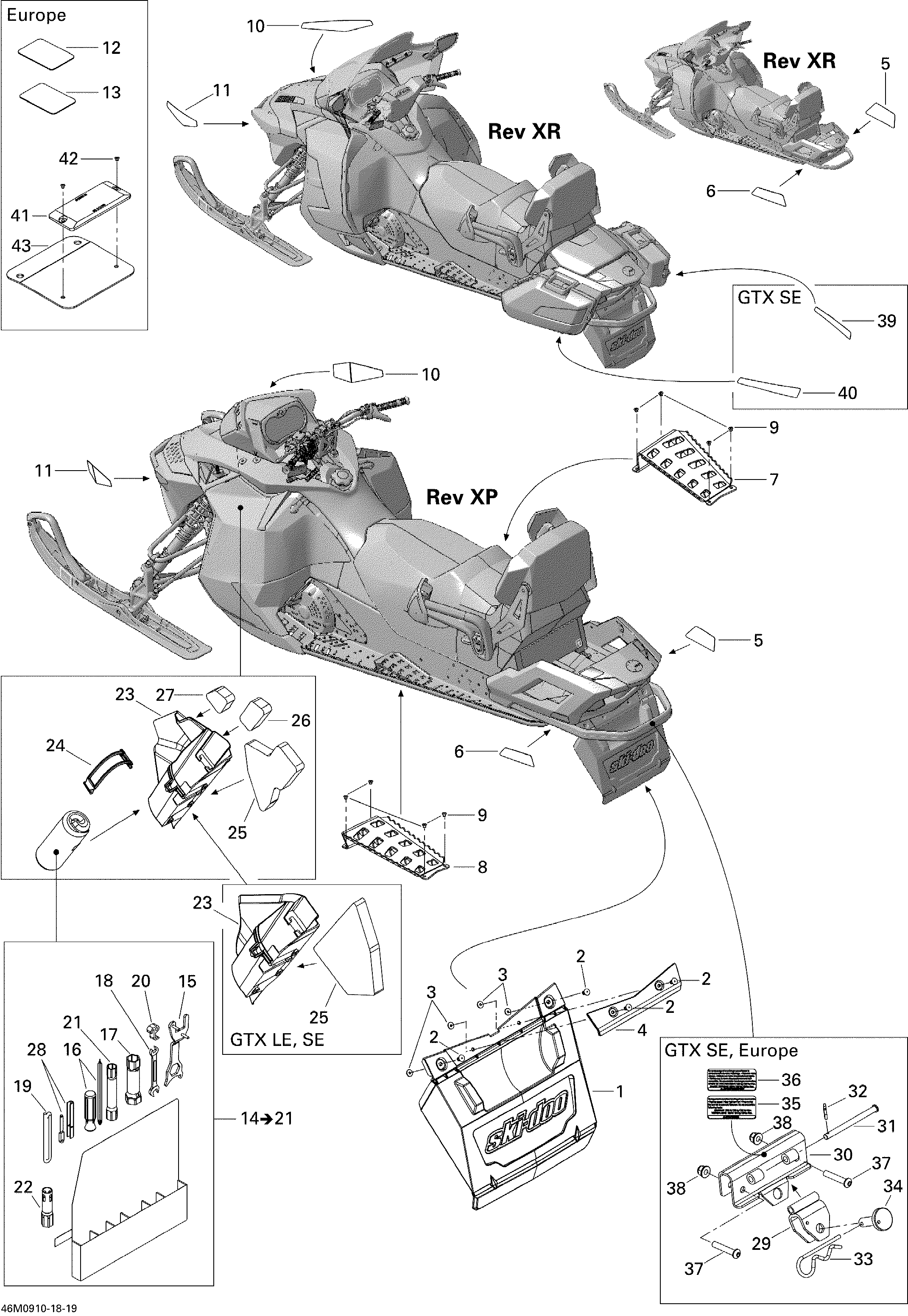

09- Utilities для BRP Ski-Doo GTX SE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4520000751 ReinforcementReinforcement
-
5520000729 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
5520000803 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
6520000730 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
6520000804 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
7520000768 RH FootrestRH Footrest
-
8520000769 LH FootrestLH Footrest
-
9293150102 Rivet 3/16Rivet 3/16
-
10520000759 RH Front ReflectorRH Front Reflector
-
11520000760 LH Front ReflectorLH Front Reflector
-
12520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
13415037900 Reflector, White. EuropeReflector, White. Europe
-
14520000841 Tool Kit. Includes 14 to 21Tool Kit. Includes 14 to 21
-
15520000721 WrenchWrench
-
16529000004 Driver ScrewDriver Screw
-
17529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
18529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
19412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
20529019400 Starter GripStarter Grip
-
21295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
23520000720 Tool Kit RackTool Kit Rack
-
24520000528 LatchLatch
-
28529035501 Spacing ToolSpacing Tool
-
29511000554 Support. EuropeSupport. Europe
-
30511000588 Hitch Plate. EuropeHitch Plate. Europe
-
31511000520 Clevis Pin. EuropeClevis Pin. Europe
-
32371800200 Cotter Pin. EuropeCotter Pin. Europe
-
33114045200 Hair Pin. EuropeHair Pin. Europe
-
34511000555 Pin. EuropePin. Europe
-
35516003037 Warning Decal-Security-English. EuropeWarning Decal-Security-English. Europe
-
36516003038 Warning Decal-Security-French. EuropeWarning Decal-Security-French. Europe
-
37205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
38233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
-
39520000757 RH Rear Reflector. North AmericaRH Rear Reflector. North America
-
39520000831 RH Rear Reflector. EuropeRH Rear Reflector. Europe
-
40520000756 LH Rear Reflector. North AmericaLH Rear Reflector. North America
-
40520000832 LH Rear Reflector. EuropeLH Rear Reflector. Europe
-
41510004350 Lens. EuropeLens. Europe
-
42390402000 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
43520000933 Reflector Support. EuropeReflector Support. Europe
