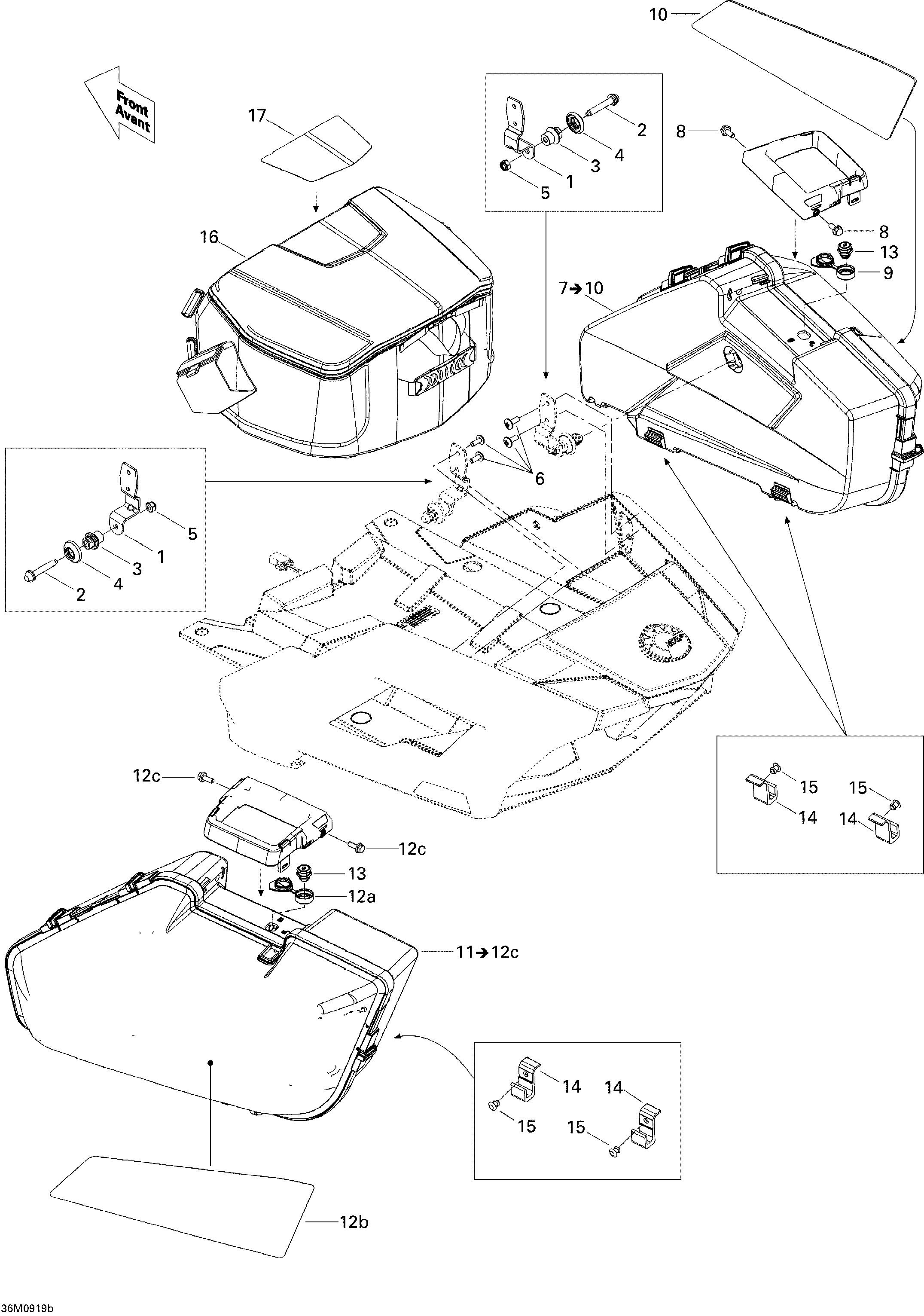

09- Luggage Rack для BRP Ski-Doo GTX SE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1511000580 Saddle Bag Lug SupportSaddle Bag Lug Support
-
2511000337 Suitcase StudSuitcase Stud
-
3511000423 Stud NutStud Nut
-
4511000358 Rubber BumperRubber Bumper
-
5232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
6250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
7511000533 RH Bag. Includes 7 to 10RH Bag. Includes 7 to 10
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
9511000639 Sealing CapSealing Cap
-
10516003766 RH Bag DecalRH Bag Decal
-
11511000534 LH Bag. Includes 11 to 12cLH Bag. Includes 11 to 12c
-
12a511000639 Sealing CapSealing Cap
-
12b516003765 LH Bag DecalLH Bag Decal
-
12c207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
13511000599 LockLock
-
14518325618 Support PlateSupport Plate
-
15293150147 Hemlock RivetHemlock Rivet
-
16860200174 Rear Travel BagRear Travel Bag
-
17516003817 Bag DecalBag Decal
