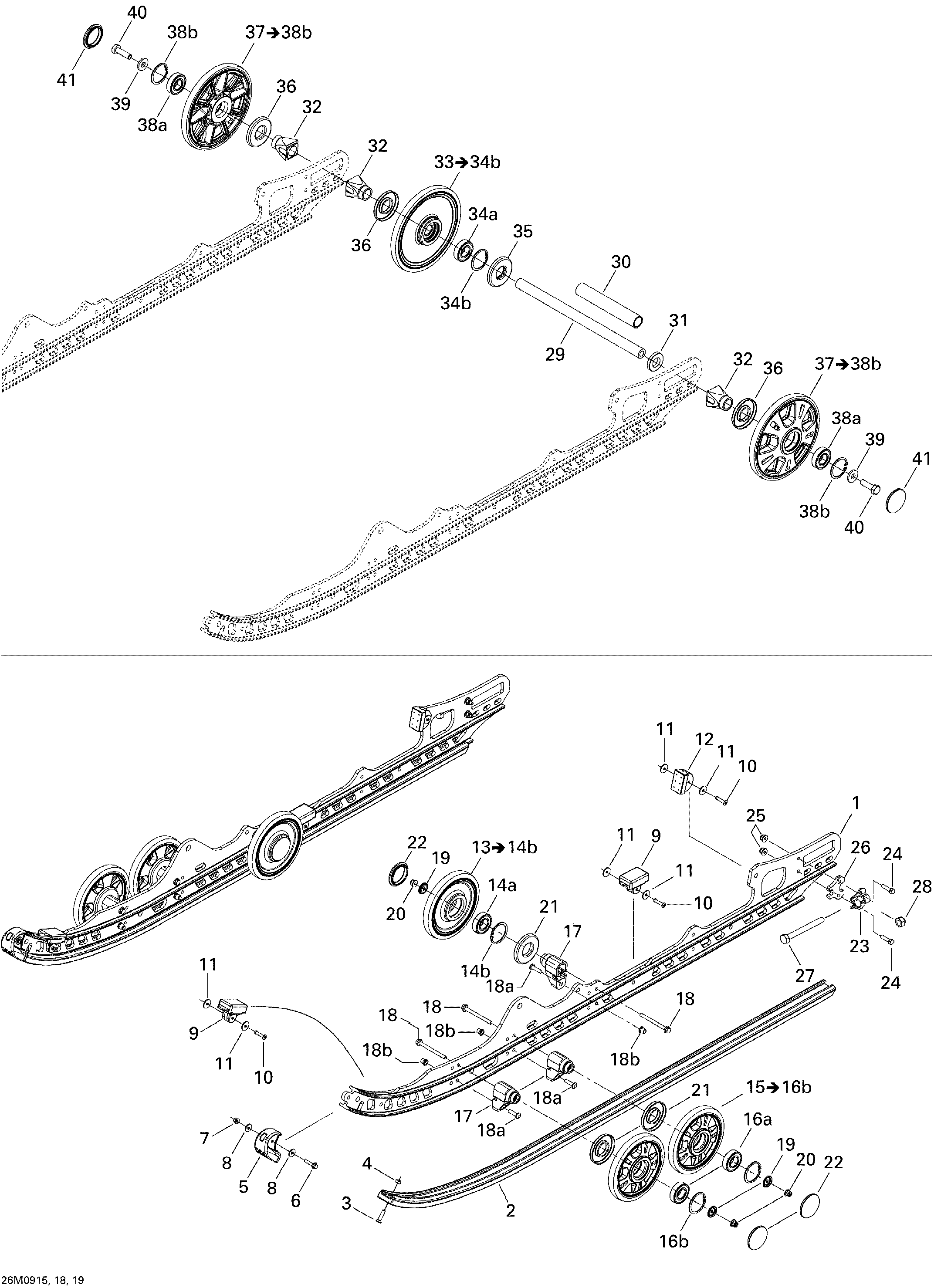

08- Rear Suspension для BRP Ski-Doo GTX SE 1200 4-TEC - 2009
-
№АртикулНазвание
-
1503191965 Runner 137Runner 137
-
2503191306 Black - Slider Shoe 137''Black - Slider Shoe 137''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13503191151 Wheel 141 mm Ass'y, BlackWheel 141 mm Ass'y, Black
-
14a503190396 Ball BearingBall Bearing
-
14b415129371 Retaining RingRetaining Ring
-
15503191622 Wheel 141 mm Ass'y, Full MoonWheel 141 mm Ass'y, Full Moon
-
16a503190396 Ball BearingBall Bearing
-
16b415129371 Retaining RingRetaining Ring
-
17503191833 SupportSupport
-
18207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
18a207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
18b233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19503191820 Wheel Cup M6Wheel Cup M6
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21503190434 Labyrinth SealLabyrinth Seal
-
22570063600 Wheel CapWheel Cap
-
23503190380 TensionerTensioner
-
24207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26503190379 Tensioner SpacerTensioner Spacer
-
27230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
28233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
29503190429 Rear AxleRear Axle
-
30503190430 Rear Long SpacerRear Long Spacer
-
31503190432 WasherWasher
-
32503190428 Rear Wheel SpacerRear Wheel Spacer
-
33503191559 Wheel 180, BlackWheel 180, Black
-
34a503190396 Ball BearingBall Bearing
-
34b415129371 Retaining RingRetaining Ring
-
35503190682 Labyrinth SealLabyrinth Seal
-
36503190434 Labyrinth SealLabyrinth Seal
-
37503191627 Wheel 180, Full MoonWheel 180, Full Moon
-
38a503190396 Ball BearingBall Bearing
-
38b415129371 Retaining RingRetaining Ring
-
39503190439 WasherWasher
-
40250000019 Hex. Screw With NylonHex. Screw With Nylon
-
41570063600 Wheel CapWheel Cap
