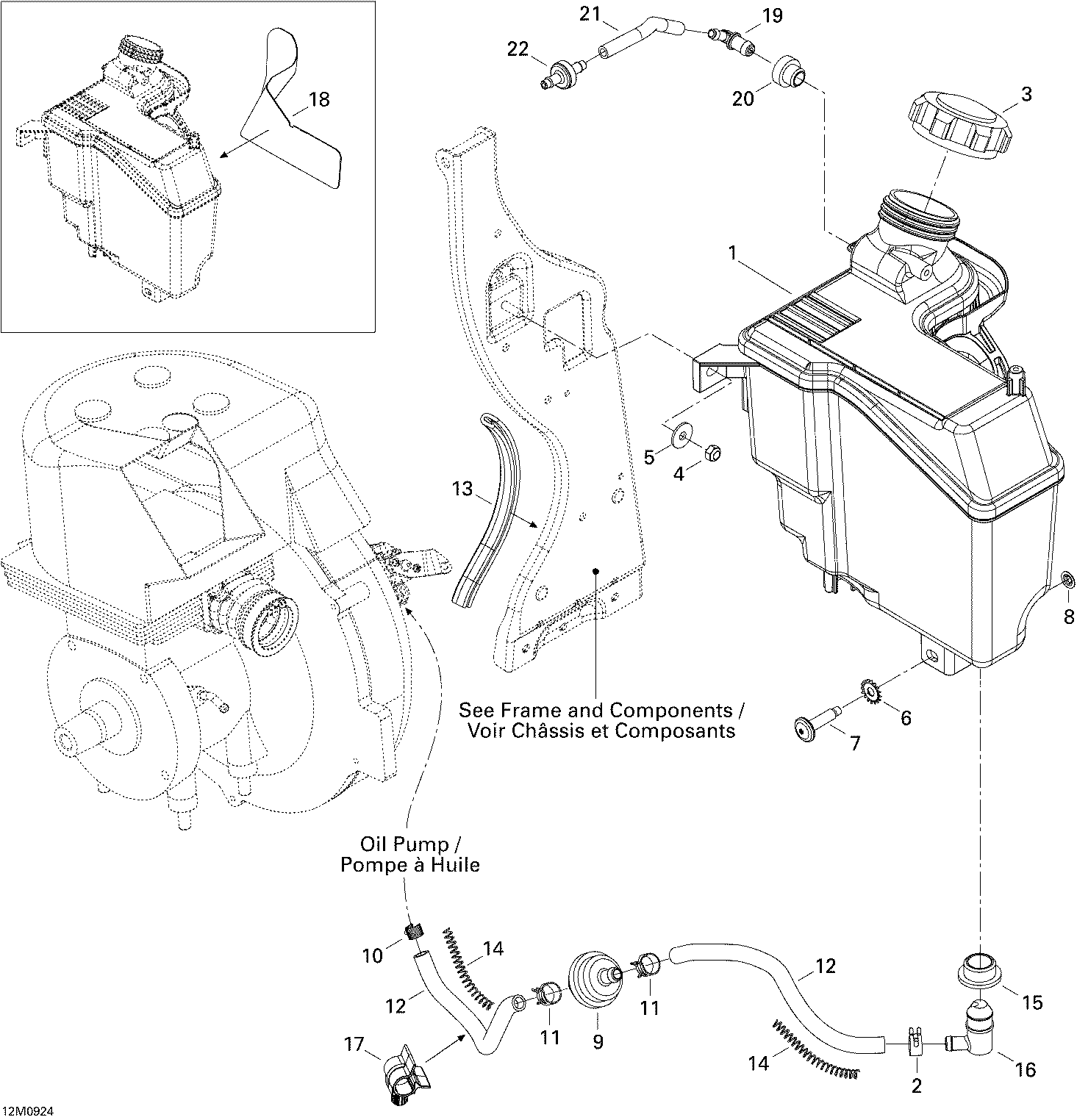

02- Oil System для BRP Ski-Doo Skandic Tundra - 2009
-
№АртикулНазвание
-
1519000073 Injection Oil TankInjection Oil Tank
-
2293650042 Oetiker ClampOetiker Clamp
-
3519000033 CapCap
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5391302000 Flat WasherFlat Washer
-
6250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
7250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
8732610072 Push NutPush Nut
-
9414536500 FilterFilter
-
10414420700 Spring ClipSpring Clip
-
11414415200 Universal Spring ClampUniversal Spring Clamp
-
12415080700 LineLine
-
13271000110 Protection TrimProtection Trim
-
14519000125 SpringSpring
-
15570023000 Insulating RingInsulating Ring
-
16519000124 Elbow Fitting 90°Elbow Fitting 90°
-
17275500528 Hose RetainerHose Retainer
-
18519000054 Reflective SheetReflective Sheet
-
19414580700 Male ConnectorMale Connector
-
20513032908 GrommetGrommet
-
21415080200 Polyurethane HosePolyurethane Hose
-
22275500398 Check ValveCheck Valve
