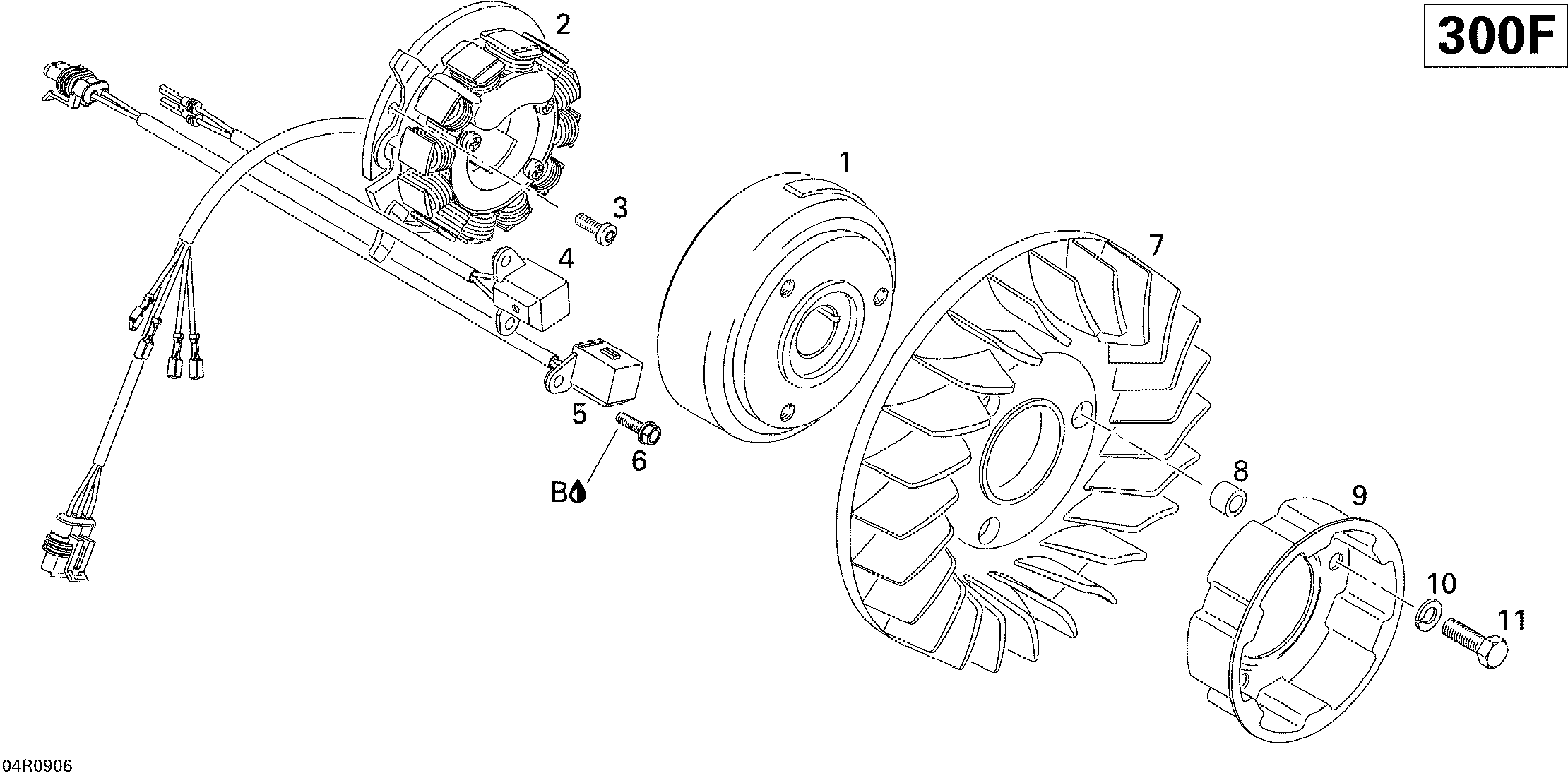

03- Magneto для BRP Ski-Doo Skandic Tundra - 2009
-
№АртикулНазвание
-
1420665370 FlywheelFlywheel
-
2420889369 Stator Plate AStator Plate A
-
3420641521 ScrewScrew
-
4420966543 Pick UpPick Up
-
5420966541 Pick UpPick Up
-
6420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
7420866435 FanFan
-
8420847440 Spacer BushingSpacer Bushing
-
9420852590 Starting PulleyStarting Pulley
-
10420945752 Lock Washer 8 mmLock Washer 8 mm
-
11207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
