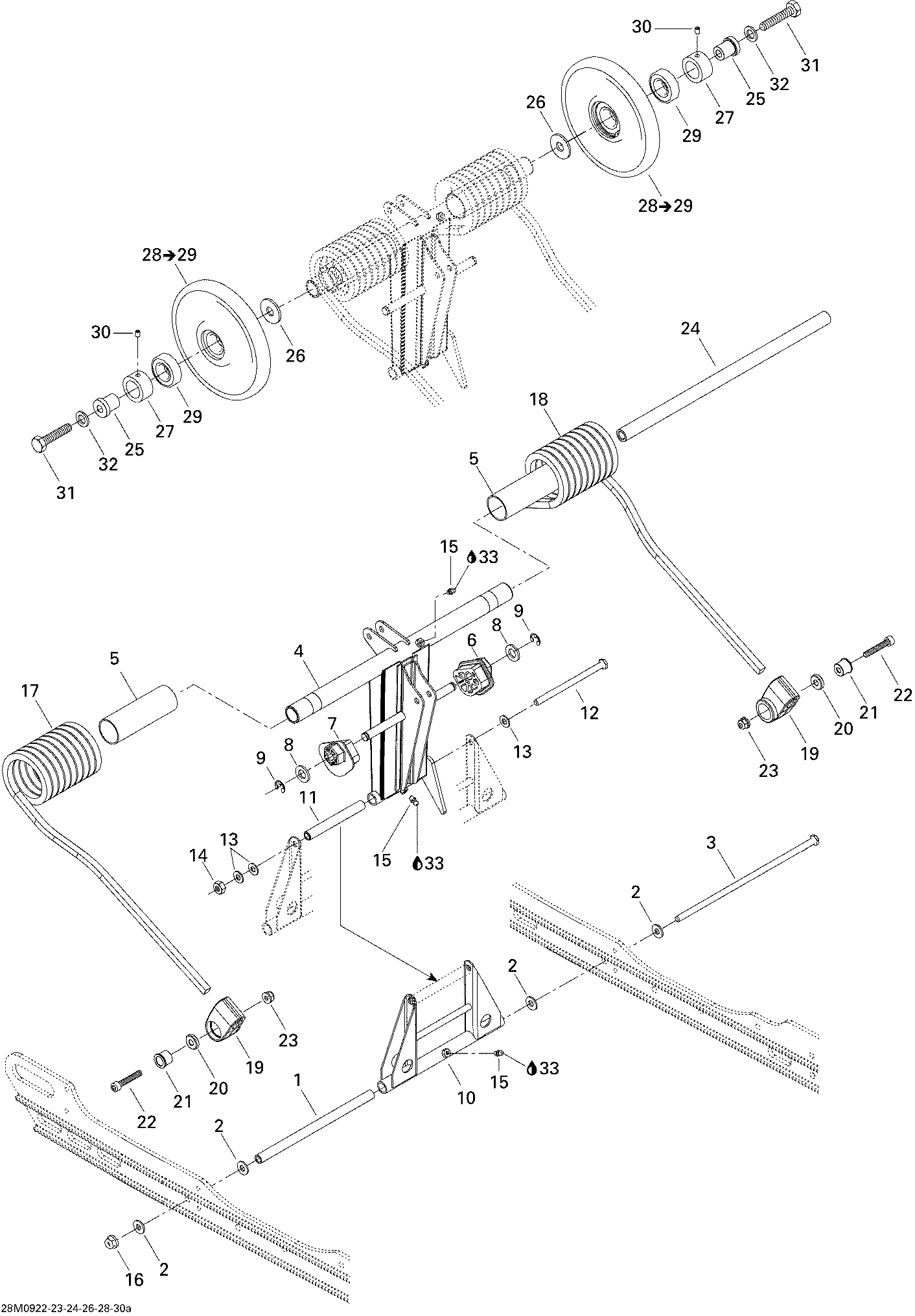

08- Rear Arm для BRP Ski-Doo Skandic Tundra - 2009
-
№АртикулНазвание
-
1503189156 Pivot Arm AxlePivot Arm Axle
-
2503189157 WasherWasher
-
3732601198 Long Bolt M8Long Bolt M8
-
4503191057 Rear ArmRear Arm
-
5503190333 BushingBushing
-
6503191565 LH Cam AdjusterLH Cam Adjuster
-
7503191566 RH Cam AdjusterRH Cam Adjuster
-
8503189148 WasherWasher
-
9293370013 E-CirclipE-Circlip
-
10503191372 Pivot ArmPivot Arm
-
11503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
12732601197 Short Bolt M8Short Bolt M8
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
15408200700 Grease FittingGrease Fitting
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17503190712 RH Spring. Except EuropeRH Spring. Except Europe
-
17503190716 RH Spring. EuropeRH Spring. Europe
-
18503190714 LH Spring. Except EuropeLH Spring. Except Europe
-
18503190718 LH Spring. EuropeLH Spring. Europe
-
19503191539 Spring SupportSpring Support
-
20234082410 Flat Washer 8 mmFlat Washer 8 mm
-
21503190754 Retainer CushionRetainer Cushion
-
22205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24503190387 ShaftShaft
-
25503190422 BushingBushing
-
26503190328 WasherWasher
-
27503168800 Retaining RingRetaining Ring
-
28503191359 Wheel 165. Includes 28 to 29Wheel 165. Includes 28 to 29
-
29503191149 Ball BearingBall Bearing
-
30206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
31207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
32732900049 WasherWasher
-
33219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
