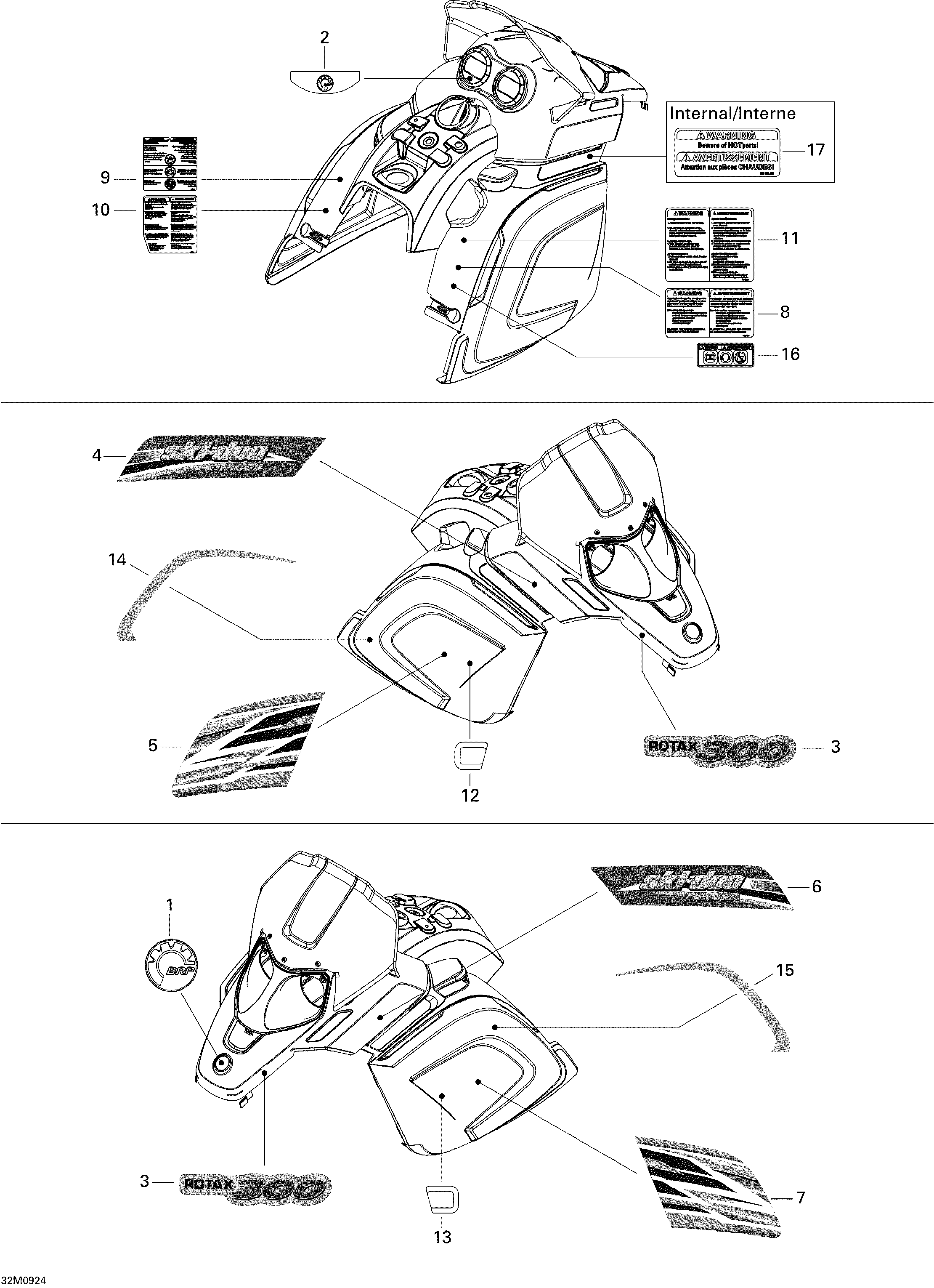

09- Decals для BRP Ski-Doo Skandic Tundra - 2009
-
№АртикулНазвание
-
1219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
2516002905 BRP Logo, 16 mmBRP Logo, 16 mm
-
3516003400 Hood Decal, Rotax 300Hood Decal, Rotax 300
-
4516003397 RH Upper Side DecalRH Upper Side Decal
-
5516003399 RH Side DecalRH Side Decal
-
6516003396 LH Upper Side DecalLH Upper Side Decal
-
7516003398 LH Side DecalLH Side Decal
-
8516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12516001910 RH Protector DecalRH Protector Decal
-
13516001911 LH Protector DecalLH Protector Decal
-
14516003403 RH Inner Side DecalRH Inner Side Decal
-
15516003402 LH Inner Side DecalLH Inner Side Decal
-
16516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
17516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
