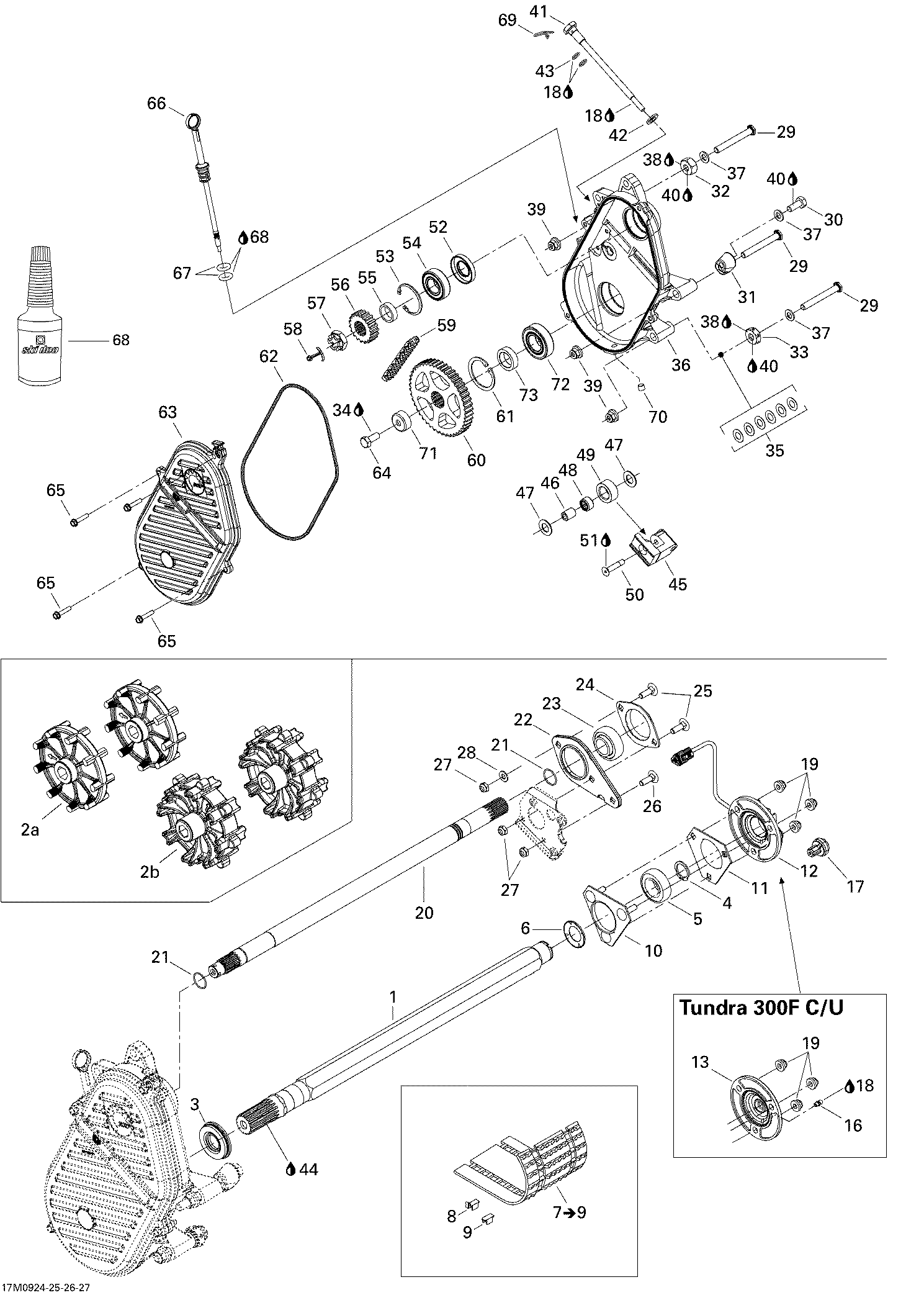

05- Drive System для BRP Ski-Doo Skandic Tundra - 2009
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2a504151781 Sprocket, 9 TeethSprocket, 9 Teeth
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5293350060 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152675 Track 16'' x 136'' x 1.25'' Ass'y. Includes 7 to 9Track 16'' x 136'' x 1.25'' Ass'y. Includes 7 to 9
-
8504152410 GuideGuide
-
10504151860 Bearing HousingBearing Housing
-
11501025000 FlangeFlange
-
12504152345 Rotation Sensor. EuropeRotation Sensor. Europe
-
13504152463 Speedo Flange. Except EuropeSpeedo Flange. Except Europe
-
16408200700 Grease Fitting. Except EuropeGrease Fitting. Except Europe
-
17504152040 Magnetic Adaptor. EuropeMagnetic Adaptor. Europe
-
18219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20504152292 Counter ShaftCounter Shaft
-
21371910000 CirclipCirclip
-
22504151968 SpacerSpacer
-
23504152535 Ball BearingBall Bearing
-
24501026900 FlangeFlange
-
25207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
26207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
27232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
28234081410 Flat Washer 8 mmFlat Washer 8 mm
-
29250000151 Hex. Screw M10 X 80Hex. Screw M10 X 80
-
30207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
31504152252 SpacerSpacer
-
32504083800 SpacerSpacer
-
33504152237 SpacerSpacer
-
34293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
35504073700 WasherWasher
-
36504152312 ChaincaseChaincase
-
37503175800 WasherWasher
-
38293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
39233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
40293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
41732601314 Adjustment ScrewAdjustment Screw
-
42234001410 Flat Washer 10 mmFlat Washer 10 mm
-
43414484400 O-RingO-Ring
-
44219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
45504151951 Chain TensionerChain Tensioner
-
46504080200 SpacerSpacer
-
47504080300 WasherWasher
-
48405403000 Needle BearingNeedle Bearing
-
49414531300 RollerRoller
-
50732601144 ScrewScrew
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52504151927 SealSeal
-
53371901700 CirclipCirclip
-
54293350055 Ball BearingBall Bearing
-
55504147200 ShimShim
-
56504152603 15 Tooth Sprocket15 Tooth Sprocket
-
57250100056 Hex. Castle Nut, M20 X1.5Hex. Castle Nut, M20 X1.5
-
58371006300 Pin CotterPin Cotter
-
59504151830 Drive Chain, 72 LinksDrive Chain, 72 Links
-
60504152238 45 Tooth Sprocket45 Tooth Sprocket
-
61415064300 Circlip, InteriorCirclip, Interior
-
62415046400 O-RingO-Ring
-
63504152471 Chaincase CoverChaincase Cover
-
64207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
65210263080 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
66504151703 Filler Cap Ass'yFiller Cap Ass'y
-
67414969400 O-RingO-Ring
-
68413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
69414575600 Hair PinHair Pin
-
70504151921 Plug 1/8''-27Plug 1/8''-27
-
71504152460 CapCap
-
72504152005 Ball BearingBall Bearing
-
73504152649 ShimShim
