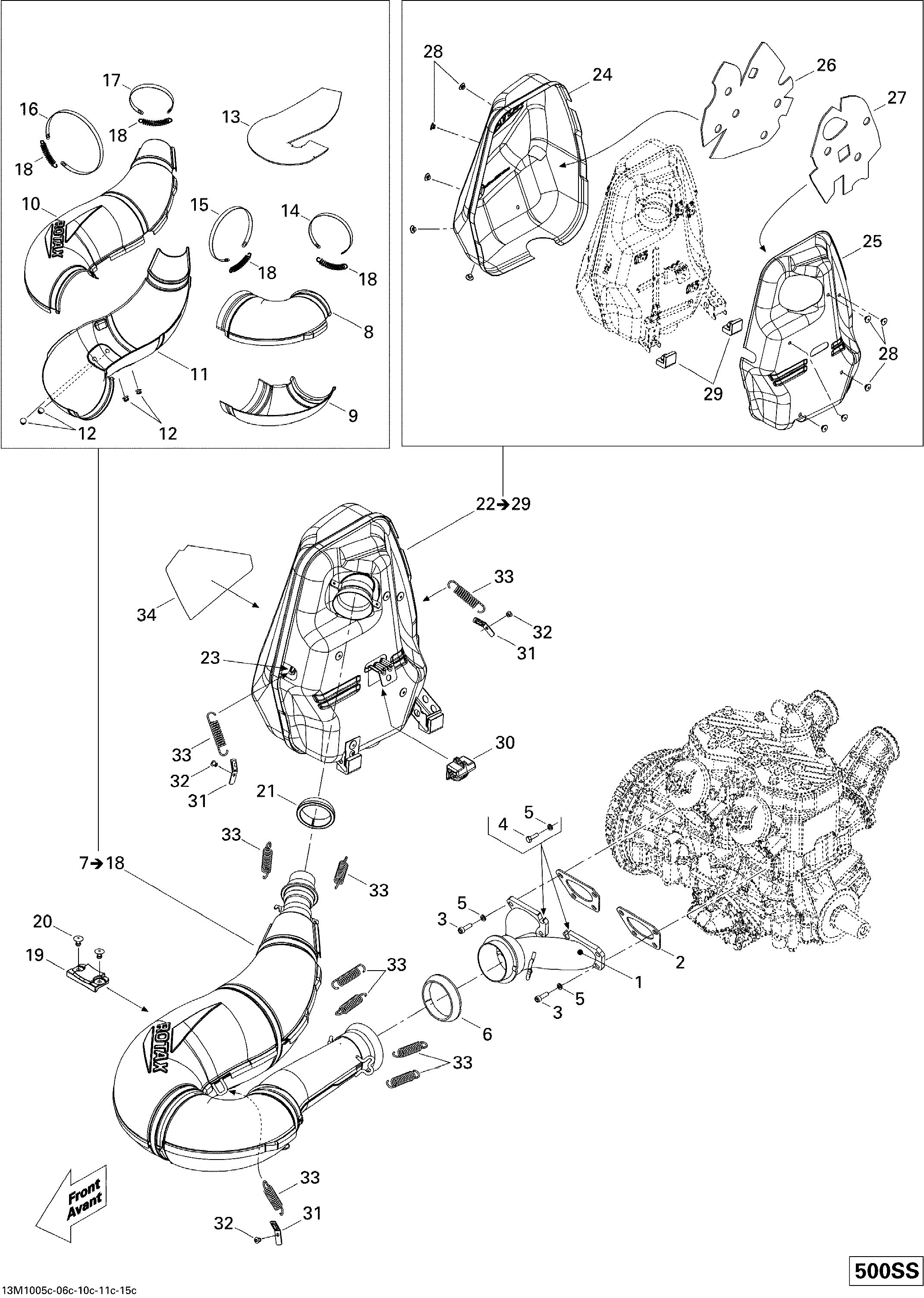

01- Exhaust System 500SS для BRP Ski-Doo Summit Sport 600 - 2010
-
№АртикулНазвание
-
1420673131 Exhaust ManifoldExhaust Manifold
-
2420931610 GasketGasket
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
5514053837 WasherWasher
-
6514053487 Exhaust GasketExhaust Gasket
-
7514054594 Tune Pipe Ass'y. Includes 7 to 18Tune Pipe Ass'y. Includes 7 to 18
-
8514054485 Front Upper EnveloppeFront Upper Enveloppe
-
9514054486 Front Lower EnveloppeFront Lower Enveloppe
-
10514054590 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
11514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
12293150091 Henrob RivetHenrob Rivet
-
13514054487 Insulating WoolInsulating Wool
-
14514054408 Retaining StrapRetaining Strap
-
15514054409 Retaining StrapRetaining Strap
-
16514054410 Retaining StrapRetaining Strap
-
17514053499 Retaining StrapRetaining Strap
-
18514053643 SpringSpring
-
19514054275 BumperBumper
-
20293150103 Pop RivetPop Rivet
-
21514053812 Exhaust GasketExhaust Gasket
-
22514054447 Muffler Ass'y. Includes 22 to 29Muffler Ass'y. Includes 22 to 29
-
23514054155 Spring BracketSpring Bracket
-
24514054433 RH DeflectorRH Deflector
-
25514054202 LH DeflectorLH Deflector
-
26514054711 RH Insulating WoolRH Insulating Wool
-
27514054299 LH Insulating WoolLH Insulating Wool
-
28390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
29514054274 Lower StopperLower Stopper
-
30514054606 Upper StopperUpper Stopper
-
31514054391 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054226 SpringSpring
-
34514054488 Reflective SheetReflective Sheet
