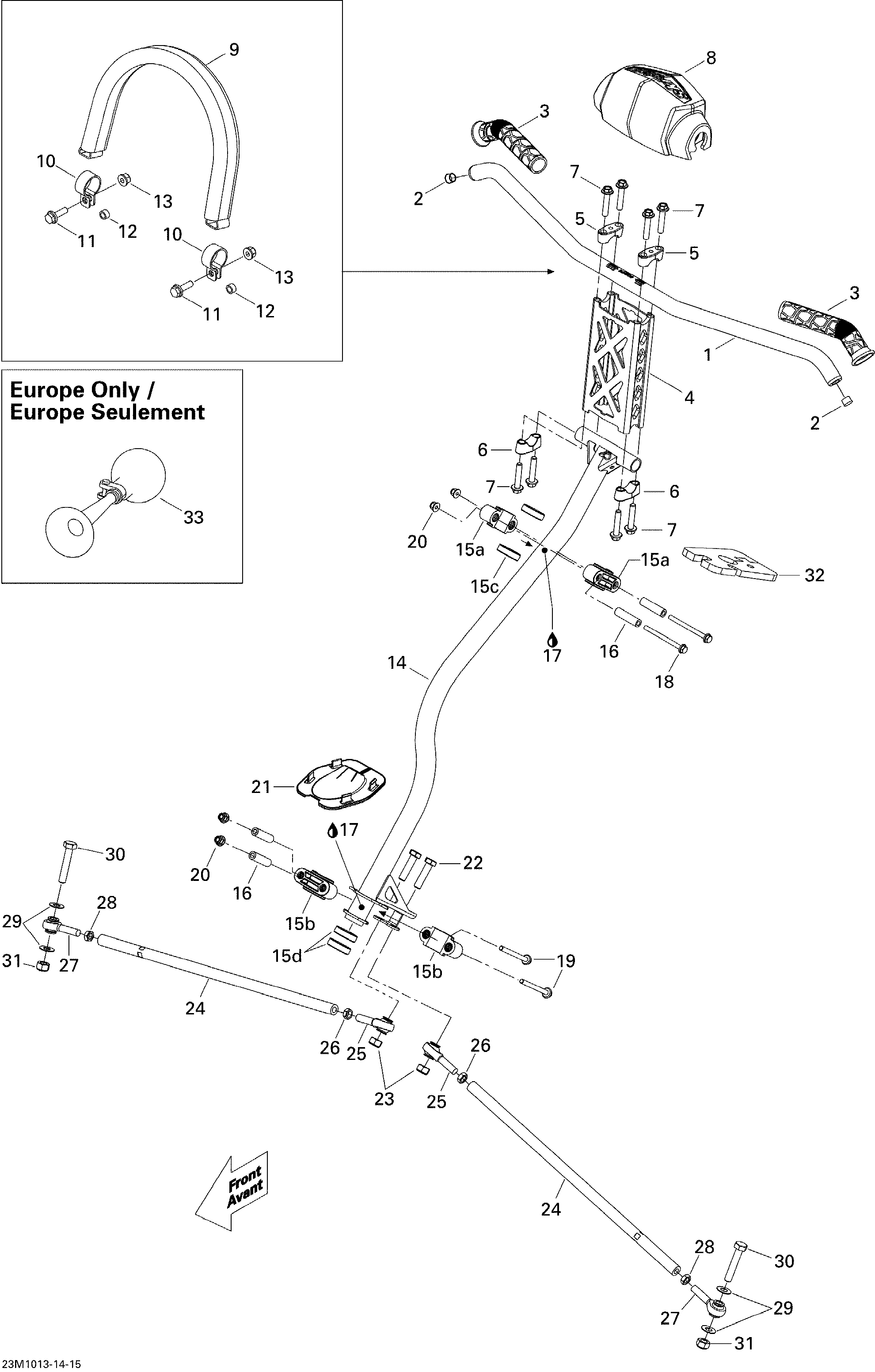

07- Steering для BRP Ski-Doo Summit Sport 600 - 2010
-
№АртикулНазвание
-
1506152191 HandlebarHandlebar
-
2572051500 CapCap
-
3506152226 GripGrip
-
4860200269 Handlebar ExtensionHandlebar Extension
-
5506152394 Upper Steering SupportUpper Steering Support
-
6506152395 Lower Steering SupportLower Steering Support
-
7250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
8506152192 Steering PadSteering Pad
-
9506152115 Strap Ass'yStrap Ass'y
-
10506151792 Support Plate, BlackSupport Plate, Black
-
11207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
12506152156 BushingBushing
-
13233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
14506152469 Main TubeMain Tube
-
15a506152219 Upper Half HousingUpper Half Housing
-
15b506152217 Lower Half HousingLower Half Housing
-
15c506152292 Upper Vibration RingUpper Vibration Ring
-
15d506152218 Lower Vibration RingLower Vibration Ring
-
16506152297 Housing BushingHousing Bushing
-
17293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
18207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
19207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
20233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
21506152163 PlatePlate
-
22207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
23232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
24506152229 Tie RodTie Rod
-
25506152081 LH Thread Ball JointLH Thread Ball Joint
-
26250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
27506152019 RH Thread Ball JointRH Thread Ball Joint
-
28732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
29506152194 WasherWasher
-
30207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32506152407 CushionCushion
