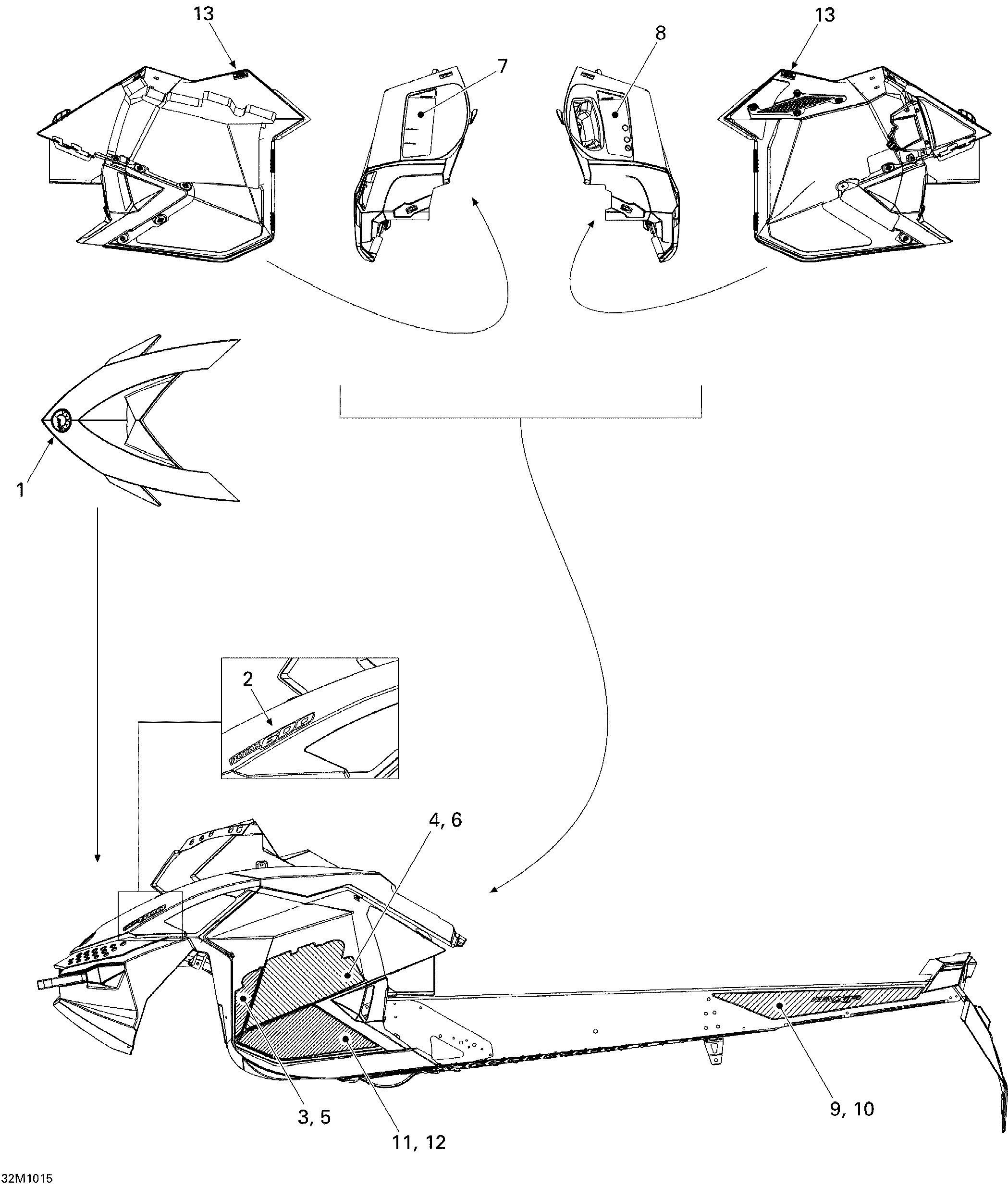

09- Decals для BRP Ski-Doo Summit Sport 600 - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2516003872 Hood Decal, Rotax 600Hood Decal, Rotax 600
-
3516004044 RH Front Side DecalRH Front Side Decal
-
4516003945 RH Side DecalRH Side Decal
-
5516004043 LH Front Side DecalLH Front Side Decal
-
6516003944 LH Side DecalLH Side Decal
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003688 RH Frame Decal, REV XP 146''RH Frame Decal, REV XP 146''
-
10516003687 LH Frame Decal, REV XP 146''LH Frame Decal, REV XP 146''
-
11516003947 RH Lower DecalRH Lower Decal
-
12516003946 LH Lower DecalLH Lower Decal
-
13516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
