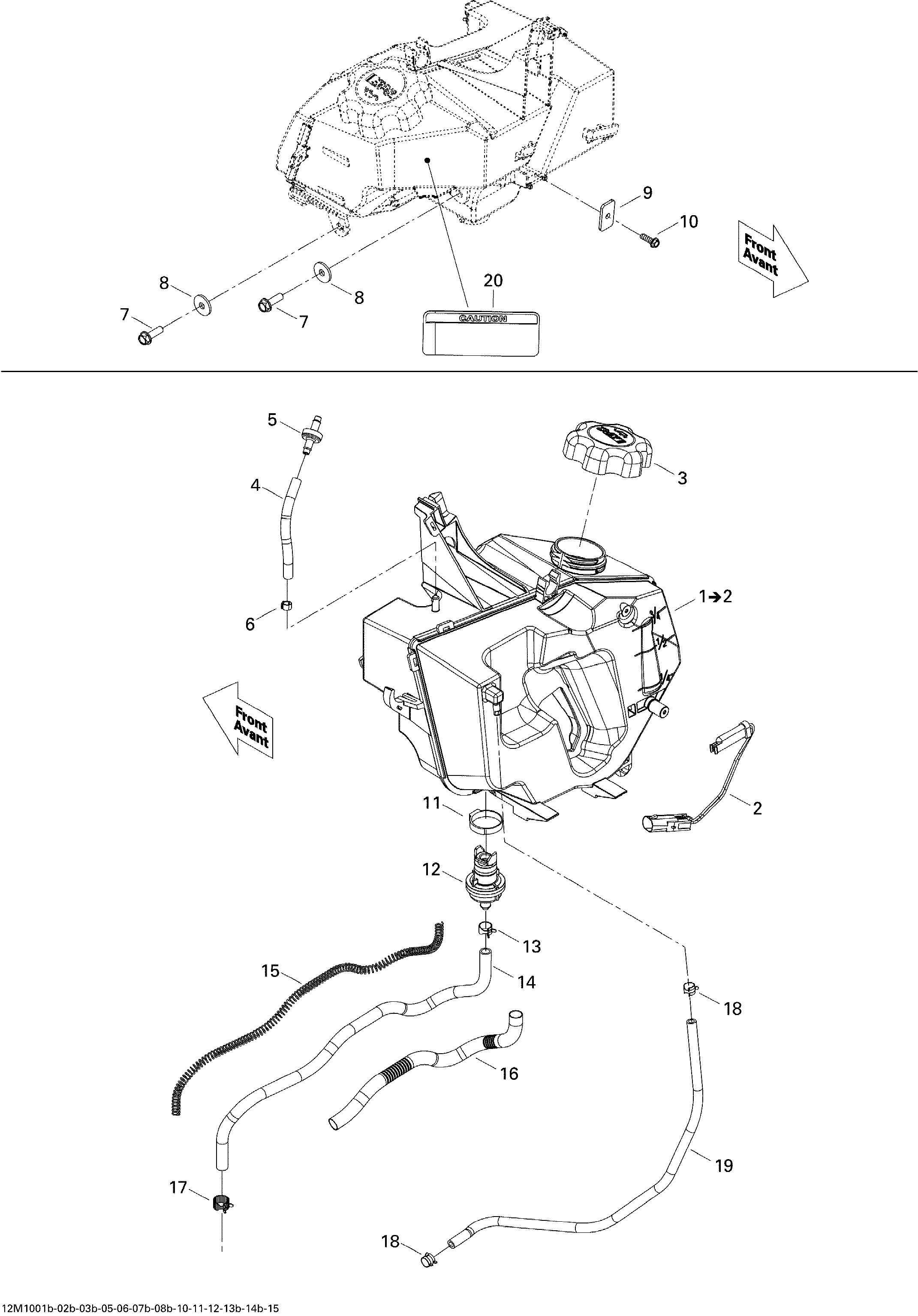

02- Oil System для BRP Ski-Doo Summit Sport 600 - 2010
-
№АртикулНазвание
-
1519000237 Oil Tank. Includes 1 to 2Oil Tank. Includes 1 to 2
-
2515176508 Oil Level SensorOil Level Sensor
-
3519000194 CapCap
-
4415080200 Hose, PolyurethaneHose, Polyurethane
-
5275500398 Check ValveCheck Valve
-
6414554800 Spring ClampSpring Clamp
-
7250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
8224061201 Flat WasherFlat Washer
-
9519000179 BracketBracket
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11293650099 Oetiker Gear ClampOetiker Gear Clamp
-
12519000242 Oil FilterOil Filter
-
13414415200 Universal Spring ClampUniversal Spring Clamp
-
14415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
15519000196 SpringSpring
-
16415079900 Tubing 10 mmTubing 10 mm
-
17414420700 Spring ClipSpring Clip
-
18414554800 Spring ClampSpring Clamp
-
19415080200 Hose, PolyurethaneHose, Polyurethane
-
20516003875 Caution Decal, OilCaution Decal, Oil
