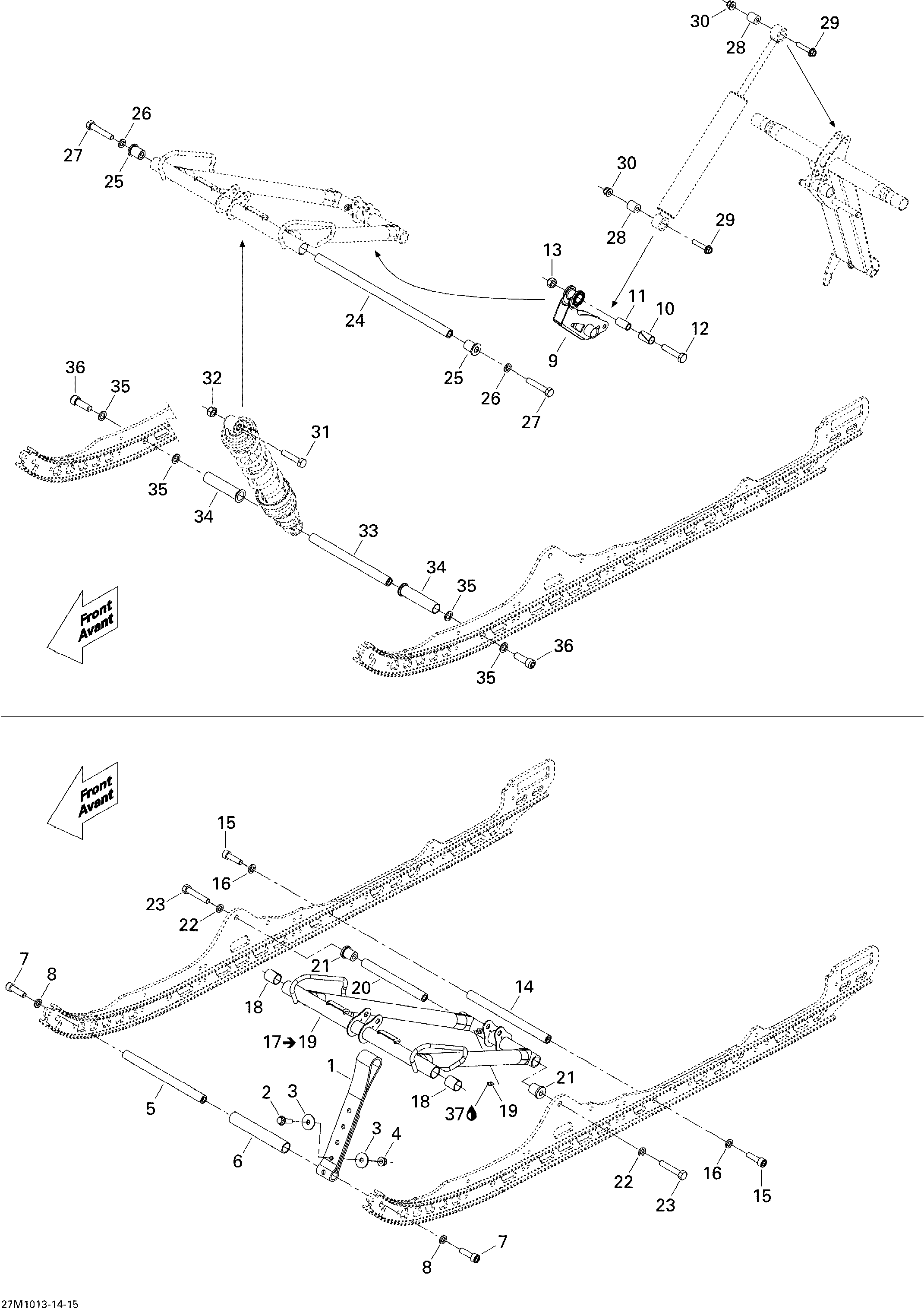

08- Front Arm для BRP Ski-Doo Summit Sport 600 - 2010
-
№АртикулНазвание
-
1503192360 Stopper StrapStopper Strap
-
2207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3224081301 Flat WasherFlat Washer
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503191260 Axle StrapAxle Strap
-
6503191448 SpacerSpacer
-
7205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
8503189564 WasherWasher
-
9503192211 RockerRocker
-
10503191422 CushionCushion
-
11503189282 BushingBushing
-
12207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14503191260 Axle StrapAxle Strap
-
15205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
16503189564 WasherWasher
-
17503191580 Front Arm Ass'y. Includes 17 to 19Front Arm Ass'y. Includes 17 to 19
-
18503191556 Extended BushingExtended Bushing
-
19408200700 Grease FittingGrease Fitting
-
20503191279 Lower ShaftLower Shaft
-
21503189324 CushionCushion
-
22503189564 WasherWasher
-
23207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
24503191215 Upper ShaftUpper Shaft
-
25503191262 BushingBushing
-
26503189564 WasherWasher
-
27207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
28414936000 CushionCushion
-
29207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
32233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
33503191258 Center Shock ShaftCenter Shock Shaft
-
34503191259 Center BushingCenter Bushing
-
35503189276 WasherWasher
-
36205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
37293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
