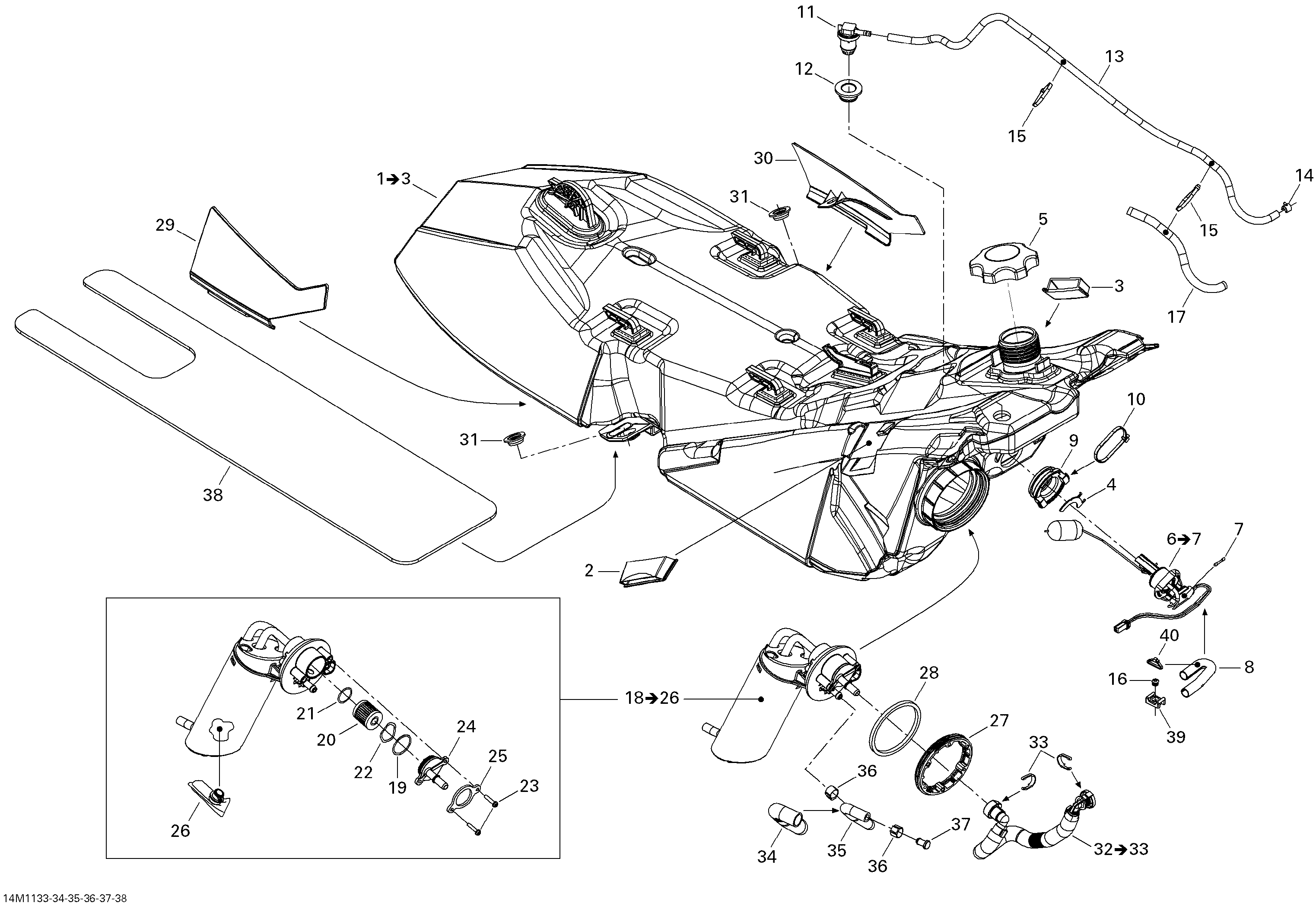

02- Fuel System для BRP Ski-Doo Expedition Sport 600ACE - 2011
-
№АртикулНазвание
-
1513033578 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033649 SpacerSpacer
-
5513033025 Fuel Tank CapFuel Tank Cap
-
6513033624 Fuel Level Sensor Ass'y. Includes 6 to 7Fuel Level Sensor Ass'y. Includes 6 to 7
-
7710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
8415079900 Tubing 10 mmTubing 10 mm
-
9513033606 GrommetGrommet
-
10293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
11513033188 Check ValveCheck Valve
-
12513033596 GrommetGrommet
-
13415080200 Hose, PolyurethaneHose, Polyurethane
-
14414554800 Spring ClampSpring Clamp
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
17504152900 Protector TubeProtector Tube
-
18513033587 Fuel Pump Ass'y. Includes 18 to 26Fuel Pump Ass'y. Includes 18 to 26
-
19415129509 O-RingO-Ring
-
20415129510 Fuel FilterFuel Filter
-
21415129511 O-RingO-Ring
-
22415129512 Wave WasherWave Washer
-
23415129513 ScrewScrew
-
24415129514 CoverCover
-
25415129569 Fuel Pump RingFuel Pump Ring
-
26415129451 Fuel FilterFuel Filter
-
27513033180 RingRing
-
28513033334 GasketGasket
-
29513033418 RH CapRH Cap
-
30513033419 LH CapLH Cap
-
31513033326 Shoulder BushingShoulder Bushing
-
32513033582 Hose Ass`Y. Includes 32 to 33Hose Ass`Y. Includes 32 to 33
-
33513033135 Locking ClipLocking Clip
-
34415080000 Tubing 16 mmTubing 16 mm
-
35513033544 Formed HoseFormed Hose
-
36293650047 Crimp ClampCrimp Clamp
-
37293000107 Plug, 8 mmPlug, 8 mm
-
38513033588 Insulating FoamInsulating Foam
-
39515176795 ClipClip
-
40293750002 Tie-Rap 130 mmTie-Rap 130 mm
