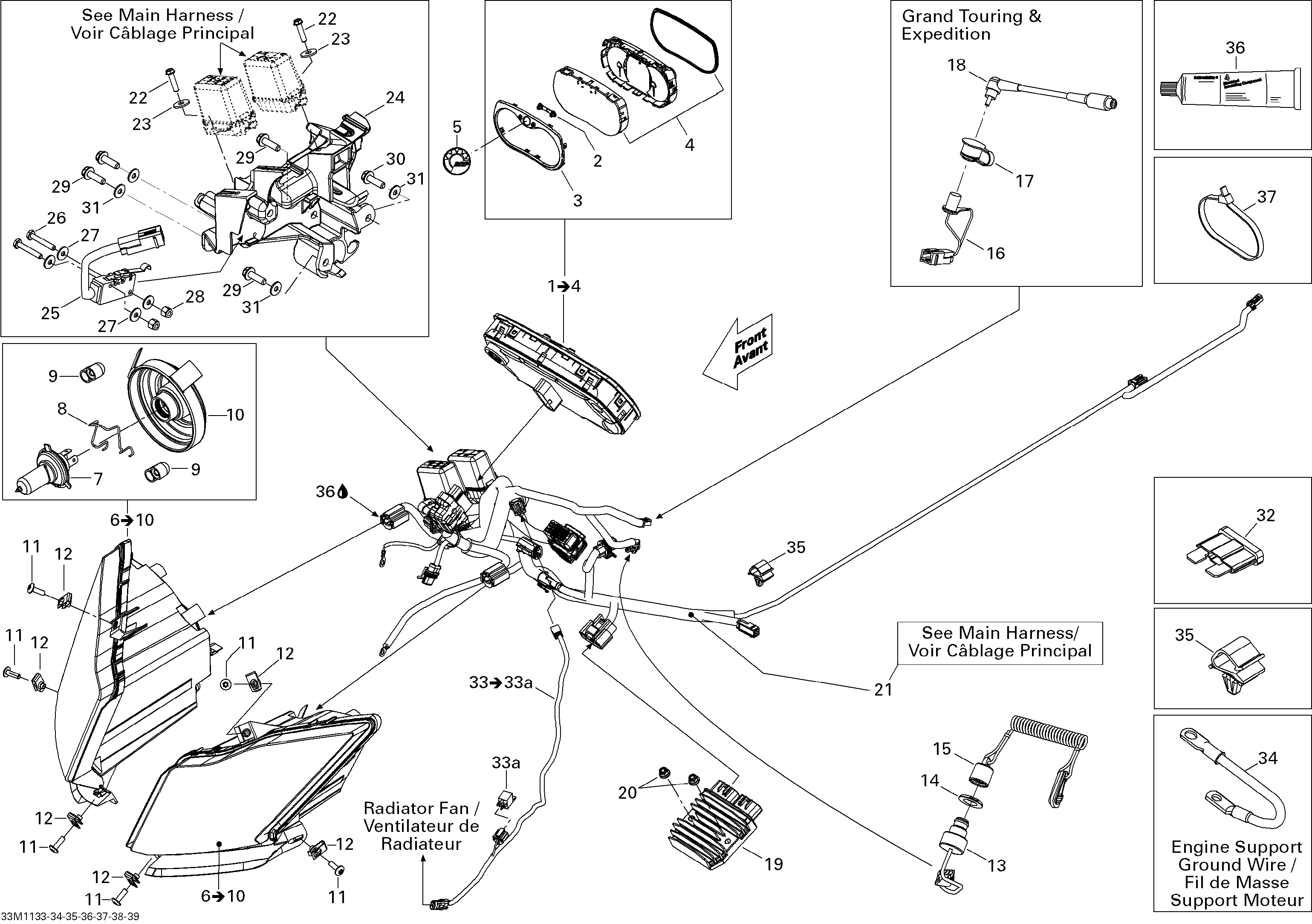

10- Electrical System для BRP Ski-Doo Expedition Sport 600ACE - 2011
-
№АртикулНазвание
-
1515176862 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
6517304194 RH Headlamp Ass'y. Includes 6 to 10RH Headlamp Ass'y. Includes 6 to 10
-
6517304195 LH Headlamp Ass'y. Includes 6 to 10LH Headlamp Ass'y. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13515176815 Dess SwitchDess Switch
-
14278000508 Safety Switch NutSafety Switch Nut
-
15515177057 DESS CapDESS Cap
-
16515175799 Visor Plug Harness. Grand Touring & ExpeditionVisor Plug Harness. Grand Touring & Expedition
-
17572103300 Cap. Grand Touring & ExpeditionCap. Grand Touring & Expedition
-
18515175851 Extension. Grand Touring & ExpeditionExtension. Grand Touring & Expedition
-
19710001103 Voltage RegulatorVoltage Regulator
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21515176991 Main Harness Ass'yMain Harness Ass'y
-
22211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
23234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
24515176866 PlatePlate
-
25515176881 Switch Ass'ySwitch Ass'y
-
26207132044 Hex Screw M3 X 20Hex Screw M3 X 20
-
27234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
28232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
29210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
30210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
31250200039 Flat WasherFlat Washer
-
32710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
32710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
32710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
32710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
32710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
33515176783 Radiator Fan Harness. Includes 33 to 33aRadiator Fan Harness. Includes 33 to 33a
-
33a410113200 RelayRelay
-
34515177014 Ground WireGround Wire
-
35515176795 ClipClip
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
37293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
37293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37293750008 Tie-Rap 350 mmTie-Rap 350 mm
