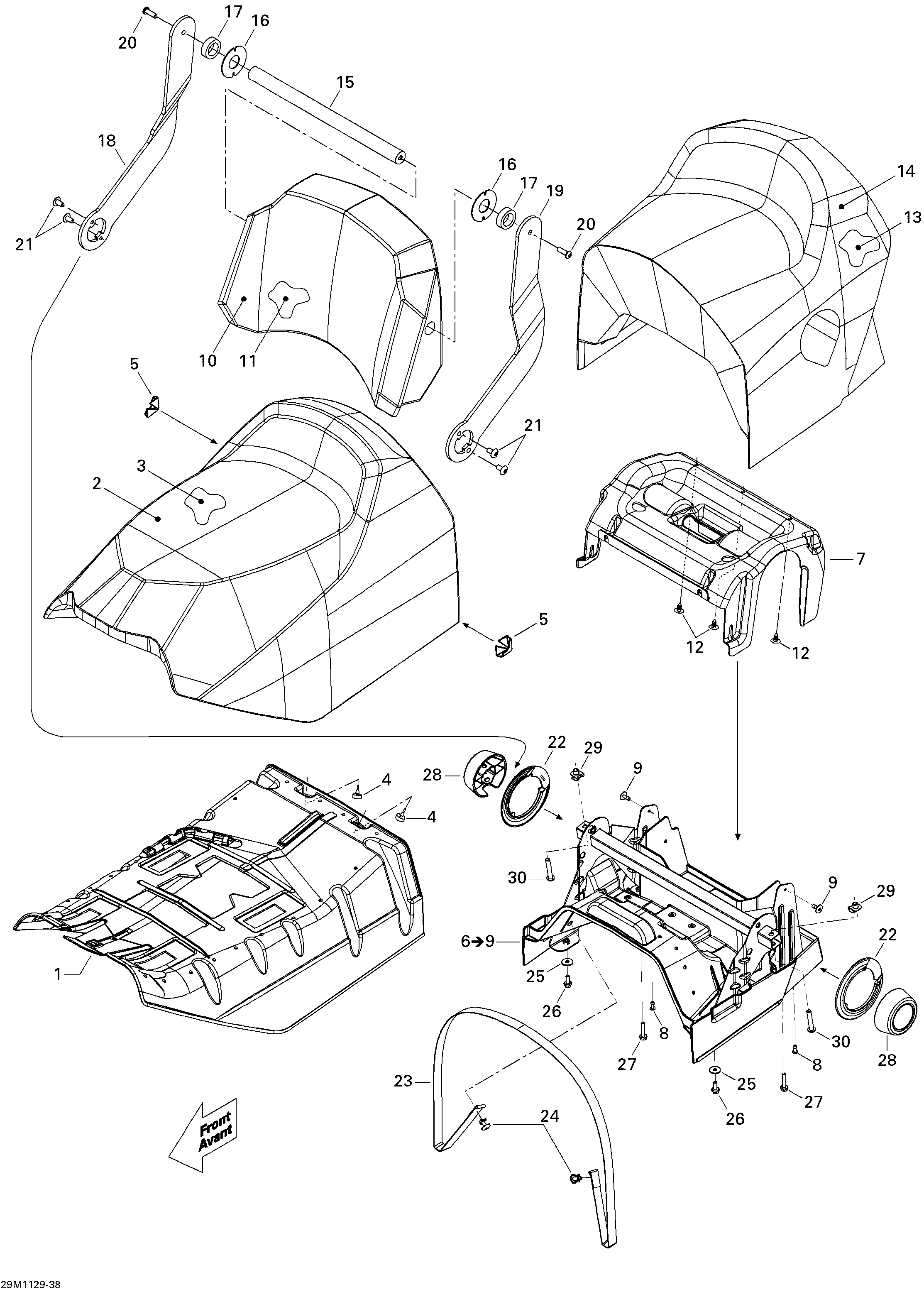

09- Seat для BRP Ski-Doo Expedition Sport 600ACE - 2011
-
№АртикулНазвание
-
1510004775 Front Seat BaseFront Seat Base
-
2510005181 Seat CoverSeat Cover
-
3510004777 Front Seat FoamFront Seat Foam
-
4708000759 Rubber StopperRubber Stopper
-
5510004963 Seat CornerSeat Corner
-
6510005182 Seat Base Ass'y. Includes 6 to 9Seat Base Ass'y. Includes 6 to 9
-
7510004423 Foam SupportFoam Support
-
8390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
9293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
10510005309 Backrest CoverBackrest Cover
-
11510004791 Rear Seat FoamRear Seat Foam
-
12414644300 DartDart
-
13510004782 Backrest FoamBackrest Foam
-
14510005399 Rear Seat CoverRear Seat Cover
-
15510004377 Upper Backrest AxleUpper Backrest Axle
-
16510004379 WasherWasher
-
17510004378 Rubber ShimRubber Shim
-
18510004373 RH Arm, BlackRH Arm, Black
-
19510004375 LH Arm, BlackLH Arm, Black
-
20250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
21250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
22510004713 SpacerSpacer
-
23510004768 Seat BeltSeat Belt
-
24293150067 RivetRivet
-
25224061201 Flat WasherFlat Washer
-
26207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
27207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
28510004481 CapCap
-
30250000220 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
