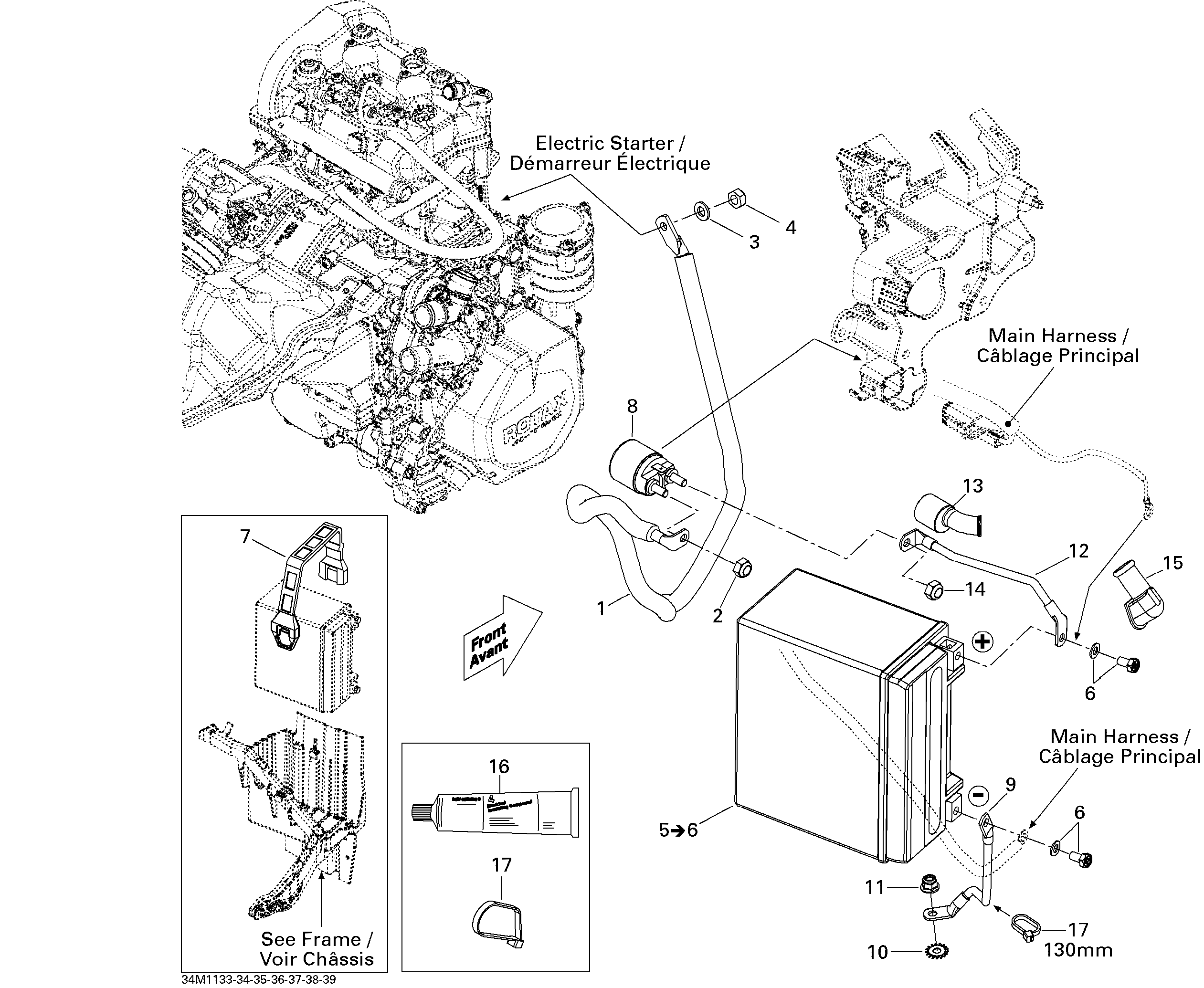

10- Battery And Starter для BRP Ski-Doo Expedition Sport 600ACE - 2011
-
№АртикулНазвание
-
1515176966 Battery WireBattery Wire
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5296000295 Battery 18 Amp. Includes 5 to 6Battery 18 Amp. Includes 5 to 6
-
6295500849 Battery Fastener KitBattery Fastener Kit
-
7515176944 StrapStrap
-
8515176942 Starter RelayStarter Relay
-
9515176943 Ground WireGround Wire
-
10250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12515177007 Battery WireBattery Wire
-
13515175919 Protector CapProtector Cap
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15710000495 Protector CapProtector Cap
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
17293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
17293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17293750008 Tie-Rap 350 mmTie-Rap 350 mm
