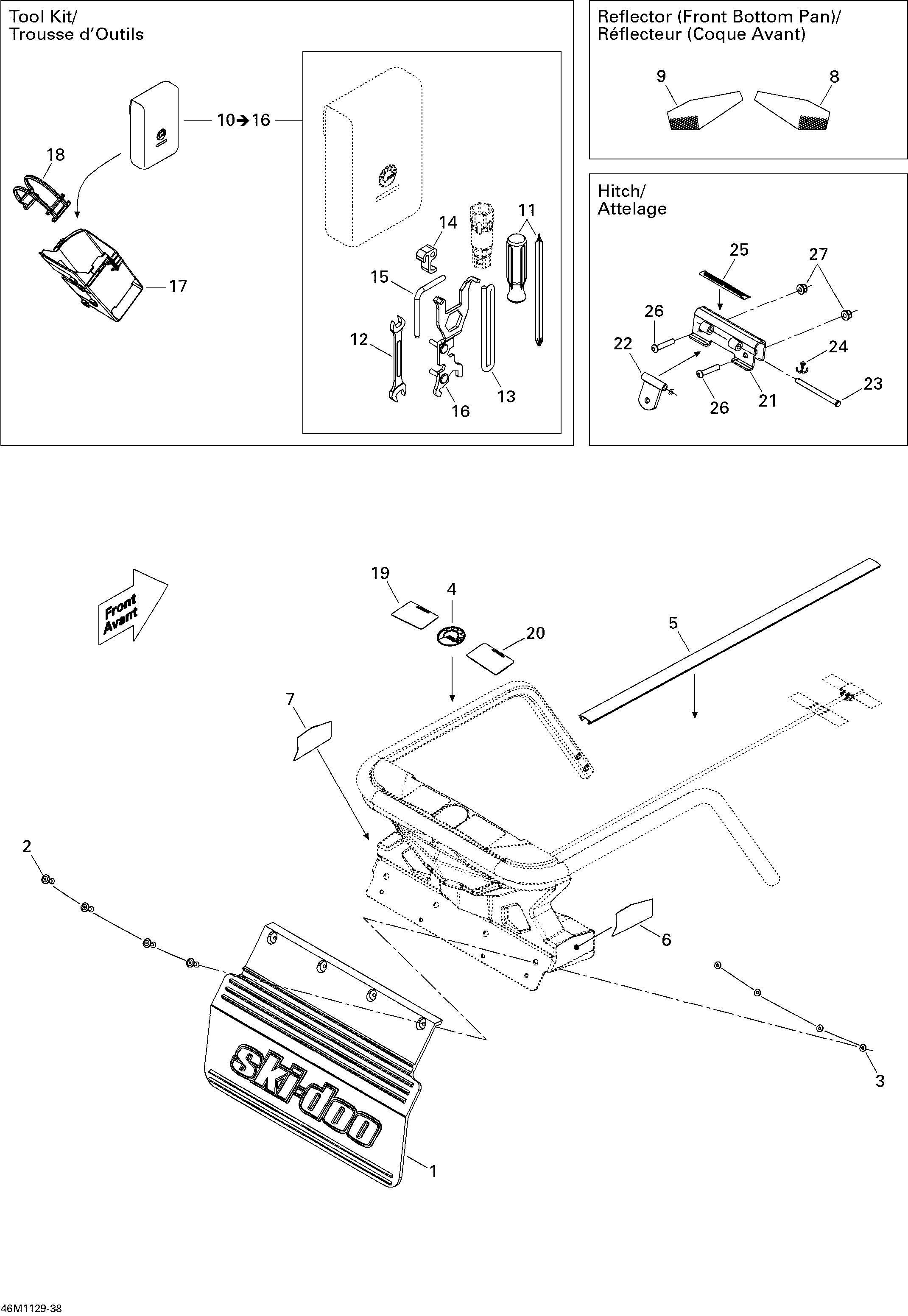

09- Utilities для BRP Ski-Doo Expedition Sport 600ACE - 2011
-
№АртикулНазвание
-
1520000606 Snow GuardSnow Guard
-
2293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
6520000881 RH Reflector. North AmericaRH Reflector. North America
-
7520000880 LH Reflector. North AmericaLH Reflector. North America
-
8520000718 RH Front ReflectorRH Front Reflector
-
9520000719 LH Front ReflectorLH Front Reflector
-
10529000054 Tool Kit. Includes 10 to 16Tool Kit. Includes 10 to 16
-
11529000004 Screw DriverScrew Driver
-
12529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
13412500200 Starter Rope, MeterStarter Rope, Meter
-
14529019400 Starter GripStarter Grip
-
15520001028 Spacing ToolSpacing Tool
-
16520000988 Wrench SuspensionWrench Suspension
-
17520000894 Tool Kit RackTool Kit Rack
-
18520000528 LatchLatch
-
19516004583 LH Warning Decal, SecurityLH Warning Decal, Security
-
20516004605 RH Warning Decal, SecurityRH Warning Decal, Security
-
21511000768 SupportSupport
-
22511000521 Hitch Plate WeldedHitch Plate Welded
-
23511000520 Clevis PinClevis Pin
-
24371800200 Cotter PinCotter Pin
-
25516004568 Warning Decal, SecurityWarning Decal, Security
-
26205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
27233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
