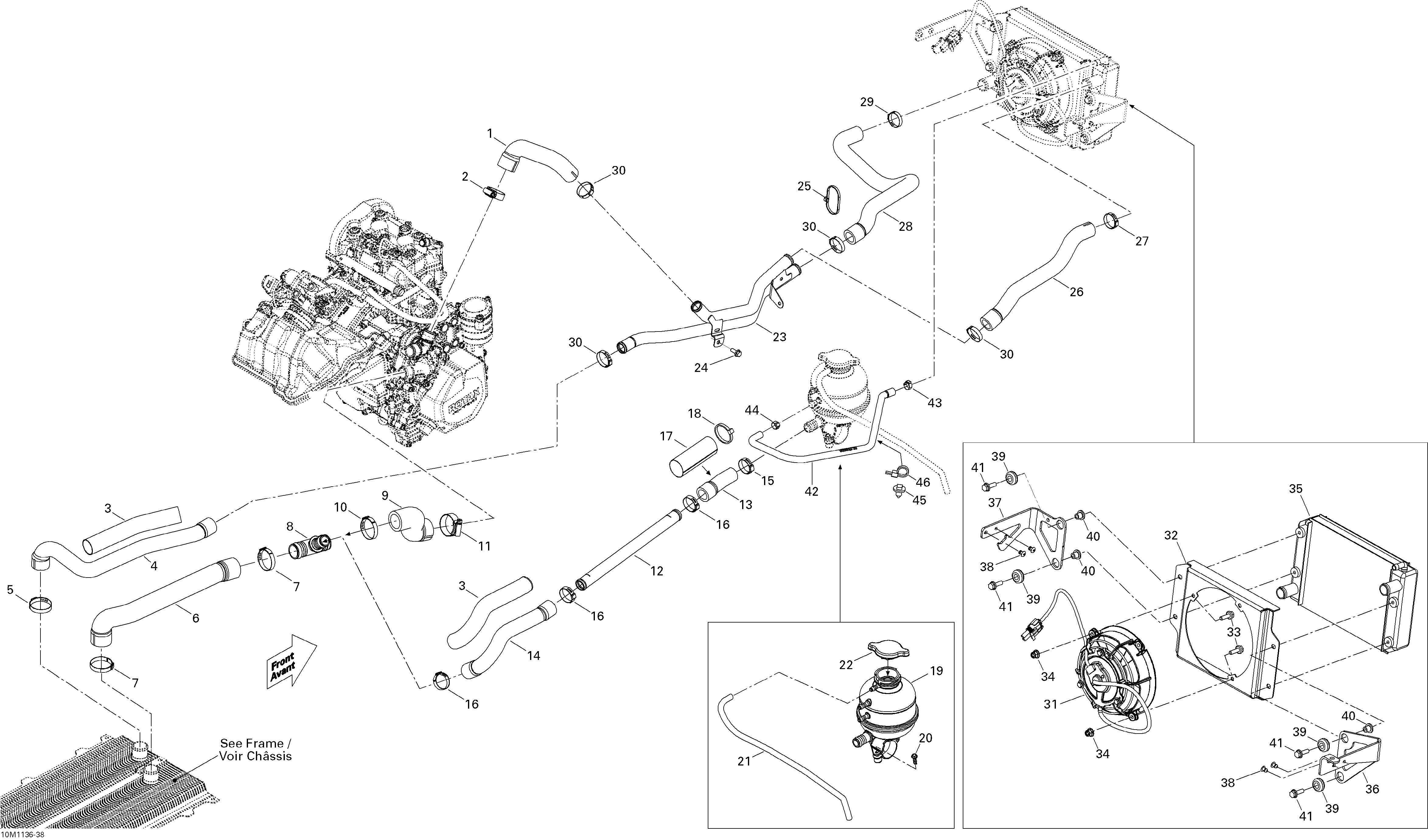

01- Cooling System для BRP Ski-Doo Grand Touring Sport 600ACE - 2011
-
№АртикулНазвание
-
1509000564 Hose-Outlet EngineHose-Outlet Engine
-
2509000443 Aba Gear ClampAba Gear Clamp
-
3509000513 Protector Tube 32 mmProtector Tube 32 mm
-
4509000634 HoseHose
-
5509000529 Oetiker Gear ClampOetiker Gear Clamp
-
6509000697 Radiator Return HoseRadiator Return Hose
-
7509000529 Oetiker Gear ClampOetiker Gear Clamp
-
8509000372 T-FittingT-Fitting
-
9509000565 Engine Inlet HoseEngine Inlet Hose
-
10509000529 Oetiker Gear ClampOetiker Gear Clamp
-
11509000443 Aba Gear ClampAba Gear Clamp
-
12509000644 PipePipe
-
13509000698 Hose-RadiatorHose-Radiator
-
14509000563 HoseHose
-
15509000442 Oetiker Gear ClampOetiker Gear Clamp
-
16293650099 Oetiker Gear ClampOetiker Gear Clamp
-
17509000730 Protector Tube 31.75 Mm - 90mmProtector Tube 31.75 Mm - 90mm
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19509000368 Coolant TankCoolant Tank
-
20241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
21276000048 Hose 6 mmHose 6 mm
-
22509000180 Pressure CapPressure Cap
-
23509000629 Water PipeWater Pipe
-
24207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26509000636 Radiator HoseRadiator Hose
-
27293650165 Oetiker ClampOetiker Clamp
-
28509000637 Radiator HoseRadiator Hose
-
29293650165 Oetiker ClampOetiker Clamp
-
30509000735 ClampClamp
-
31709200230 FanFan
-
32509000714 Fan SupportFan Support
-
33207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35509000756 RadiatorRadiator
-
36509000754 RH Radiator SupportRH Radiator Support
-
37509000755 LH Radiator SupportLH Radiator Support
-
38390909100 Avex RivetAvex Rivet
-
39293720053 GrommetGrommet
-
40293900100 BushingBushing
-
41207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
42509000750 Breather HoseBreather Hose
-
43293650046 Oetiker ClampOetiker Clamp
-
44293650025 Oetiker Gear ClampOetiker Gear Clamp
-
45293730018 Mount DartMount Dart
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
