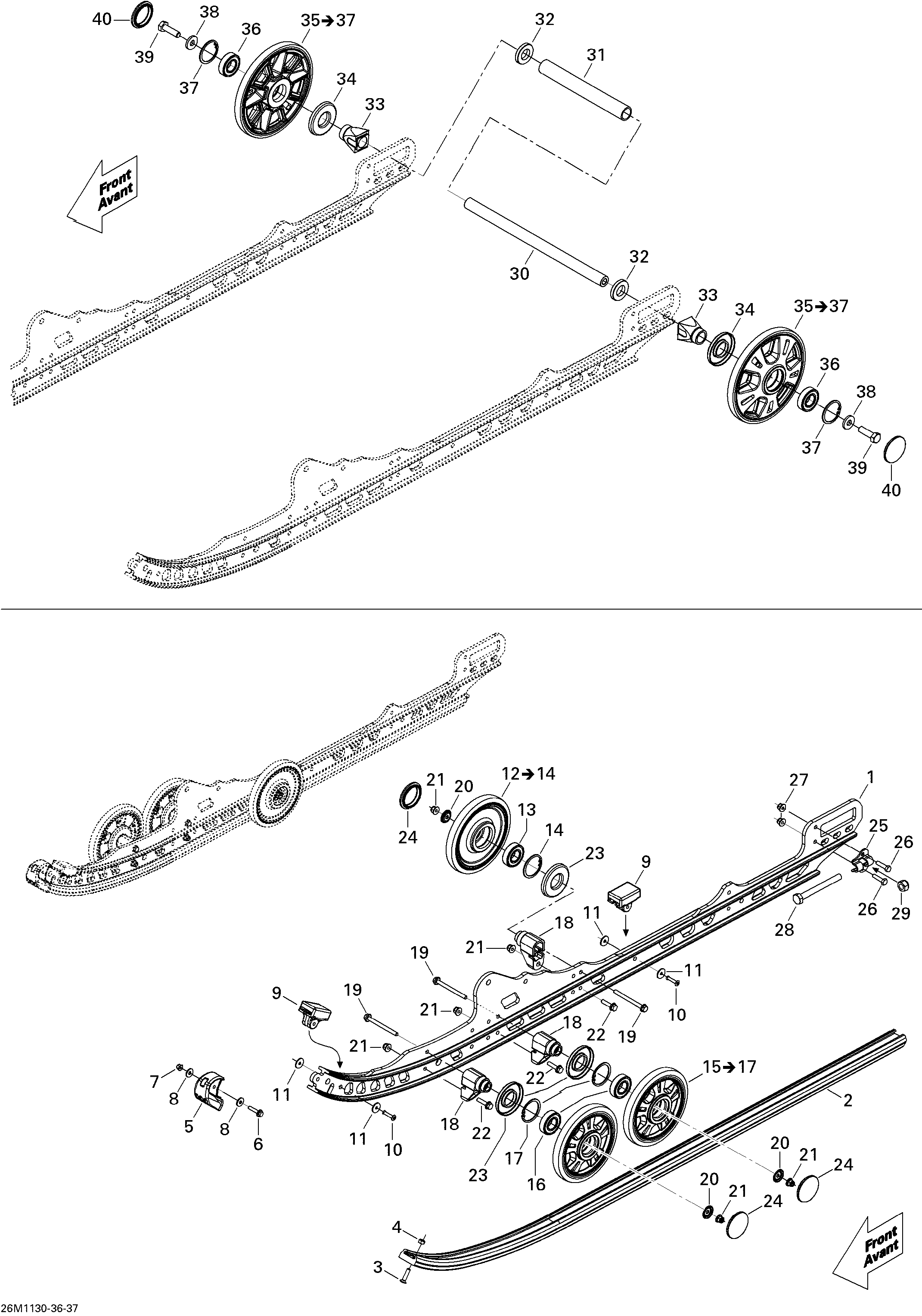

08- Rear Suspension для BRP Ski-Doo Grand Touring Sport 600ACE - 2011
-
№АртикулНазвание
-
1503192738 Runner 137''Runner 137''
-
2503191619 SliderSlider
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191311 Wheel Ass'y, 147 mm. Includes 12 to 14Wheel Ass'y, 147 mm. Includes 12 to 14
-
13503190396 Ball BearingBall Bearing
-
14415129371 Retaining RingRetaining Ring
-
15503191624 Wheel Ass'y, 147 mm, Full Moon. Includes 15 to 17Wheel Ass'y, 147 mm, Full Moon. Includes 15 to 17
-
16503190396 Ball BearingBall Bearing
-
17415129371 Retaining RingRetaining Ring
-
18503192793 Molded SupportMolded Support
-
19250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
20503191820 Wheel Cup M6Wheel Cup M6
-
21250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
22250000476 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
23503190434 Labyrinth SealLabyrinth Seal
-
24570063600 Wheel CapWheel Cap
-
25503192814 TensionerTensioner
-
26250000479 Hex. Screw Cap Full Thread M6 X 25Hex. Screw Cap Full Thread M6 X 25
-
27233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
28250000481 Hex. Screw Cap Full Thread M10 X 100Hex. Screw Cap Full Thread M10 X 100
-
29250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
30503190429 Rear AxleRear Axle
-
31503191108 SpacerSpacer
-
32503190432 WasherWasher
-
33503190428 Rear Wheel SpacerRear Wheel Spacer
-
34503190434 Labyrinth SealLabyrinth Seal
-
35503191627 Wheel, 180 mm, Full Moon. Includes 35 to 37Wheel, 180 mm, Full Moon. Includes 35 to 37
-
36503190396 Ball BearingBall Bearing
-
37415129371 Retaining RingRetaining Ring
-
38503190439 WasherWasher
-
39250000019 Hex. Screw With NylonHex. Screw With Nylon
-
40570063600 Wheel CapWheel Cap
