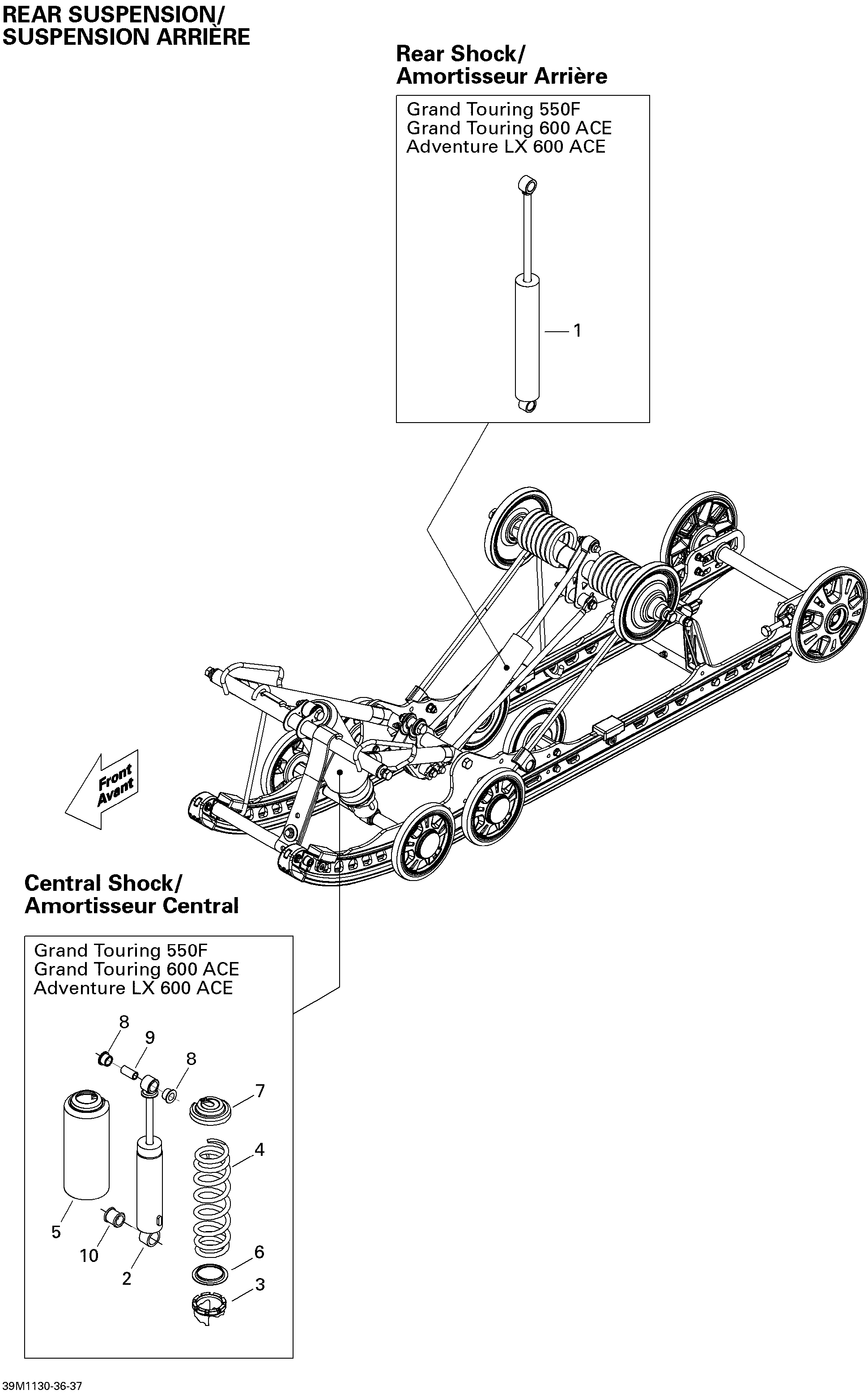

08- Rear Suspension Shocks для BRP Ski-Doo Grand Touring Sport 600ACE - 2011
-
№АртикулНазвание
-
1503192295 Rear Shock HPGRear Shock HPG
-
2503192266 Center ShockCenter Shock
-
3505070150 Adjustment CamAdjustment Cam
-
4503191882 SpringSpring
-
5503191126 ProtectorProtector
-
6503191872 Spring GuideSpring Guide
-
7706200881 Spring StopperSpring Stopper
-
8503189117 CushionCushion
-
9503189282 BushingBushing
-
10503189271 CushionCushion
