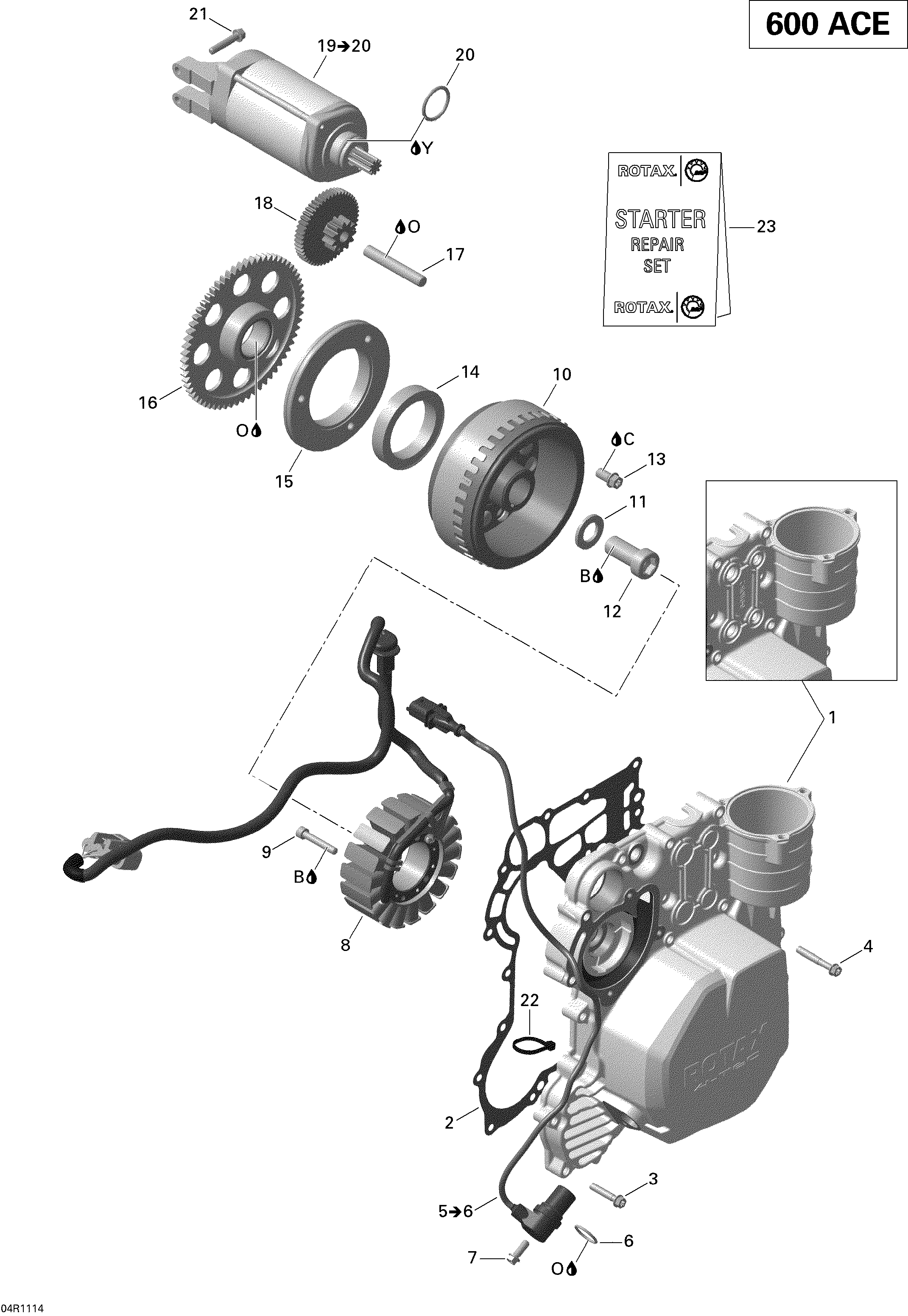

03- Magneto And Electric Starter Grand Touring для BRP Ski-Doo Grand Touring Sport 600ACE - 2011
-
№АртикулНазвание
-
1420911052 CoverCover
-
2420431640 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
5420966570 Crankshaft Position Sensor Ass'y. Includes 5 to 6Crankshaft Position Sensor Ass'y. Includes 5 to 6
-
6420431580 O-RingO-Ring
-
7420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
8420296908 Stator Plate 420W. EuropeStator Plate 420W. Europe
-
8420685635 Stator Plate 650W. North AmericaStator Plate 650W. North America
-
9420241956 Allen Screw M6 X 40Allen Screw M6 X 40
-
10420685700 Magneto Flywheel 420W. EuropeMagneto Flywheel 420W. Europe
-
10420685646 Magneto Flywheel. North AmericaMagneto Flywheel. North America
-
11420627270 ShimShim
-
12420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
13420440854 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
14420659113 Sprag ClutchSprag Clutch
-
15420659261 Sprag Clutch HousingSprag Clutch Housing
-
16420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
17420229475 Needle PinNeedle Pin
-
18420634741 Double GearDouble Gear
-
19420892423 Starter Ass'y. Includes 19 to 20Starter Ass'y. Includes 19 to 20
-
20420250140 O-RingO-Ring
-
21420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
22420866714 Tie RapTie Rap
-
23420881140 Carbon Brush SetCarbon Brush Set
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
C413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
Y420297616 Klueber Paste, 46 MR 401, 60 gKlueber Paste, 46 MR 401, 60 g
