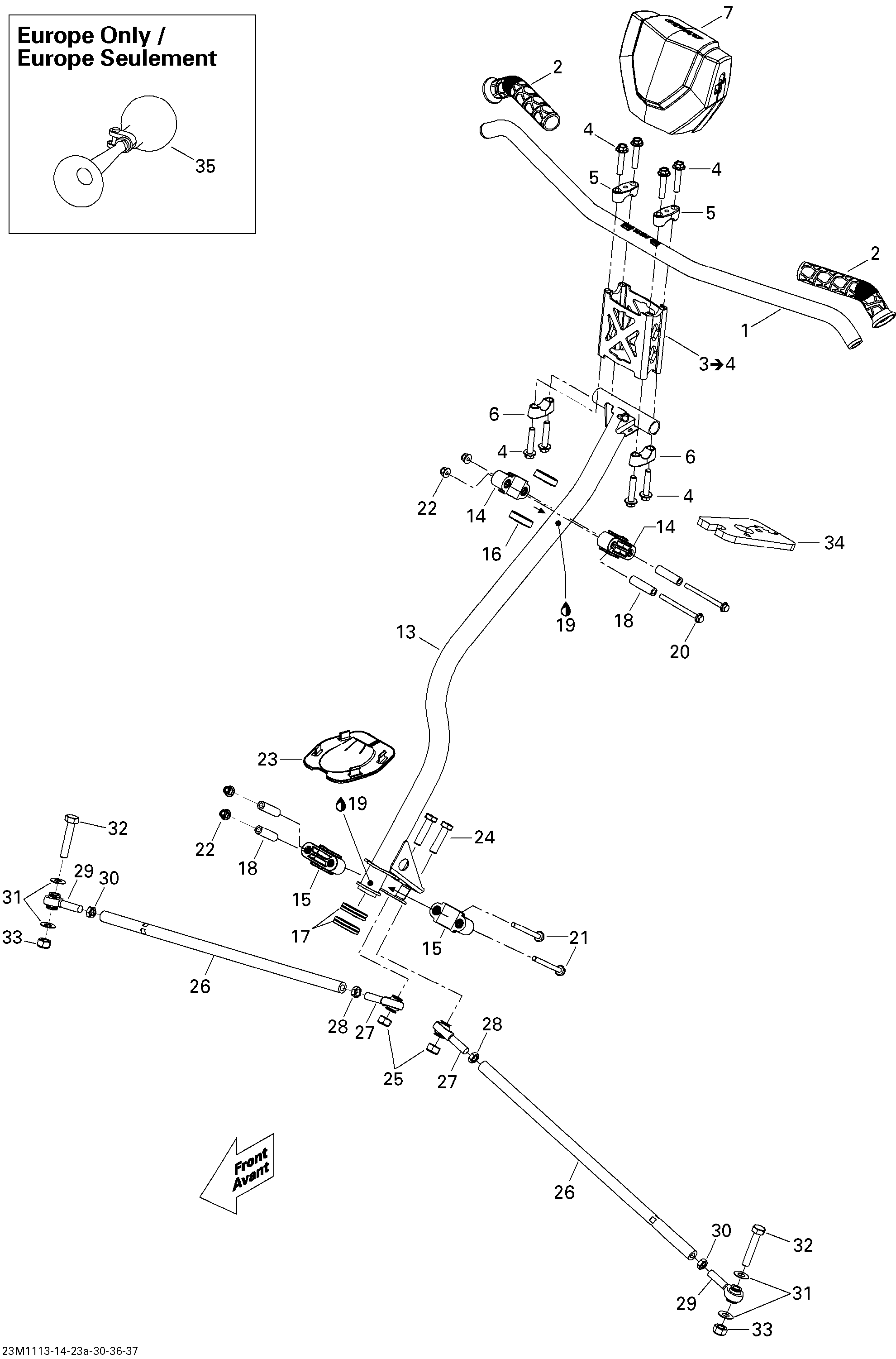

07- Steering для BRP Ski-Doo Grand Touring Sport 600ACE - 2011
-
№АртикулНазвание
-
1506152362 HandlebarHandlebar
-
2506152226 GripGrip
-
3860200268 Handlebar Extension Kit. Includes 3 to 4Handlebar Extension Kit. Includes 3 to 4
-
4250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
5506152395 Steering SupportSteering Support
-
6506152395 Steering SupportSteering Support
-
7506152249 Steering PadSteering Pad
-
13506152469 Main TubeMain Tube
-
14506152508 Upper Half-HousingUpper Half-Housing
-
15506152217 Lower Half-HousingLower Half-Housing
-
16506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
17506152218 Lower Vibration RingLower Vibration Ring
-
18506152297 Housing BushingHousing Bushing
-
19293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
20207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
21207667044 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152496 Tie-RodTie-Rod
-
27506152081 LH Thread Ball JointLH Thread Ball Joint
-
28250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
29506152019 RH Thread Ball JointRH Thread Ball Joint
-
30732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
31506152194 WasherWasher
-
32207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34506152521 CushionCushion
-
35549011291 Horn. EuropeHorn. Europe
