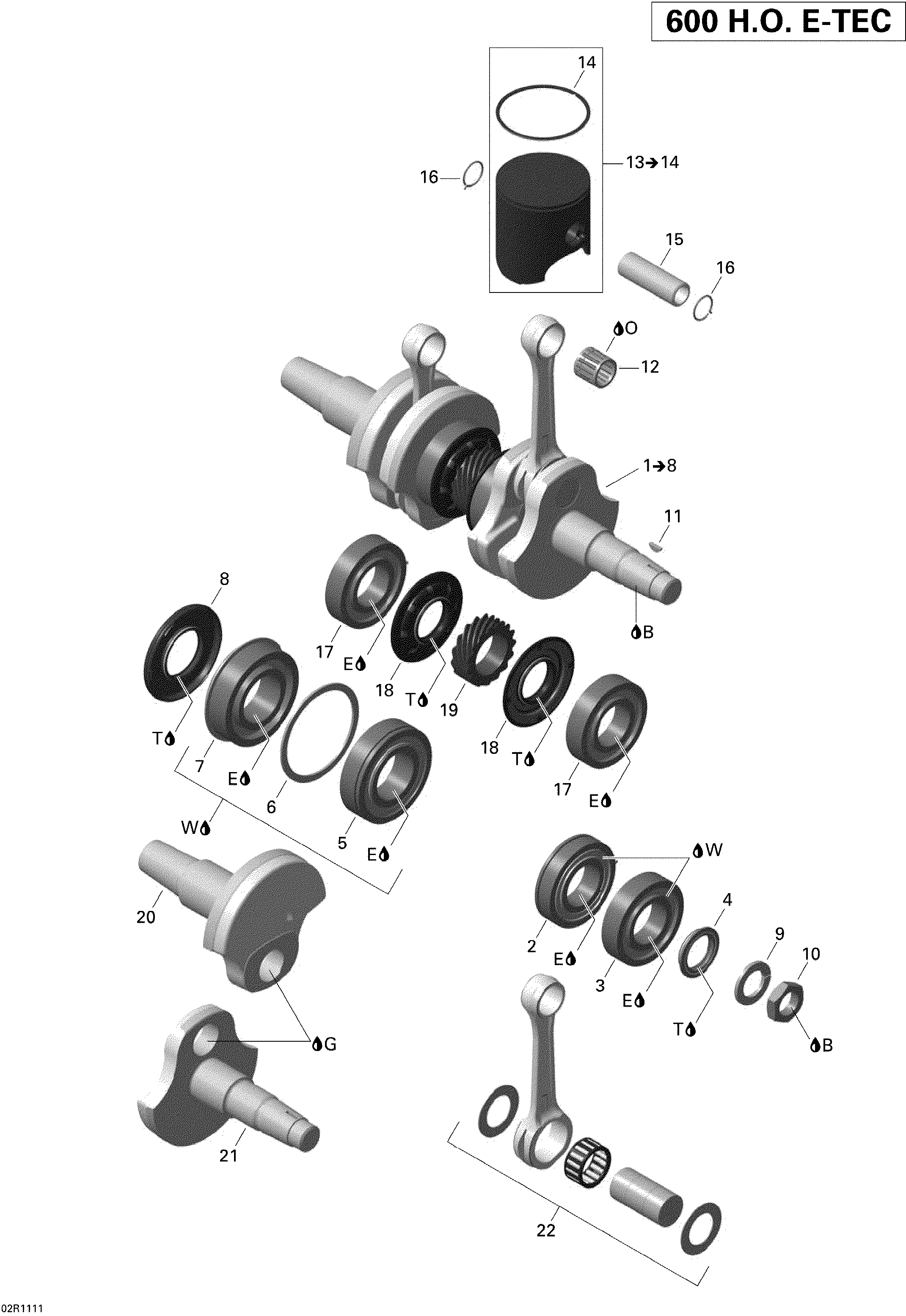

01- Crankshaft And Pistons (Tundra Xtreme) для BRP Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS - 2011
![](/wa-data/public/shop/sheme/bombardier/ski-doo/35575e34-ac81-4a95-aca9-a55edc929c18.png)
-
№АртикулНазвание
-
1420890954 Crankshaft Ass'y. Includes 1 to 8Crankshaft Ass'y. Includes 1 to 8
-
2420832633 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931793 Oil SealOil Seal
-
5420832602 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832700 Ball BearingBall Bearing
-
8420931284 Oil SealOil Seal
-
9420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
10420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
11420246015 Woodruff KeyWoodruff Key
-
12420832445 Needle BearingNeedle Bearing
-
13420892386 Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14
-
14420815295 Semi-Trapez RingSemi-Trapez Ring
-
15420916412 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
22420890958 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23420890959 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
E293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
G413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
T420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
W293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
