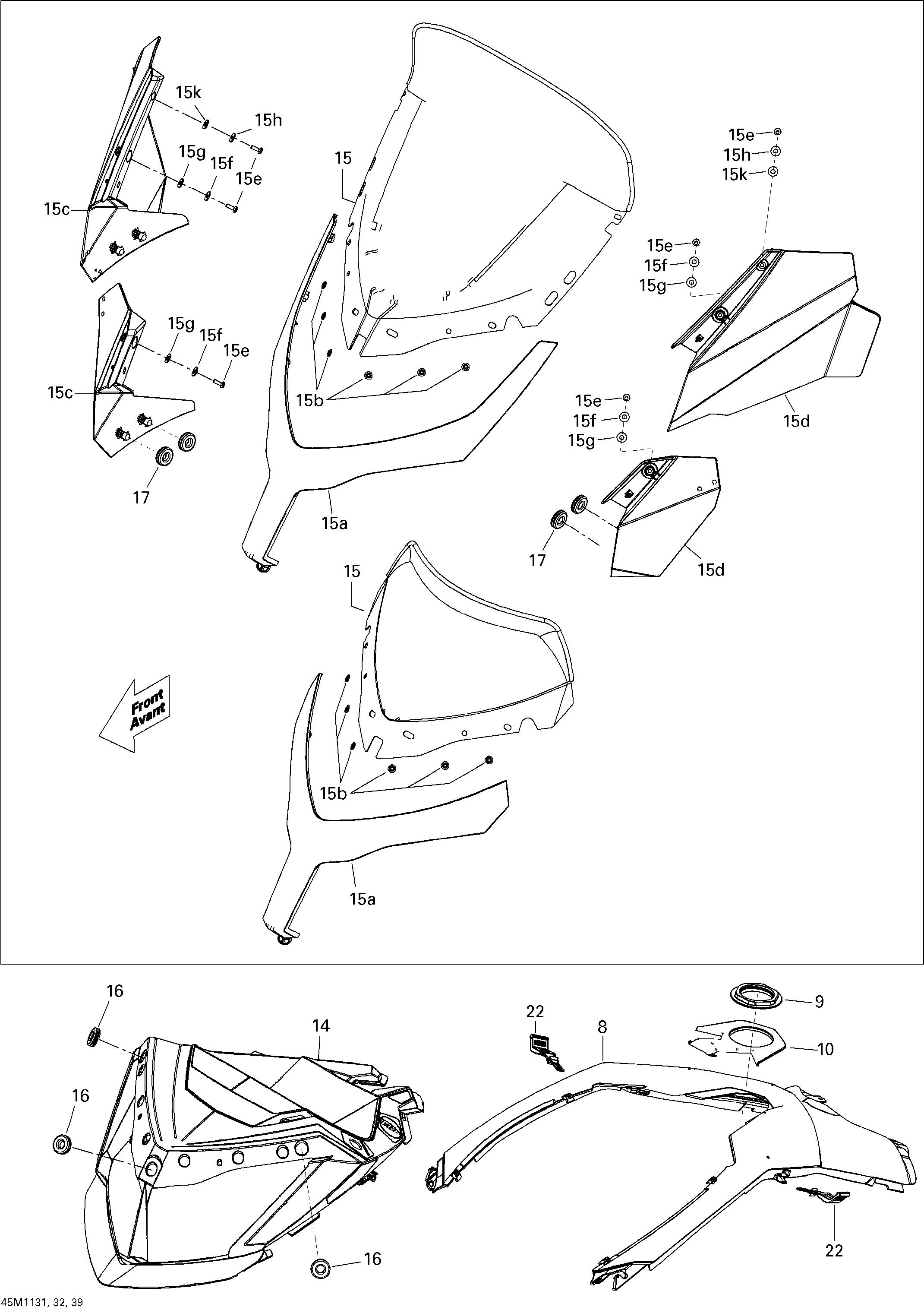

09- Windshield And Console для BRP Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS - 2011
-
№АртикулНазвание
-
8517303741 Console, BlackConsole, Black
-
8517304206 Console, YellowConsole, Yellow
-
9517304518 Console NutConsole Nut
-
10517304027 Cap ConsoleCap Console
-
14517303742 Indicator SupportIndicator Support
-
15517303888 Low WindshieldLow Windshield
-
15a517303959 Low Windshield SupportLow Windshield Support
-
15b732610072 Push NutPush Nut
-
16517303756 GrommetGrommet
-
22517304093 Center Panel LatchCenter Panel Latch
