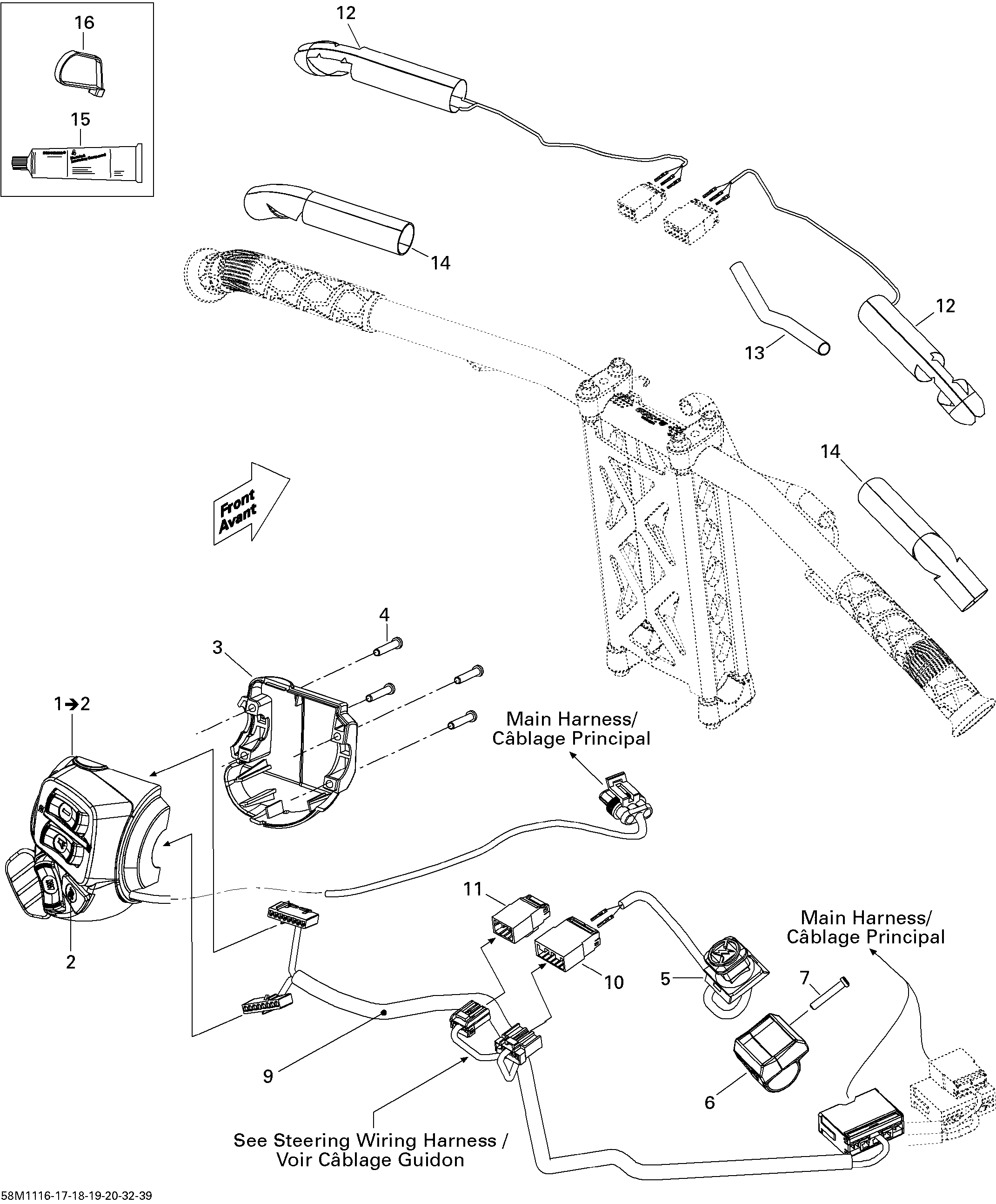

10- Electrical Accessories, Steering для BRP Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS - 2011
-
№АртикулНазвание
-
1515177019 LH Housing. Includes 1 to 2LH Housing. Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3515175926 Housing Switch PlateHousing Switch Plate
-
4250000263 Torx Screw #8-18Torx Screw #8-18
-
5515176988 Kill SwitchKill Switch
-
6515176825 Kill Switch SupportKill Switch Support
-
7250000263 Torx Screw #8-18Torx Screw #8-18
-
9515176867 Steering Wiring Harness Ass'ySteering Wiring Harness Ass'y
-
10515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
11515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
12506152371 Heating ElementHeating Element
-
13515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
14506152360 InsulantInsulant
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
16293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
16293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
