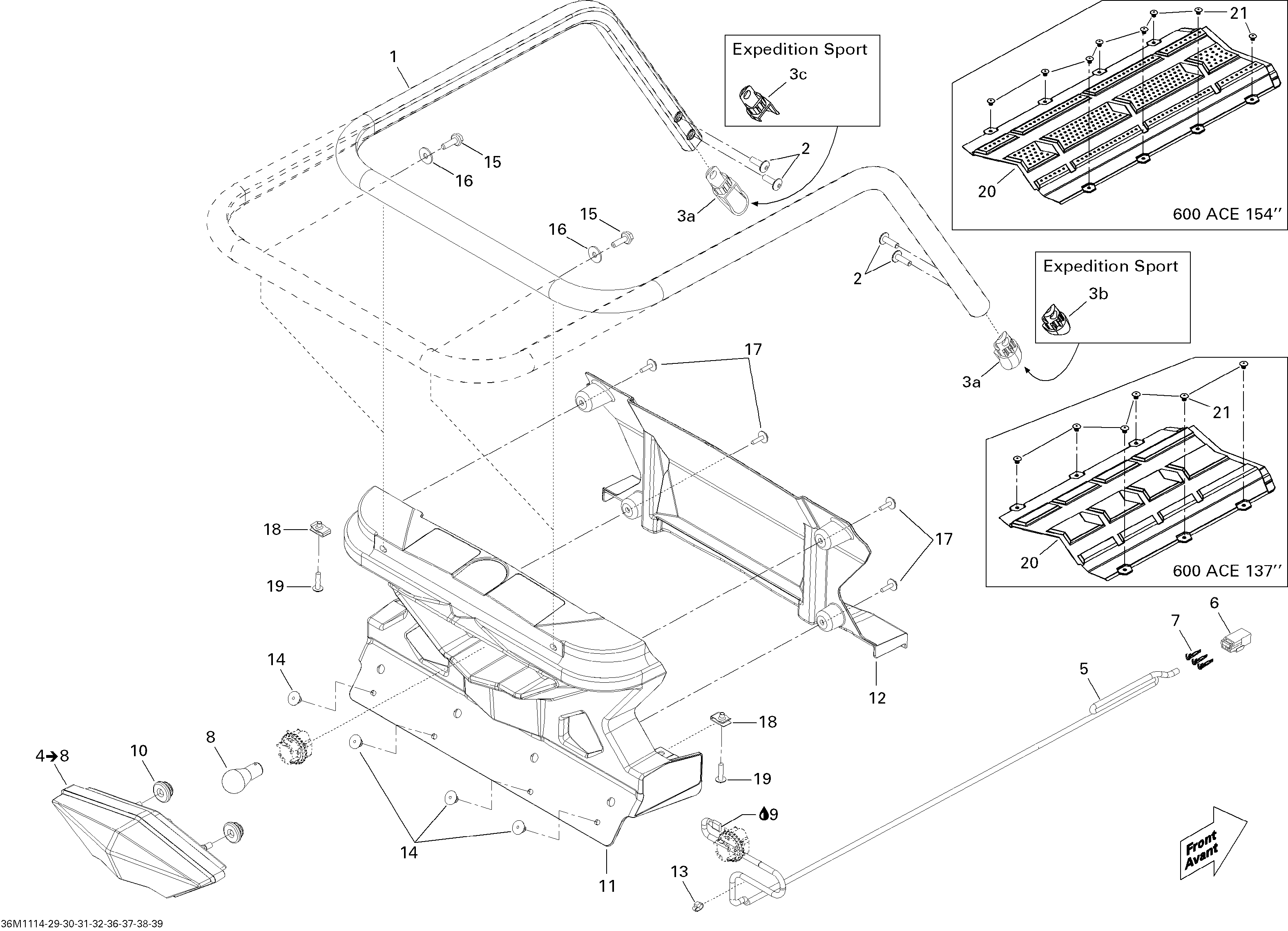

09- Luggage Rack для BRP Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS - 2011
-
№АртикулНазвание
-
1511000706 Luggage RackLuggage Rack
-
2250000420 Socket Screw M6x20Socket Screw M6x20
-
3a520000899 CapCap
-
4520000679 Rear Light. Includes 4 to 8Rear Light. Includes 4 to 8
-
5520000680 Wiring HarnessWiring Harness
-
6515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
7515175232 Male TerminalMale Terminal
-
8520000758 BulbBulb
-
9293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
10705003666 Rubber GrommetRubber Grommet
-
11511000625 Rear Light SupportRear Light Support
-
12511000701 Cover SupportCover Support
-
13293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16234062410 Flat Washer 6 mmFlat Washer 6 mm
-
17250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
18250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19250000130 Torx Screw M5 X 20Torx Screw M5 X 20
