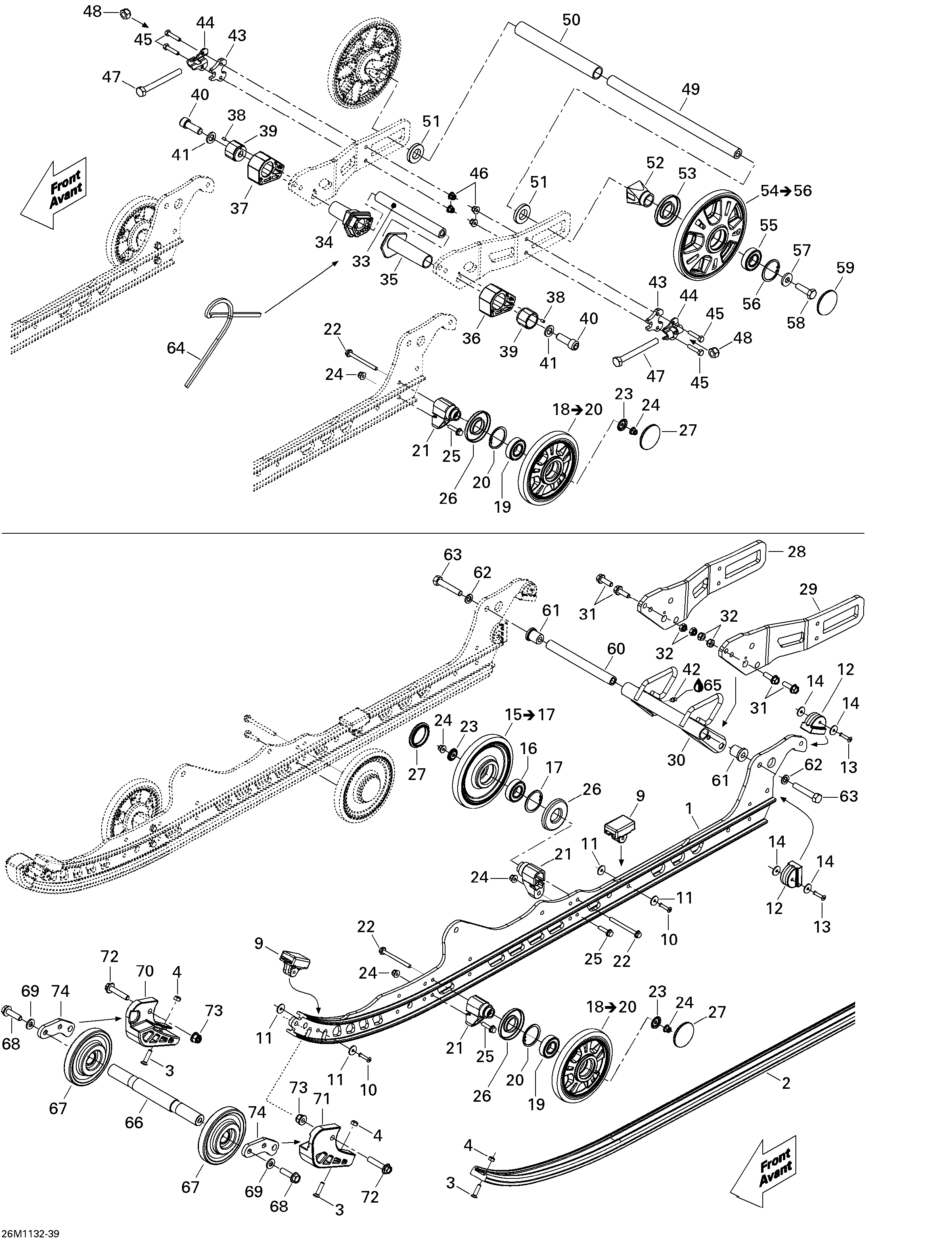

08- Rear Suspension для BRP Ski-Doo Tundra Xtreme 600HO ETEC XP-LTS - 2011
-
№АртикулНазвание
-
1503192617 Runner MachinedRunner Machined
-
2503192618 Slider 154Slider 154
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12503191291 Rubber StopperRubber Stopper
-
13293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
14503191273 WasherWasher
-
15503191311 Wheel Ass'y, 147 mm. Includes 15 to 17Wheel Ass'y, 147 mm. Includes 15 to 17
-
16503190396 Ball BearingBall Bearing
-
17415129371 Retaining RingRetaining Ring
-
18503191152 Wheel Ass'y, 147 mm. Includes 18 to 20Wheel Ass'y, 147 mm. Includes 18 to 20
-
19503190396 Ball BearingBall Bearing
-
20415129371 Retaining RingRetaining Ring
-
21503192793 Molded SupportMolded Support
-
22250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
23503191820 Wheel Cup M6Wheel Cup M6
-
24250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
25250000476 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
26503190434 Labyrinth SealLabyrinth Seal
-
27570063600 Wheel CapWheel Cap
-
28503192435 Rail Pivot RHRail Pivot RH
-
29503192434 Rail Pivot LHRail Pivot LH
-
30503192647 Runner PivotRunner Pivot
-
31207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
32232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
33503191608 Cam AxelCam Axel
-
34503191190 RH Spring CamRH Spring Cam
-
35503191668 LH Spring CamLH Spring Cam
-
36503191425 LH BlockLH Block
-
37503191426 RH BlockRH Block
-
38250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
39503189488 Block GuideBlock Guide
-
40205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
41503189148 WasherWasher
-
42408200700 Grease FittingGrease Fitting
-
43503190379 Tensioner SpacerTensioner Spacer
-
44503192814 TensionerTensioner
-
45250000480 Hex Cap Screw DIN.931Hex Cap Screw DIN.931
-
46233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
47250000481 Hex. Screw Cap Full Thread M10 X 100Hex. Screw Cap Full Thread M10 X 100
-
48250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
49503190429 Rear AxleRear Axle
-
50503191736 Rear Spacer, LongRear Spacer, Long
-
51503190432 WasherWasher
-
52503190428 Rear Wheel SpacerRear Wheel Spacer
-
53503190434 Labyrinth SealLabyrinth Seal
-
54503191742 Wheel 180 mm Ass'y, Black. Includes 54 to 56Wheel 180 mm Ass'y, Black. Includes 54 to 56
-
55503190396 Ball BearingBall Bearing
-
56415129371 Retaining RingRetaining Ring
-
57503190439 WasherWasher
-
58250000019 Hex. Screw With NylonHex. Screw With Nylon
-
59570063600 Wheel CapWheel Cap
-
60503191279 Lower ShaftLower Shaft
-
61503189324 CushionCushion
-
62503189564 WasherWasher
-
63207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
64503192282 Pivot SpringPivot Spring
-
65293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
66503192644 Front Wheel AxleFront Wheel Axle
-
67503192611 Wheel 100Wheel 100
-
68207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
69503189157 WasherWasher
-
70503192610 ProtectorProtector
-
71503192609 ProtectorProtector
-
72207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
73233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
74503192612 PlatePlate
