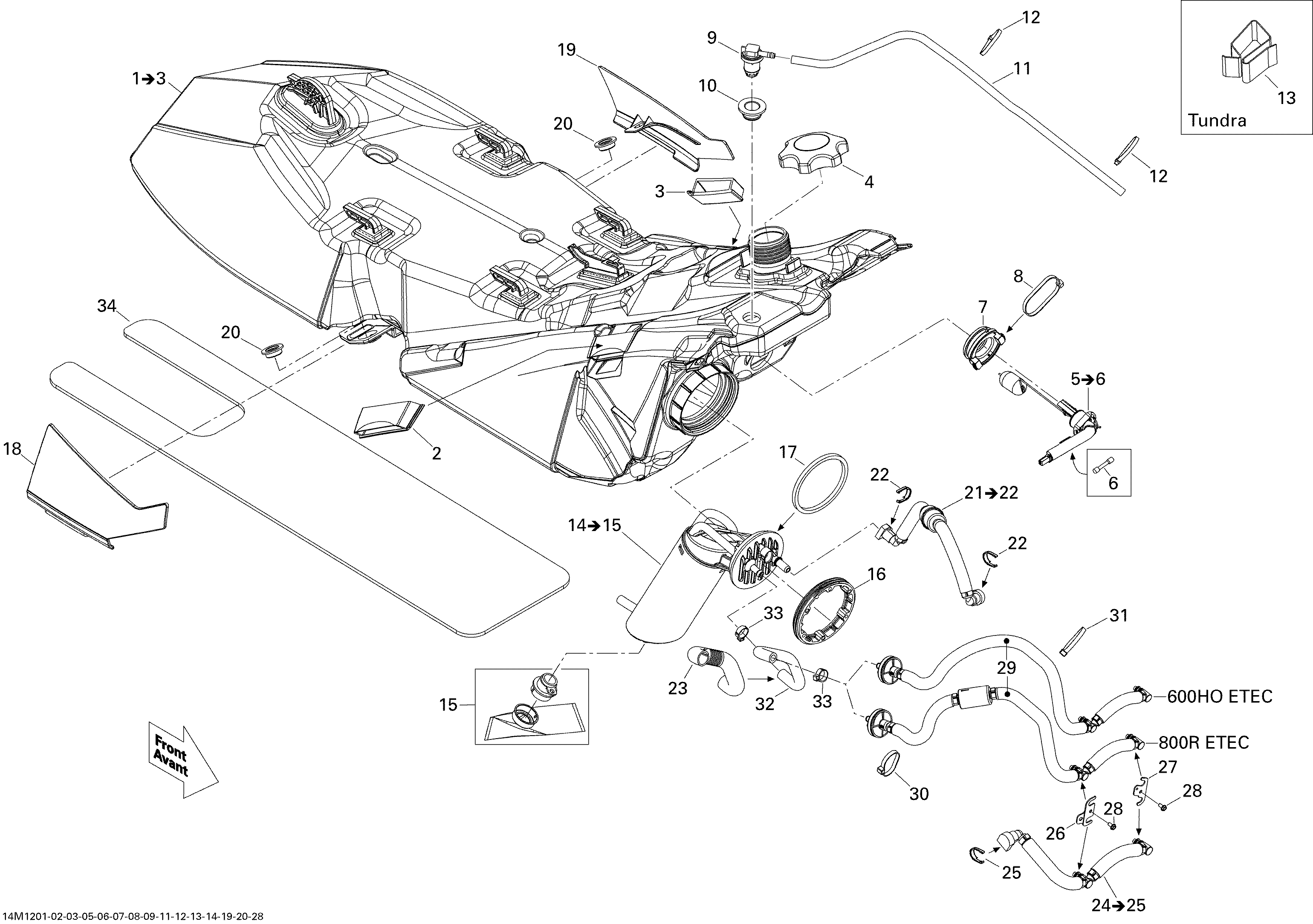

02- Fuel System для BRP Ski-Doo Freeride 137 & 146 & 154 800RETEC XP - 2012
-
№АртикулНазвание
-
1513033578 Fuel Tank Ass'y. Includes 1 to 3Fuel Tank Ass'y. Includes 1 to 3
-
2513033471 RH Panel ClipRH Panel Clip
-
3513033472 LH Panel ClipLH Panel Clip
-
4513033024 Fuel CapFuel Cap
-
5513033642 Fuel Level Sensor. Includes 5 to 6Fuel Level Sensor. Includes 5 to 6
-
6710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
7513033606 GrommetGrommet
-
8293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9513033188 Check ValveCheck Valve
-
10513033596 GrommetGrommet
-
11415080200 Hose, PolyurethaneHose, Polyurethane
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14513033643 Fuel Pump. Includes 14 to 15Fuel Pump. Includes 14 to 15
-
15415129451 Fuel FilterFuel Filter
-
16513033180 RingRing
-
17513033334 GasketGasket
-
18513033418 RH CapRH Cap
-
19513033419 LH CapLH Cap
-
20513033326 Shoulder BushingShoulder Bushing
-
21513033560 Hose Ass'y. Includes 21 to 22Hose Ass'y. Includes 21 to 22
-
22513033135 Locking ClipLocking Clip
-
23415080000 Tubing 16 mmTubing 16 mm
-
24513033594 Hose Ass'y. Includes 24 to 25Hose Ass'y. Includes 24 to 25
-
25513033135 Locking ClipLocking Clip
-
26513033542 BracketBracket
-
27513033593 BracketBracket
-
28207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
29513033637 Hose Ass'y. 800R E-TECHose Ass'y. 800R E-TEC
-
30414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
31414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
32513033544 Formed HoseFormed Hose
-
33293650047 Crimp ClampCrimp Clamp
-
34513033588 Insulating FoamInsulating Foam
