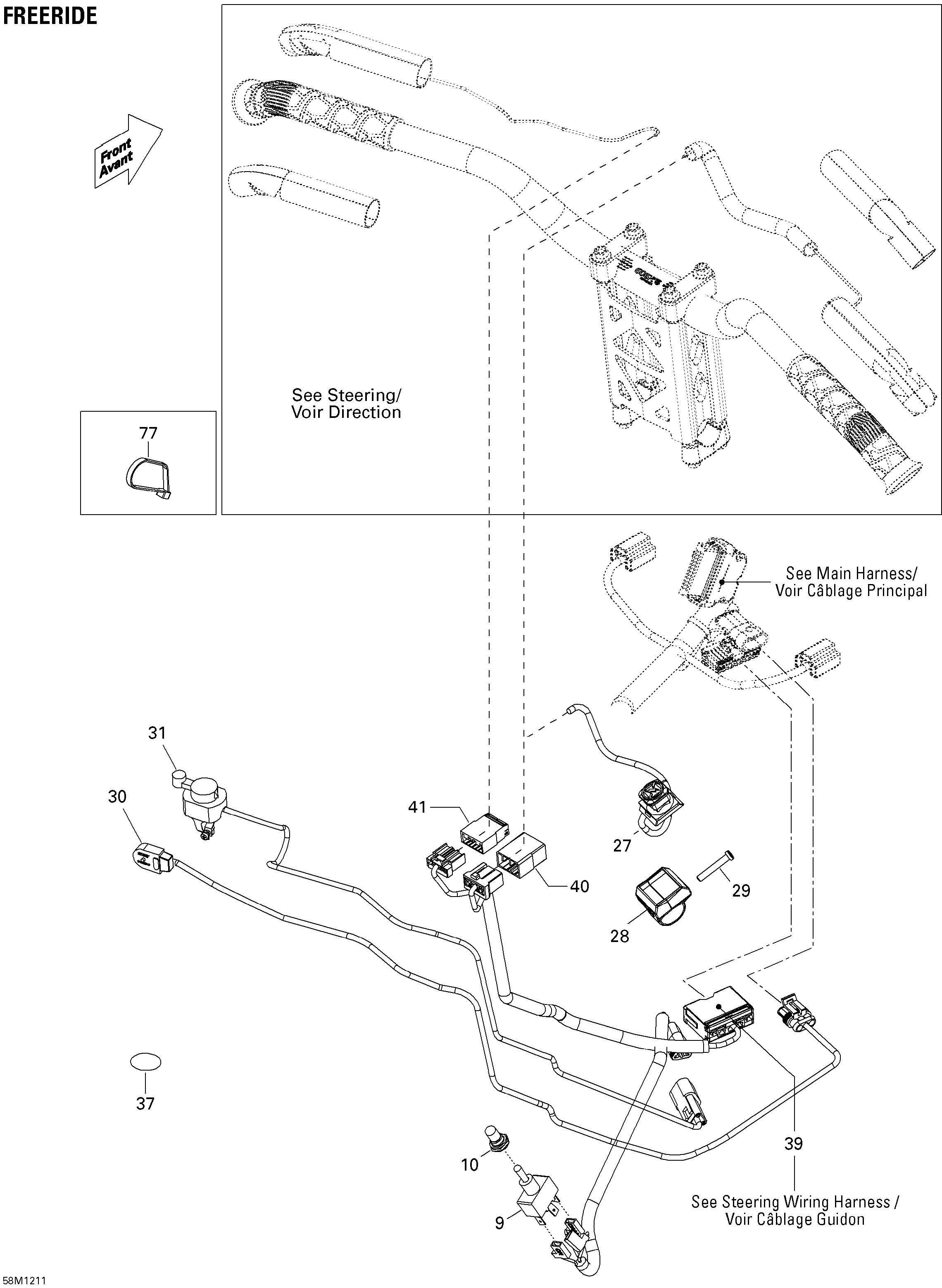

10- Electrical Accessories, Steering для BRP Ski-Doo Freeride 137 & 146 & 154 800RETEC XP - 2012
-
№АртикулНазвание
-
9410107300 Switch (Heating Grip). FREERIDESwitch (Heating Grip). FREERIDE
-
10515175281 Switch Cover. FREERIDESwitch Cover. FREERIDE
-
27515177061 Kill SwitchKill Switch
-
28515176825 Kill Switch SupportKill Switch Support
-
29250000263 Torx Screw #8-18Torx Screw #8-18
-
30515176987 Switch. FREERIDESwitch. FREERIDE
-
31515176997 Dimmer Switch. FREERIDEDimmer Switch. FREERIDE
-
39515176984 Steering Wiring Harness Ass'y. FREERIDESteering Wiring Harness Ass'y. FREERIDE
-
40515175817 Male Terminal Housing, 8 Circuits. FREERIDEMale Terminal Housing, 8 Circuits. FREERIDE
-
41515175662 Male Terminal Housing, 6 Circuits. FREERIDEMale Terminal Housing, 6 Circuits. FREERIDE
-
77414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
77293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
77293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
77293750009 Tie-Rap 173 mmTie-Rap 173 mm
