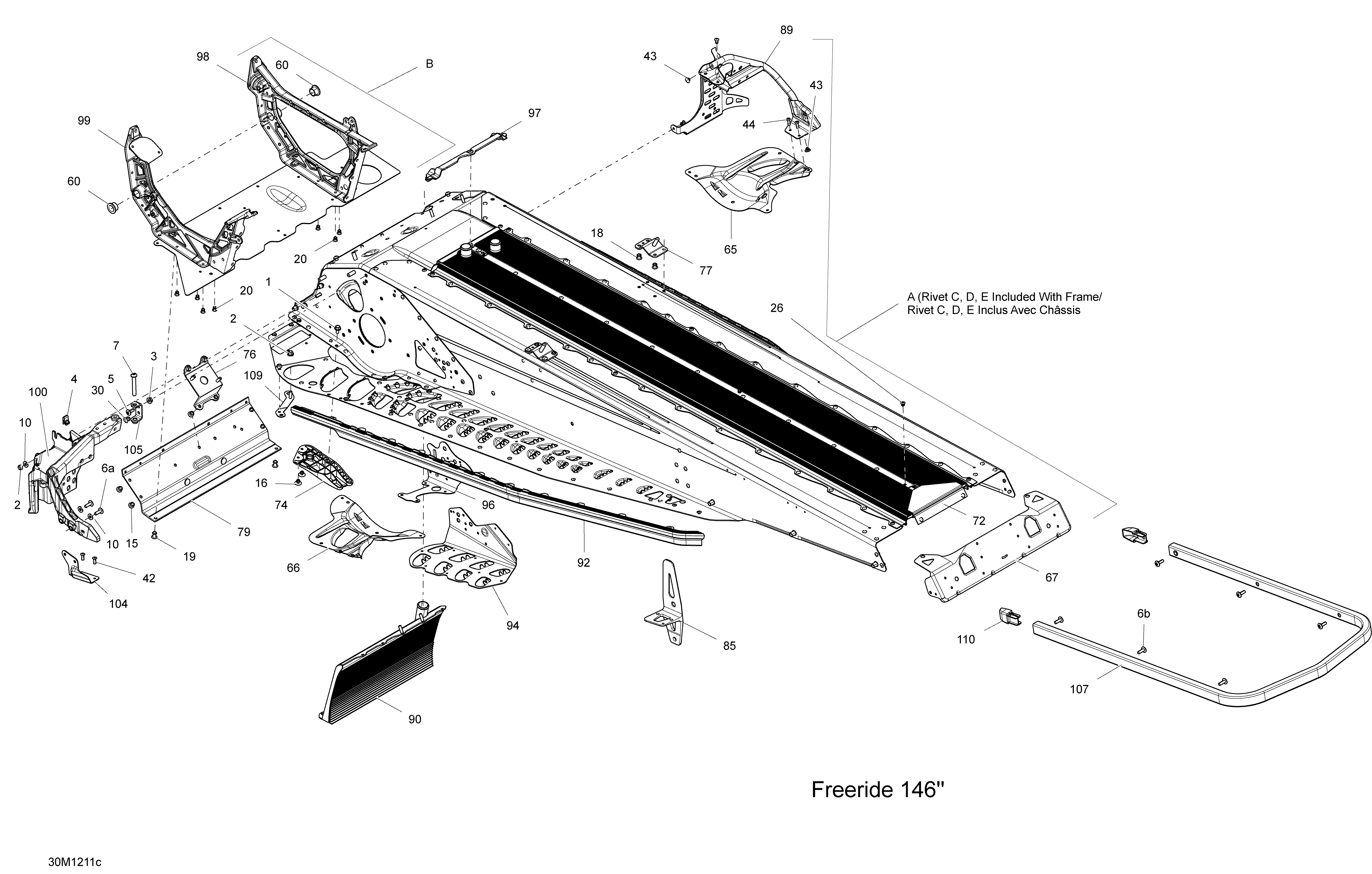

09- Frame 146'' для BRP Ski-Doo Freeride 137 & 146 & 154 800RETEC XP - 2012
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
4250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
7250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
10250200039 Flat WasherFlat Washer
-
15293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
19293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
20293150144 Stavex RivetStavex Rivet
-
26293150144 Stavex RivetStavex Rivet
-
30293150147 Hemlock RivetHemlock Rivet
-
42293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
43293730042 DartDart
-
44390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60505072690 Leg CushionLeg Cushion
-
65518324874 RH ReinforcementRH Reinforcement
-
66518324875 LH ReinforcementLH Reinforcement
-
67518325421 Rear CapRear Cap
-
72518326728 Rear Radiator Ass'y, 146''Rear Radiator Ass'y, 146''
-
74518325782 RH DeflectorRH Deflector
-
74518325783 LH DeflectorLH Deflector
-
76518325943 MAG Engine SupportMAG Engine Support
-
77518325973 RH Rear BaseRH Rear Base
-
77518325974 LH Rear BaseLH Rear Base
-
79518326198 Front MemberFront Member
-
85518324976 RH Suspension BracketRH Suspension Bracket
-
85518324977 LH Suspension BracketLH Suspension Bracket
-
89518326216 RH StirupRH Stirup
-
90518326485 Front RadiatorFront Radiator
-
92518326601 RH RollerRH Roller
-
92518326602 LH RollerLH Roller
-
94860200522 Aluminum Reinforcement Frame KitAluminum Reinforcement Frame Kit
-
96518326616 RH Front RetainerRH Front Retainer
-
96518326617 LH Front RetainerLH Front Retainer
-
97518326656 SealSeal
-
98518326795 RH MemberRH Member
-
99518326796 LH MemberLH Member
-
100518326820 LH StirupLH Stirup
-
104518326960 SupportSupport
-
105518326961 U-AttachU-Attach
-
107518326599 Rear Bumper, Black, 146''Rear Bumper, Black, 146''
-
109518326986 AttachAttach
-
110520000840 CapCap
-
6a250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
6b250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
A415129636 Frame FREERIDE 146''Frame FREERIDE 146''
-
B518326843 E-Module Ass'yE-Module Ass'y
-
C390909200 Avex RivetAvex Rivet
-
D390909100 Avex RivetAvex Rivet
-
E293150144 Stavex RivetStavex Rivet
