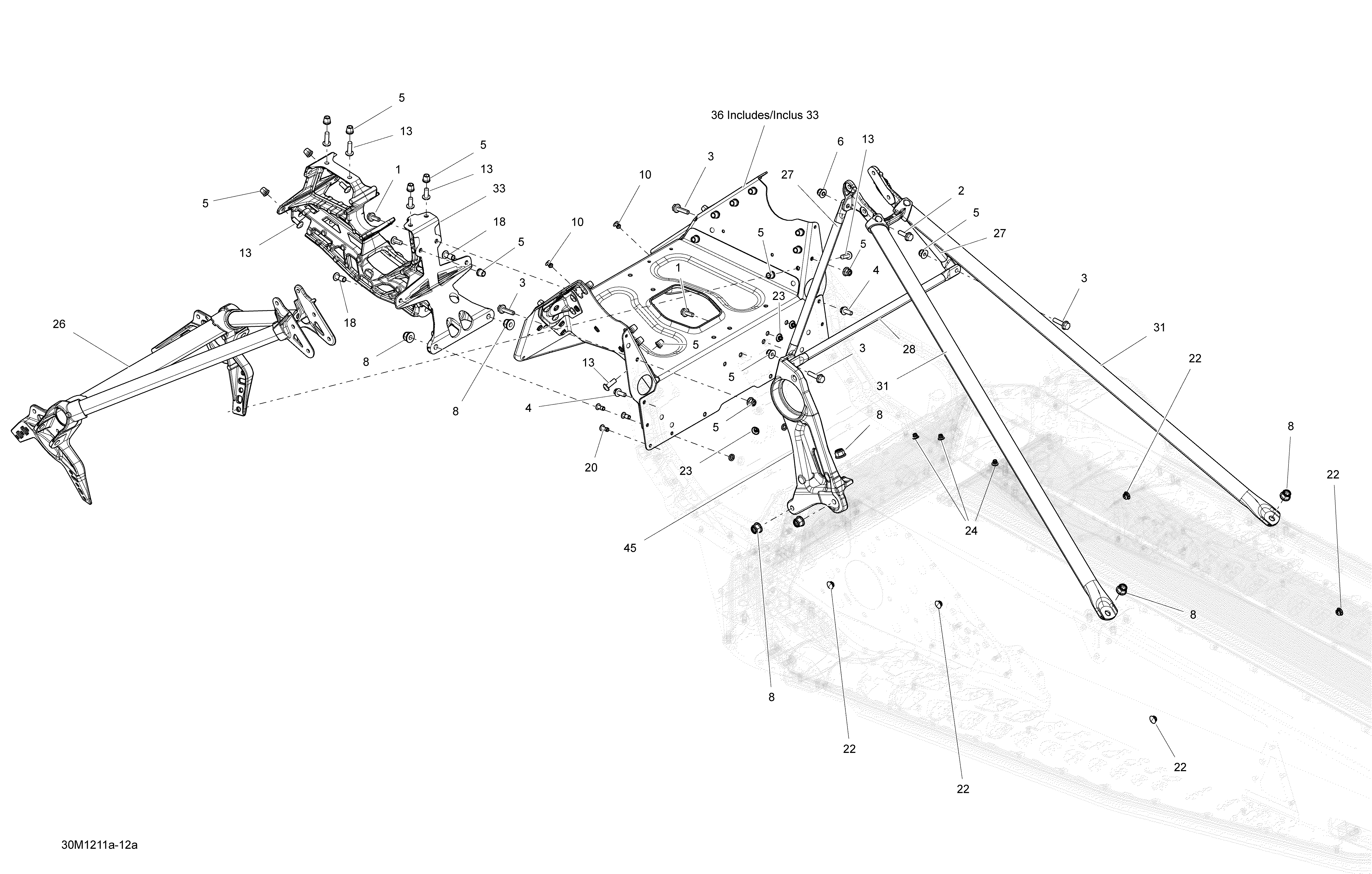

09- Frame Common Parts для BRP Ski-Doo Freeride 137 & 146 & 154 800RETEC XP - 2012
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10293150144 Stavex RivetStavex Rivet
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
20293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
22293730054 Dart 8 mm, WhiteDart 8 mm, White
-
23293730042 DartDart
-
24390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
26518326972 Front MemberFront Member
-
27518325114 Upper Column SupportUpper Column Support
-
28518325115 Center Column SupportCenter Column Support
-
31518326559 Rear MemberRear Member
-
33518325925 Front Suspension SupportFront Suspension Support
-
36518325946 S ModuleS Module
-
45518327133 Driven Pulley SupportDriven Pulley Support
